Advanced DC Parameter Testing for Zinc Oxide Surge Arresters: Technical Insights into ZX-MOA Analyzer
Zinc Oxide Surge Arresters (MOA) are critical components in modern power systems, protecting equipment from transient overvoltages. However, internal defects such as poor contact between valve discs can compromise their performance. The ZX-MOA DC Parameter Analyzer addresses this challenge by providing precise measurements of two key parameters: the DC reference voltage (U1mA) and leakage current at 0.75 U1mA. This article explores the technical principles, design innovations, and practical applications of this device, offering insights for power engineers and technicians.
1. Technical Principles and Operational Mechanism
Closed-Loop Control System
The ZX-MOA analyzer employs a closed-loop feedback mechanism to achieve high-precision voltage and current regulation. When measuring U1mA, the device dynamically adjusts the output voltage until the leakage current stabilizes at 1 mA. Subsequently, it automatically calculates 75% of U1mA and measures the corresponding leakage current. This process, completed within 15 seconds, eliminates manual intervention and reduces human error.
Key Components
High-Voltage DC Source: Generates up to 30 kV with ±1% voltage accuracy, ensuring compliance with IEC 60099-4 standards.
Microcontroller-Based Measurement Unit: Integrates analog-to-digital converters (ADCs) with 16-bit resolution for current sampling (0–1000 μA range).
Environmental Compensation: Built-in temperature and humidity sensors automatically correct measurements under varying conditions (0–40°C, ≤85% RH).
2. Design Innovations for Field Applications
Compact and Rugged Architecture

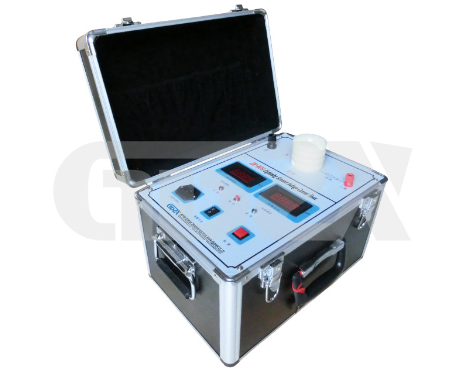

The ZX-MOA analyzer combines three subsystems—high-voltage generation, measurement, and control—into a single 10 kg portable unit. Its IP54-rated enclosure ensures durability in harsh substation environments.
Simplified Workflow
One-Button Operation: Initiates a full test sequence, including self-check, voltage ramp-up, and data logging.
Smart Safety Features: Includes ground continuity monitoring and arc suppression circuits to protect operators during high-voltage testing.
3. Performance Validation and Case Studies
Laboratory Calibration
Third-party tests demonstrate linearity errors below 0.8% across the 5–30 kV range, with repeatability within ±0.5% for U1mA measurements. The device's anti-interference capability exceeds 60 dB at 50 Hz, critical for noisy substation environments.
Field Applications
Grid Maintenance: A regional utility reduced MOA failure rates by 42% after implementing annual testing with ZX-MOA units across 50 substations.
Manufacturing QC: A surge arrester factory achieved 0.1% production consistency by integrating the analyzer into their final inspection process.
4. Technical Specifications and Limitations
Critical Parameters
Parameter | Specification | Industry Benchmark |
Voltage Range | 0–30 kV (±1%) | IEC 60099-4: 0–40 kV |
Current Accuracy | ±2 μA at 0–1000 μA | EN 50522: ±5 μA |
Altitude | <1000 m (derating above) | IEEE C62.11: <2000 m |
Operational Constraints
Requires stable AC input (220 V ±10%, THD <5%).
Not suitable for multi-column MOA arrays without external current summation.
5. Maintenance and Best Practices
Calibration: Annual recalibration using NIST-traceable reference dividers.
Cleaning: Use compressed air to remove conductive dust from HV terminals.
Data Management: Export test results via USB for trend analysis using proprietary software (e.g., MOA Health Index algorithms).
The ZX-MOA DC Parameter Analyzer represents a significant advancement in surge arrester diagnostics. Its combination of automated testing, precision engineering, and rugged design makes it indispensable for both field maintenance and quality control. As power grids increasingly adopt smart grid technologies, such devices will play a pivotal role in predictive maintenance strategies. Future developments may integrate wireless connectivity and AI-driven defect classification to further enhance its capabilities.
