FRD Series Wired High-Voltage Phase Verification Device: Technical Specification

Time:2025-04-10 Number:3

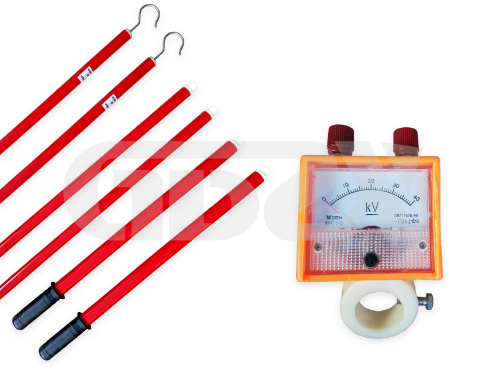

The FRD Series Wired High-Voltage Phase Verification Device is engineered to address the critical demands of phase verification, voltage detection, and ground fault identification in power systems. As a routine yet hazardous task in electrical operations, phase verification requires precision, reliability, and safety. Utilizing a metal film resistor voltage reduction principle, the FRD Series provides visual indication via analog meter pointers to distinguish between in-phase and out-of-phase conditions across voltage levels ranging from 3kV to 110kV, with an additional low-voltage variant for 380V applications. Its compact design, combined with robust functionality, makes it indispensable for field technicians.

Key Features


1.Dual-Mode Phase Indication: Audible alerts (voice prompts) and visual signals (LED indicators) activate during phase verification, ensuring unambiguous identification of in-phase (0kV indication) and out-of-phase (matching system voltage) conditions.

2.Pre-Operational Self-Test: Allows validation of device functionality using low-voltage inputs (220V/380V), ensuring readiness before high-voltage deployment.

3.Automatic Power Management: Integrated smart circuitry activates the device during use and powers it down during idle periods, optimizing energy efficiency and battery longevity.

Technical Specifications
The FRD Series offers six voltage-specific configurations, with performance parameters detailed below:

Rated Voltage (kV)

3

6

10

35

66

110

Weight (kg)

1.4

1.4

1.4

2.0

2.6

3.2

In-Phase Indication (kV)

0

0

0

<8

<10

<20

Out-of-Phase Indication (kV)

3

6

10

35

66

110

Total Length (m)

1.2

1.3

1.3

2.0

3.0

3.5

Insulation Rod Withstand Voltage (kV)

10

30

42

105

200

330

Functional Advantages

1.High-Voltage Compatibility: Engineered for systems up to 110kV, with insulation rods meeting or exceeding IEC standards for dielectric strength (e.g., 330kV withstand voltage for 110kV models).

2.Ergonomic Design: Lightweight construction (1.4–3.2kg) and adjustable telescopic insulation rods enhance portability and operational flexibility.

3.Multi-Functional Utility: Beyond phase verification, the device supports live-line voltage detection and ground fault localization, reducing the need for additional tools.

Safety and Reliability

1.Insulation Integrity: Epoxy resin-coated insulation rods provide high mechanical strength and resistance to environmental degradation.

2.Fail-Safe Design: Non-contact measurement minimizes exposure to live components, while automatic power-off prevents accidental discharge.

Applications and Compatibility
The FRD Series is ideal for:

1.Phase synchronization during grid interconnection or transformer commissioning.

2.Routine maintenance of transmission lines, substations, and distribution networks.

3.Fault diagnosis in grounded or short-circuit scenarios.
The FRD Series combines precision measurement, operational safety, and user-centric design to streamline high-voltage phase verification tasks. Its adherence to rigorous technical standards ensures reliability in diverse electrical environments, making it a critical tool for power system technicians.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
