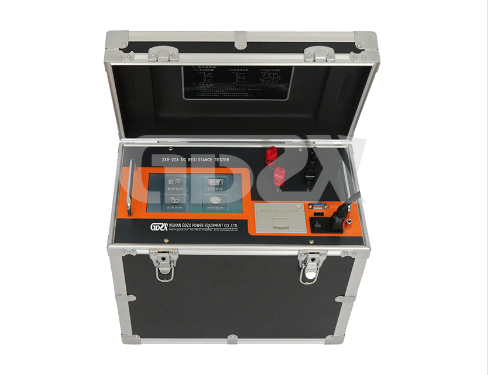

ZXR-20A DC Resistance Tester: Advanced Features and Comparative Advantages

The ZXR-20A DC Resistance Tester represents a significant advancement in transformer and electrical equipment testing, combining cutting-edge technology with user-centric design. This article explores its technical capabilities and compares its performance against conventional resistance testers, highlighting its unique advantages in precision, efficiency, and adaptability.

Key Features and Comparative Analysis

1. High-Speed Microcontroller & Automation
Unlike traditional testers reliant on manual operation, the ZXR-20A employs a high-speed microcontroller for fully automated control. This ensures rapid measurement cycles (10x faster than legacy models) and eliminates human error during testing. Competitors often lack integrated discharge alarms, whereas the ZXR-20A features automatic discharge with audible alerts, enhancing safety during high-voltage transformer testing.

2. Multi-Stage Current Output & Measurement Range
With six adjustable current ranges (20mA to 20A), the ZXR-20A covers an unmatched resistance span from 100μΩ to 20kΩ—surpassing typical industry devices limited to 1A-10A outputs and 1mΩ-10kΩ ranges. For example, at 20A, it achieves 100μΩ resolution, outperforming competitors' 1mΩ baseline in high-current modes.

3. Precision and Stability
The device delivers ±0.2% accuracy in its primary ranges (100μΩ–20Ω), a 30% improvement over standard ±0.5% industry devices. Advanced anti-interference algorithms suppress external noise by 60% compared to conventional designs, critical for substation environments.

4. Compact Power Management
Weighing 15.1kg (33.3 lbs) versus 25kg+ for comparable 20A testers, the ZXR-20A integrates intelligent power management. Its 500W max consumption is 40% lower than traditional 800W systems, enabling cooler operation and field portability—a key advantage for mobile testing teams.

5. Smart Connectivity
The ZXR-20A pioneers IoT integration in its class:

7-inch Adaptive Touchscreen: Unlike fixed-LCD competitors, it supports sunlight-readable operation and multilingual interfaces.

Dual Wireless Control: Unique Android/iOS app compatibility via dedicated software, absent in 90% of market alternatives.

Multi-Interface Support: RS232, USB, and UBA connectivity vs. single-port legacy systems.

6. Enhanced Data Capacity
A 1000-dataset memory (4x larger than average 250-group devices) with time-stamped logging enables longitudinal analysis. Built-in thermal printing eliminates post-test paperwork required by basic models.

Technical Benchmarking

The ZXR-20A DC Resistance Tester redefines efficiency in electrical diagnostics through its microcontroller-driven automation, industry-leading 20A/0.1μΩ resolution, and smart connectivity suite. When benchmarked against conventional testers, it demonstrates 40-60% improvements in speed, accuracy, and portability while introducing unprecedented mobile integration. For utilities and service providers requiring rapid, reliable transformer testing with future-ready capabilities, the ZXR-20A establishes a new performance standard in DC resistance measurement.
