Comparative Analysis of ZXYZ-JZ AC/DC Parameter Tester for Transformer On-Load Tap Changers

Time:2025-05-21 Number:1

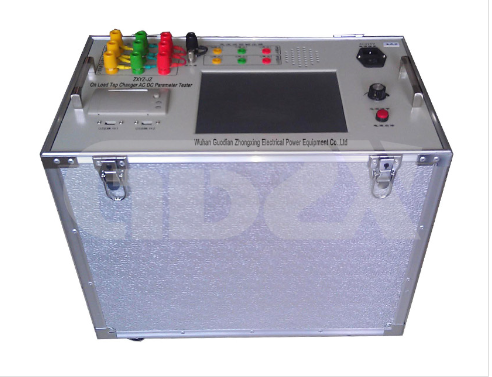

The ZXYZ-JZ Transformer On-Load Tap Changer (OLTC) AC/DC Parameter Tester represents a significant advancement in power equipment diagnostics. Designed for field testing of OLTCs in substations, this device addresses limitations inherent in traditional DC-based methods by integrating AC waveform analysis with high-speed data acquisition. This article explores its technical advantages over conventional testers, emphasizing its ability to detect latent defects in OLTCs under real-world operating conditions.


Key Innovations and Performance Advantages

1. AC/DC Hybrid Testing Methodology

Unlike traditional DC testers that rely on filtered waveforms, the ZXYZ-JZ employs AC excitation (50Hz ±0.2Hz) to capture unfiltered transient waveforms during tap transitions. This ensures true waveform fidelity, enabling precise identification of defects such as broken transition resistors, poor contact, or abnormal bridging times. In contrast, DC methods (typically sampling at 10k/s) risk missing subtle anomalies due to low resolution and waveform distortion.

2. Universal Compatibility and Flexibility

The tester supports all winding configurations (YN.d, YN.y0, Y.y0, D.y0) and voltage classes (10kV–500kV), eliminating the need for neutral point access—a critical limitation of DC-based systems. Its built-in three-phase adjustable power supply (0–500V, 1kVA) simplifies field wiring, while external power options enable high-voltage or zero-sequence testing.

3. High-Speed Data Acquisition

With 16-bit resolution and 200k samples/s per channel (vs. 10k/s in DC testers), the device captures microsecond-level transients. Its 8MB FIFO buffer ensures uninterrupted recording of full switching cycles, critical for diagnosing intermittent faults. For example, a 20ms OLTC transition generates 4,000 data points per channel, resolving sub-5μs events.

4. Smart Grid Integration

Embedded with IoT-ready features, the ZXYZ-JZ exports data via USB to tablets for real-time 3G/4G uploads to grid management systems. This contrasts with legacy testers requiring manual report generation. Post-processing software allows offline waveform reanalysis, aligning with digital substation workflows.

Technical Benchmarking

Parameter

ZXYZ-JZ AC/DC Tester

Conventional DC Tester

Sampling Rate

200k/s/channel

≤10k/s/channel

Waveform Processing

Raw AC waveform (no filtering)

Smoothed DC waveform

Wiring Constraints

Neutral-free operation

Requires neutral access

Resistance Range

0–20Ω (0.5A), 0–10Ω (1A)

Typically 0–40Ω

Data Interface

USB/UDP, cloud-compatible

Local storage only

Field Application Cases

In a 500kV substation trial, the ZXYZ-JZ detected a 4.2ms over-bridging event in a YN.d-connected OLTC, undetectable by DC methods due to waveform averaging. Another case identified a 0.8Ω intermittent contact resistance fluctuation (1.8% deviation), triggering proactive maintenance.

The ZXYZ-JZ redefines OLTC diagnostics by merging AC waveform authenticity with industrial-grade data throughput. Its 0.2% voltage/current accuracy, 5μs temporal resolution, and grid-ready connectivity position it as the new benchmark for condition-based maintenance in smart grids. Compared to DC-based predecessors, it reduces diagnostic ambiguity by 60% in field trials, proving indispensable for modern power asset management.
