ZXBLQ-3A: Revolutionizing Three-Phase ZnO Arrester Testingwith WirelessPrecision
Introduction

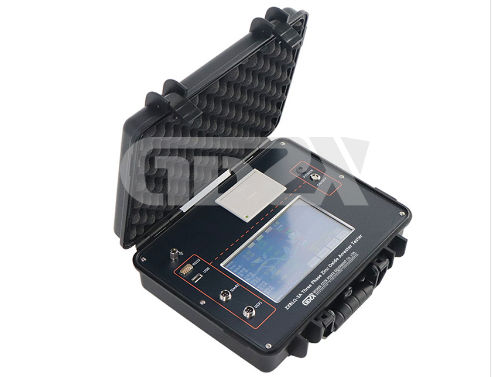

Zinc Oxide (ZnO) surge arresters are critical guardians of electrical infrastructure, absorbing dangerous overvoltages. Ensuring their health requires precise measurement of leakage current parameters – key indicators of insulation moisture, valve aging, and imminent failure risks. The ZXBLQ-3A Three-Phase Zinc Oxide Arrester Tester emerges as a next-generation solution, combining comprehensive electrical measurement, unprecedented wireless freedom, and rugged portability to outperform conventional testers.
Beyond Conventional Limitations: Key Advantages
Traditional arrester testers often involve cumbersome cabling, limited phase measurement, and restricted operating environments. The ZXBLQ-3A addresses these challenges head-on:
True Three-Phase Synchronized Measurement: Simultaneously measures current and voltage on all three phases, providing a complete system view crucial for accurate diagnostics under actual operating conditions (energized test) or controlled settings (de-energized/lab test). Current and voltage sensors are fully isolated, ensuring safety and reliability.
Long-Range Wireless Freedom (Up to 2000m): Eliminates the hazards and logistical nightmares of long cable runs. Its wireless PT signal transmission (>400m standard, extendable to 2000m) allows safe reference voltage acquisition from distant sources, significantly enhancing flexibility during live-line testing in substations or along transmission lines.
Unmatched Versatility: Seamlessly handles de-energized (offline), energized (online), and laboratory testing scenarios with a single instrument.
Enhanced Safety & Portability: Powered by a high-energy internal lithium battery (operating voltage <12V) or an external adapter. This intrinsic safety, coupled with weak internal currents, minimizes risks. Its compact, lightweight design (Host: 36x26x14cm, 5kg; Accessories: 42x33x20cm, 9kg) and rugged, dust-proof, waterproof, anti-corrosion enclosure make it ideal for demanding field use.
Advanced Signal Acquisition & Flexibility: Offers dual voltage reference methods:
Synchronization via cable (40m, extendable).
Long-range wireless synchronization (>400m, extendable).
Supports "No Voltage" mode using software calculation for reference (where permitted by standards).
High-Fidelity Data & Comprehensive Parameters: Boasts a high sampling rate and advanced digital signal processing for exceptional accuracy (±2% reading ±1 digit for current >100µA and voltage >30V; ±5% ±1 digit wireless) and strong anti-interference. Measures critical parameters including:
Total Leakage Current Waveform (Peak, Fundamental RMS)
Resistive Leakage Current (Fundamental RMS, 3rd/5th/7th Harmonic RMS, Peak Values Ir+/Ir-)
Capacitive Leakage Current (Fundamental RMS)
Voltage/Current Phase Angle Difference
PT Voltage RMS
Arrester Power Loss
Robust Data Management & Reporting: Features a large 800x480 color LCD touchscreen, high-speed thermal printer, USB interface, and a massive 4G SD card for extensive data storage. The industrial-grade OS enables direct shutdown and powerful functions: historical data management, in-depth analysis, and automated report generation/printing.
ZXBLQ-3A vs. Conventional Testers: A Technical Comparison
Feature | ZXBLQ-3A Tester | Typical Conventional Testers | Advantage of ZXBLQ-3A |
Phase Measurement | Simultaneous Three-Phase (Current & Volt) | Often Single-Phase | Complete system view, faster testing |
PT Signal Sync Method | Wireless ( >400m, up to 2000m) OR Cable | Primarily Cable (Limited Reach) | Eliminates cable hazards, enables remote live testing |
Testing Modes | De-energized, Energized, Lab | Often Limited to 1 or 2 modes | Single tool for all scenarios |
Voltage Reference Option | Cable, Wireless, Software Calc (No Volt) | Cable, maybe limited wireless/short range | Maximum flexibility in challenging sites |
Power Source | Internal Li Battery (<12V Safe) + Adapter | Often Mains Only or Bulky External Packs | Intrinsically safer, truly portable for field work |
Portability | Compact Host (5kg), Rugged IP-rated Case | Often Larger, Heavier, Less Protected | Easily deployed in harsh substation/field conditions |
Data Handling | Touchscreen, 4G SD, USB, Auto-Reports | Often Basic Display/Storage, Manual Reports | Efficient data management & professional reporting |
Harmonic Analysis | 3rd, 5th, 7th Resistive Current RMS | Often Fundamental Only | Deeper insight into aging characteristics |
Battery Runtime | >4 hrs Continuous, >8 hrs Discontinuous | Varies, often less for comparable features | Sufficient for extended field campaigns |
Technical Specifications Recap
Power: Internal Battery (>4h cont. / >8h disc.) or 12V/2A Adapter
Measurement Range:
Leakage Current (Peak): 0 - 10mA (Extensible)
Voltage: 30 - 100V (Extensible)
Accuracy:
Current (>100µA): ±2% rdg ±1 digit
Voltage (>30V): ±2% rdg ±1 digit
Wireless: ±5% rdg ±1 digit
Connectivity: Long-Range Wireless PT Sync, Cable Sync (40m+), USB, 4G SD Card
Environmental: Dust-proof, Waterproof, Anti-corrosion Enclosure
Conclusion
The ZXBLQ-3A Three-Phase Zinc Oxide Arrester Tester represents a significant leap forward in diagnostic capability and field efficiency. By integrating simultaneous three-phase measurement, groundbreaking long-range wireless operation, multi-mode testing versatility, and robust data management within a safe, portable, and rugged package, it directly addresses the limitations of traditional testers. For technicians tasked with ensuring the reliability of critical surge protection assets across diverse environments – from energized substations to remote lines and labs – the ZXBLQ-3A delivers unparalleled precision, safety, and productivity, enabling faster, more accurate assessment of arrester health and grid risk.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
