Modernizing Arrester Testing: The ZXJS-I Handheld Advantage

Time:2025-08-01 Number:1

For technicians maintaining power systems, ensuring the integrity of surge arresters is non-negotiable. These critical components shield expensive equipment from damaging voltage spikes. Traditional methods for verifying arrester counters often involved cumbersome, heavy test sets – a significant burden in the field. The ZXJS-I Handheld Arrester Counter Tester represents a deliberate shift, offering a powerful, portable solution designed explicitly for the realities of field work.


The Traditional Challenge: Bulk and Inconvenience
Legacy arrester counter testers were frequently characterized by:

1.Significant Size and Weight: Requiring dedicated carrying cases or trolleys, hindering mobility, especially on substation walks or climbs.

2.Complex Setup: Often needing AC power sources or complex cabling, adding time and logistical hurdles to simple verification tasks.

3.Operator Fatigue: Hefting heavy equipment for extended periods or in awkward positions increased fatigue and potential safety risks.

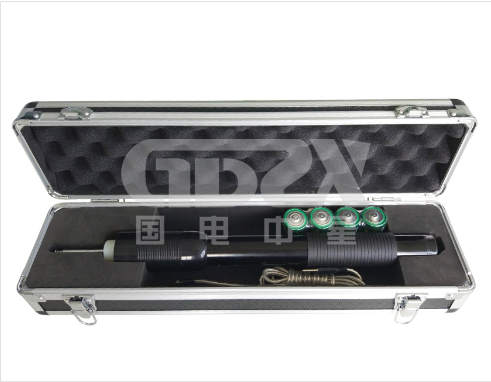

The ZXJS-I Solution: Engineered for Efficiency
Developed in direct response to utility technician needs, the ZXJS-I fundamentally changes the testing paradigm:

1.Unmatched Portability:

Compact Geometry: Main body φ36mm x 375mm; enlarged head φ50mm x 100mm for ergonomic handling.

Lightweight Design: At only 780g (under 1.7 lbs), it's easily operated with one hand, carried in a tool belt, or stored in a standard tool bag.

Self-Contained Power: Powered by readily available DC 6V (utilizing standard No. 1 batteries), eliminating the need for external AC power or generators onsite.

2.Optimized Field Performance:

Safe & Rapid Testing: Delivers the necessary high voltage (800V - 1600V output) safely and efficiently to trigger arrester counters, enabling quick verification checks.

Accurate Results: Designed to provide reliable pass/fail indications or counter functionality checks crucial for maintenance decisions.

Simplified Operation: The handheld nature and straightforward design minimize setup time and complexity, allowing technicians to focus on the task.

Technical Specifications: Power in a Compact Form

Parameter

Specification

Field Implication

Geometry

Body: φ36mm x 375mm

Fits easily in hand or toolbag


Head: φ50mm x 100mm

Ergonomic grip, clear contact point

Weight

780g

Minimal operator fatigue, easy carrying

Power Source

DC 6V (1.5V No. 1 Batteries x 4)

True portability, no external power needed

Output Voltage

800V - 1600V

Adequate range to reliably operate common arrester counters

Key Advantage

Handheld Portability

Replaces bulky, heavy traditional test sets

Contrasting Approaches: A Clear Evolution

The difference between traditional methods and the ZXJS-I approach is stark:

1.Deployment: Instead of transporting a heavy case, the technician simply carries the ZXJS-I like a large tool.

2.Setup: Seconds to power on vs. minutes unpacking, connecting cables, and finding power.

3.Maneuverability: Effortless testing on crowded racks, overhead arresters, or confined spaces compared to wrestling with bulky equipment.

4.Technician Burden: Significant reduction in physical strain and logistical overhead.

Implementation and Best Practices

1.Storage: Keep spare batteries available; store the tester securely to prevent damage to the output head.

2.Calibration: Adhere to recommended calibration intervals to maintain measurement accuracy and safety.

3.Safety: Always follow standard high-voltage safety procedures (appropriate PPE, verifying de-energization where applicable, safe discharge). While compact, it generates significant voltage.

4.Procedure: Integrate the ZXJS-I into standard arrester inspection routines for rapid counter functionality checks.

Conclusion
The ZXJS-I Handheld Arrester Counter Tester is more than just a new tool; it's a significant ergonomic and efficiency upgrade for power system technicians. By directly addressing the limitations of traditional test sets – specifically bulk, weight, and power logistics – it enables faster, safer, and less burdensome verification of surge arrester counter operation. Its carefully engineered combination of sufficient high-voltage output (800-1600V), genuine battery-powered portability (780g, DC 6V), and robust construction makes it an indispensable instrument for modern power system maintenance crews, streamlining a critical task without compromising on performance or safety. This evolution in form factor directly translates to enhanced productivity in the field.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
