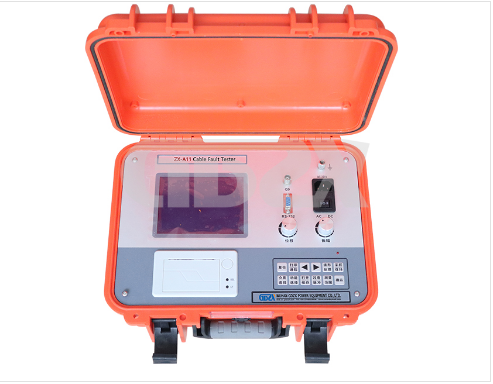

Compact Power: The ZX-A11 Cable Fault Test Set & theEvolutionofField Diagnostics

Time:2025-08-07 Number:1

For technicians battling elusive cable faults – from underground power lines to critical coaxial feeds – speed, accuracy, and portability are paramount. The ZX-A11 Cable Fault Test Set emerges as a significant contender, redefining expectations for field-ready diagnostic tools, particularly when compared to traditional, bulkier Time Domain Reflectometers (TDRs).


Beyond the Basic TDR: Addressing the Fault Spectrum

While standard TDRs excel at locating opens, shorts, and low-resistance faults in simpler cables, they often stumble with the complexities of real-world power and telecom infrastructure. High-resistance leaks, intermittent flashovers, and faults in varied cable types (power, coaxial, street lighting, local telecom) present significant challenges. This is where the ZX-A11 distinguishes itself.

Key Advantages of the ZX-A11

1.Unmatched Portability & Integration (vs. Traditional Bench Units):

Size & Weight: At a mere 0.9kg and 210x165x45mm, the ZX-A11 is arguably the lightest and most compact professional-grade cable fault locator available. It slips easily into a tool bag, eliminating the need for cumbersome cases associated with older generation test sets. Traditional units can easily weigh 5-10kg or more.

Modern Control: Controlled via a standard Industrial Laptop (Windows OS) over RS232, it leverages familiar computing power. This replaces the often proprietary or limited interfaces found on older dedicated units.

2.Enhanced Analysis & Workflow Automation:

Super Cable Management System: This integrated software goes beyond simple waveform display. It manages cable records, test data, and crucially, automatically generates professional test reports, saving technicians significant post-test administration time – a feature rarely found in basic TDRs or even many traditional fault locators without dedicated PC software.

Advanced Waveform Interpretation: Offers multiple analysis methods: Single/Multiple Pulse, Manual/Automatic, and critically, an Online Expert Method. This provides guided analysis, especially beneficial for complex or ambiguous faults like high-resistance leaks or flashovers, reducing reliance on solely technician experience compared to simpler devices.

3.Robust Technical Performance:

High Resolution: A 100MHz sampling frequency delivers a minimum resolution of 0.5m (assuming velocity factor 100m/μs), enabling precise fault pinpointing even in complex cable runs.

Comprehensive Fault Detection: Employs both Flashover (for high resistance faults) and Low-Voltage Pulse methods, covering the full spectrum: low resistance, shorts, opens (wire breaks), high resistance leaks, and flashover faults across diverse cable types (power, coax, telecom).

Continuous Capture: Automatic continuous sampling ensures no critical discharge waveform, indicative of a flashover fault, is missed during testing.

Range & Accuracy: Covers 15m to 30km with a rough measurement absolute error of ±10m or ±1% relative error, performance comparable to much larger traditional units.

4.Field Practicality:

Simple Power: Powered via USB 3.0 or standard phone USB charger, eliminating the need for heavy internal batteries or finding specific power outlets common in older test sets. A power bank suffices.

Integrated Speed Test: Includes dedicated cable propagation velocity (VOP) measurement, essential for accurate distance calculations, often a separate step with basic tools.

Comparison: ZX-A11 vs. Traditional Fault Locators/TDRs

Feature

Traditional TDR / Basic Fault Locator

ZX-A11 Cable Fault Test Set

Advantage for ZX-A11

Portability

Often bulky (5-10kg+), requires dedicated case

Extremely Light (0.9kg), Compact

Ease of transport, use in confined spaces

Control

Dedicated (often limited) interface/keypad

Windows Laptop via RS232

Familiar OS, larger display, flexibility

Reporting

Manual note-taking, separate report generation

Automated Report Generation

Huge time savings, professionalism

Fault Range

Typically good for opens/shorts/low-R

Full Range (Low-R to Flashover/High-R)

Solves tougher, more common field faults

Analysis Aid

Relies heavily on technician expertise

Online Expert Mode, Multiple Methods

Faster diagnosis, reduced ambiguity

Power

Often heavy internal batteries/AC adapters

Standard USB Charging

Convenience, use with power banks

Cable Mgmt

None or very basic

Integrated Database & Management

Organization, historical data tracking

Conclusion: A Step Forward in Field Diagnostics

The ZX-A11 represents a significant evolution in cable fault location technology. It successfully bridges the gap between the high diagnostic capability required for complex power and telecom cable faults and the critical need for true portability and user-friendly workflow in the field. While traditional, bulkier test sets might offer higher pulse energies for extremely long or difficult faults, the ZX-A11's combination of comprehensive fault detection (especially high-resistance), advanced Windows-based analysis with expert guidance, automated reporting, and unparalleled compactness makes it an exceptionally powerful and practical tool for the vast majority of cable fault scenarios technicians encounter daily. It empowers technicians to diagnose faster, report easier, and carry less – a compelling advancement in field cable maintenance.
