High-Precision ZX1030C Voltage Monitor Calibration System

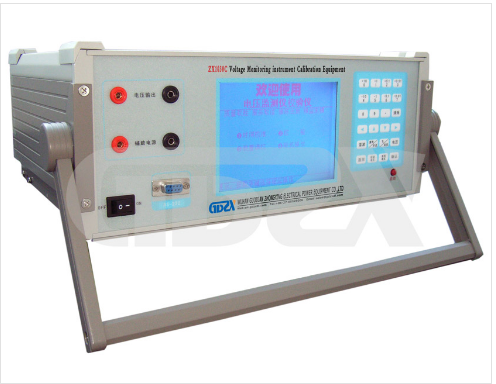

In the field of power quality management, accurate calibration of voltage monitors is essential to ensure grid stability and compliance with power standards. The ZX1030C Voltage Monitor Calibration Device represents a significant technological advancement, offering comprehensive testing capabilities for statistical and recording voltage monitors up to class 0.2 and below.

Compared to traditional calibration equipment, which often requires multiple instruments and complex wiring, the ZX1030C simplifies the process with only four terminal connections and an intuitive user interface. Its high integration and intelligent features make it a superior solution for modern calibration tasks.

Key Technical Advantages:

1. DSP-Based Signal Processing: Unlike conventional analog-based systems, the ZX1030C utilizes digital signal processing (DSP) for stable output and precise data acquisition, significantly improving reliability and repeatability.

2. Enhanced Efficiency: The device supports direct reading of standard values and calibration errors, reducing manual calculation time and potential human errors—a notable improvement over older systems that require external reference meters.

3. High Resolution and Accuracy: With voltage adjustment resolution up to 0.01% UN and accuracy of 0.05%, it outperforms many legacy calibrators that typically offer only 0.05% resolution and 0.1% accuracy.

4. Integrated Harmonic Testing: The ZX1030C can generate harmonics from the 2nd to the 31st order at amplitudes of 0–20%, eliminating the need for external harmonic generators—a common limitation in earlier calibration setups.

5. Data Management Capabilities: Equipped with non-volatile memory for storing raw data from 250 tested devices and an RS-232 interface for PC connectivity, it enables automated calibration and data management, a feature rarely found in traditional calibrators.

6. Robust Design: Subjected to overload, shock, misuse, and high-temperature aging tests, the device ensures exceptional reliability in harsh operational environments.

Technical Specifications:

• Voltage Output Ranges: 57.7V, 100V, 220V, 380V

• Voltage Adjustment: 0–120% with 0.01% resolution

• Output Capacity: 30VA

• Frequency Range: 45–65 Hz ±0.01Hz

• THD: <0.2% (sinusoidal output)

• Stability: 0.01%/min

• Weight: 8kg; Dimensions: 325×280×135mm

• Power Supply: 220V ±10%, 50Hz ±5%

Conclusion:
The ZX1030C sets a new benchmark in voltage monitor calibration by combining high precision, user-friendly operation, and advanced functionalities. Its ability to perform multiple tests—including accuracy, sensitivity, statistical error rate, timing, and harmonic analysis—within a single compact unit makes it an ideal choice for technicians seeking to enhance productivity and accuracy in power device calibration.
