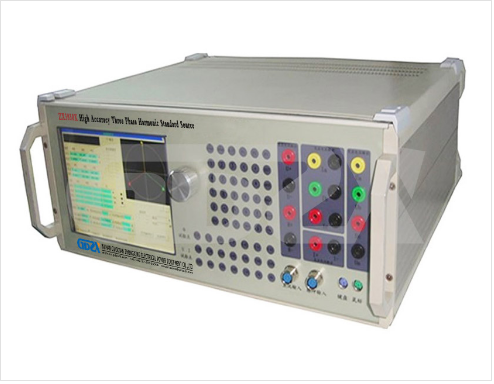

Precision in Power Testing: The ZX3030X Harmonic Standard Source

In the realm of electrical power system testing and calibration, the accuracy, stability, and versatility of a standard source are paramount. The ZX3030X High Accuracy Three-Phase Harmonic Standard Source stands out as a superior instrument, offering a combination of features and specifications that meet the rigorous demands of modern power quality analysis, meter calibration, and protective relay testing. This article provides a technical overview of the ZX3030X, highlighting its key advantages through comparisons with typical standard source capabilities.

Unmatched Output Accuracy and Purity

A fundamental requirement for a standard source is the purity and accuracy of its fundamental waveform. The ZX3030X excels here, capable of generating a pure sinusoidal signal with a remarkably low total harmonic distortion (THD) representative value of 0.03%. In contrast, many standard sources in its class often exhibit THD figures above 0.1%. This purity ensures that when harmonics are intentionally superimposed for testing, the results are not skewed by the source's inherent noise.

Its voltage and output accuracy are specified at better than ±0.05% of Reading (RG), with a stability of ±0.01%RG per minute. This level of precision, coupled with an excellent temperature stability coefficient (<1 ppm/°C), guarantees reliable performance even in varying environmental conditions, a critical factor for field testing compared to lab-bound, less stable units.

Advanced Harmonic Generation and Frequency Control

The ability to accurately overlay harmonics on a fundamental wave is a core function for power quality instrument calibration. The ZX3030X is specifically designed for high-precision harmonic output. Furthermore, its frequency adjustment range of 40 Hz to 65 Hz with a resolution and accuracy of 0.002 Hz provides exceptional control for testing frequency-dependent devices. A distinctive feature is its dual frequency reference system: phases A and B share one reference while phase C has an independent one. This allows for the simulation of complex grid conditions, such as phase imbalances or specific fault scenarios, which is a capability often missing in simpler three-phase sources.

Superior Load Handling and Dynamic Response

A significant challenge for many power sources is maintaining stability under different load types. The ZX3030X demonstrates robust performance, capable of driving capacitive, inductive, and resistive loads with a full load regulation rate better than 0.01%RG. Its transient response is exceptionally fast, with a full load regulation time of less than 1 ms. This is achieved through a hardware-based PID control loop, ensuring that sudden load changes have a negligible impact on the output. Compared to sources that rely solely on software PID, the ZX3030X offers a much faster and more stable response, which is crucial for testing dynamic load responses in energy meters and relays.

Comprehensive Capabilities for Modern Applications

The ZX3030X is built around a powerful 32-bit MCU and DSP processor architecture, providing the computational muscle for complex waveform generation and real-time control. It supports an open communication protocol via its RS232 interface, facilitating seamless integration into automated test systems for the verification of devices like RTUs, FTUs, and power management terminals. This is a significant advantage for laboratories and manufacturers aiming to automate their calibration processes, a task that can be cumbersome with devices using proprietary or closed protocols.

Key Technical Indicators at a Glance

1.Voltage Output: 0-420V per phase, with auto-ranging gears. Accuracy: <±0.05%RG.

2.Current Output: 1mA-20A, with auto-ranging gears. Accuracy: <±0.05%RG.

3.Phase Adjustment: 0-359.99° with a high accuracy of ±0.03°.

4.Power Factor Simulation: Range from -1 to +1 with an accuracy of 0.0005.

5.Protection: Comprehensive suite including over-current, over-voltage, and short-circuit protection.

Conclusion

The ZX3030X High Accuracy Three-Phase Harmonic Standard Source establishes a high benchmark for precision power testing equipment. When compared to conventional standard sources, it offers superior waveform purity, exceptional accuracy and stability, faster dynamic response due to hardware PID, and advanced features like independent phase control. Its design directly addresses the evolving needs of the industry, from calibrating sophisticated smart meters to testing protective relays and analyzing power quality. For technicians and engineers seeking a reliable, versatile, and highly accurate instrument for both laboratory and field applications, the ZX3030X presents a compelling and technically advanced solution.
