GM-5kV Megohmmeter: A Technical Overview

Introduction

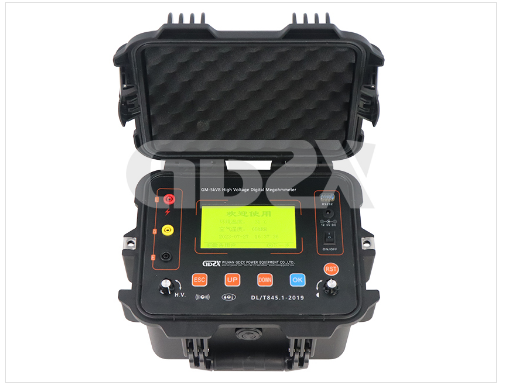

      For maintenance and commissioning engineers working in high-voltage environments, accurate insulation resistance (IR) measurement is critical for assessing equipment health. Traditional megohmmeters, or "meggers," often fall short in modern, interference-heavy substations or when testing large apparatus like power transformers and long-distance cables. The GM-5kV High Voltage Digital Megohmmeter is engineered to address these challenges directly. This article provides a technical analysis of the GM-5kV, contrasting its capabilities with conventional tools and highlighting its advanced features.

Key Advantages Over Conventional Megohmmeters

1.Superior Interference Immunity: A significant limitation of many digital instruments is their susceptibility to electromagnetic interference (EMI) in switchyards and substations. The GM-5kV is specifically designed for "strong electromagnetic interference environments," ensuring stable and reliable readings where other meters might fail or display erratic values. This makes it indispensable for field testing on energized sites.

2.Advanced Automated Diagnostics: While a basic megger provides a simple IR value, the GM-5kV automates complex diagnostic procedures. It can automatically measure and record resistance values at 15 seconds (R15), 60 seconds (R60), and 600 seconds (R600). From these, it calculates the Dielectric Absorption Ratio (DAR) and Polarization Index (PI) – key indicators of insulation condition – without any manual calculation or timing errors from the technician. This is a major step up from manual stopwatch-based methods.

3.Enhanced Range and Precision: With a staggering measurement range up to 10 TΩ and multiple voltage outputs (50V to 5kV), the GM-5kV covers a vast spectrum of testing scenarios, from low-voltage wiring to high-voltage power apparatus. Its basic error in the first half of its range is ±(5%·Rx + 1 digit), offering high accuracy. The combination of a digital readout and an analog bar graph provides both precise numerical data and a quick, intuitive visual trend, a feature not found on simpler digital models.

4.Robustness and Data Integrity: The instrument boasts a strong load capacity with a ~5mA short-circuit current, allowing it to charge large capacitive test objects more effectively. Furthermore, it functions as a complete data-logging station. It can store 60 test records with a 20-year data retention period, log ambient temperature and humidity, and features a built-in micro-printer and RS232 interface for immediate reporting. This eliminates the need for manual transcription and its associated risks.

Critical Technical Specifications and Safety

1.Output Voltage: Continuously adjustable from 50V to 5.0kV (±5% accuracy).

2.Measurement Range: 0 to 10 TΩ with auto-ranging.

3.Safety Features: Post-test, the unit automatically discharges stored high-voltage energy within 30 seconds, a crucial safety function. It also features a "dead-man" style timer that alerts the user and prepares to power down after 5 minutes of inactivity. The instrument must be well-grounded before use, as emphasized in the manual, to ensure operator safety.

4.Durability: It is built to withstand harsh conditions, with an operating temperature range of 0°C to +40°C and a robust case designed for field use.

Comparison in Practice

Consider testing a high-voltage power transformer.

1.With a Conventional Megger: An engineer might manually apply voltage, use a stopwatch to take readings at 1 minute and 10 minutes, manually calculate the PI, and record all data on a clipboard. The process is prone to timing and transcription errors.

2.With the GM-5kV Megohmmeter: The technician selects the PI test function and the appropriate voltage. The instrument automatically applies voltage, captures R15, R60, and R600, calculates and displays the DAR and PI, and stores the entire result with a timestamp and environmental data. The report can be printed on-site.

Conclusion：

The GM-5kV High Voltage Digital Megohmmeter represents a significant evolution from basic insulation testers. Its combination of interference immunity, automated diagnostic calculations, a wide measurement range, and integrated data handling makes it a superior tool for technicians responsible for the reliability of critical high-voltage assets. By reducing manual intervention, enhancing accuracy in noisy environments, and enforcing critical safety protocols, it not only improves diagnostic efficiency but also contributes to a higher standard of testing and personnel safety in the field.
