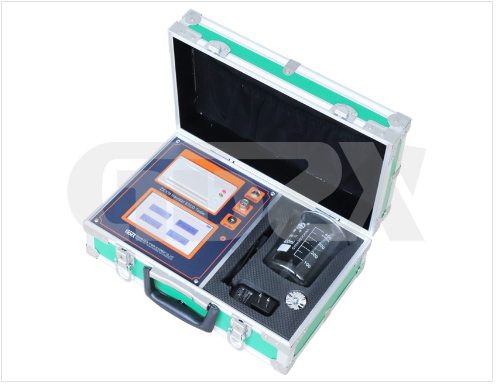

Advanced ESDD Measurement: The ZX-YM Insulator Tester

In the realm of power system maintenance, managing contamination on insulators is critical for preventing flashovers and ensuring grid reliability. The Equivalent Salt Deposit Density (ESDD) has long been the standard metric for assessing contamination levels. While traditional methods for measuring ESDD involve manual sampling, lab-based conductivity measurements, and complex calculations, the ZX-YM Insulator Equivalent Salt Deposit Density Tester represents a significant technological leap, offering a comprehensive and field-ready solution.

Contrast with Traditional Methods

Traditional ESDD measurement is a multi-step, time-consuming process. It requires:

1.Careful Collection: Washing the salt deposits from a known insulator surface area with distilled water.

2.Lab Equipment: Using a separate conductivity meter to measure the solution's conductivity.

3.Temperature Correction: Manually compensating the conductivity reading to a standard temperature (typically 20°C).

Complex Calculation: Applying formulas to convert the corrected conductivity into an ESDD value.

This process is prone to human error, depends on the purity of the cleaning fluid, and delays obtaining critical data. In contrast, the ZX-YM tester integrates all these functions into a single, automated, and portable device, delivering results directly in the field within seconds.

Key Technical Advantages of the ZX-YM Tester

The ZX-YM tester addresses the limitations of traditional methods through its sophisticated design and feature set:

1.High Precision and Wide Range: With an ESDD measurement range from 0.0001 mg/cm² to 9.9999 mg/cm² and a full-range accuracy of ±2%, the device is sensitive enough for light contamination and robust enough for heavily polluted environments. This precision (±0.5°C for temperature, 0.01µs/cm for conductivity) ensures highly reliable data.

2.Automation and Speed: The instrument automates the most critical and error-prone steps. It features automatic temperature compensation, instantly displaying the standard conductivity and ESDD value at 20°C. Its "auto remove salt content" function reduces the strict requirement for ultra-pure water, simplifying field operations. Most notably, it delivers a measurement in approximately 3 seconds, a stark contrast to the 30+ minutes required by manual methods.

3.Enhanced Data Management and Usability: Equipped with a 5-inch color touchscreen, the device can store hundreds of thousands of records. Technicians can browse, delete, or export single records, or perform bulk data management. The ability to export to a USB drive facilitates easy reporting and further analysis, a feature absent in basic measurement tools.

4.Critical Function for Live-Line Maintenance: A standout feature is its ability to automatically convert offline ESDD measurements to equivalent live-line values. This is invaluable for scheduling live-line washing activities and assessing the real-time risk of flashover on energized insulators, directly enhancing operational safety and planning.

5.True Field Portability: Weighing only 2.5kg and powered by a built-in 2600mAh Li-ion battery, the ZX-YM is genuinely portable. It is designed to operate in typical field conditions (0-60°C, <90% humidity), making it suitable for inspections in substations and along transmission lines.

Conclusion：

For technical personnel in the power industry, the ZX-YM Insulator ESDD Tester is more than just a conductivity meter; it is a dedicated, intelligent diagnostic system. By consolidating multiple instruments and complex procedures into a single, robust, and user-friendly package, it drastically improves efficiency, accuracy, and data utility. When compared to traditional, disjointed methods, the ZX-YM tester provides a clear upgrade, enabling faster, more informed decisions for anti-pollution flashover testing and ultimately contributing to higher power system reliability.
