YDQW Gas-Filled Non-PD Test Transformer Specifications
Introduction

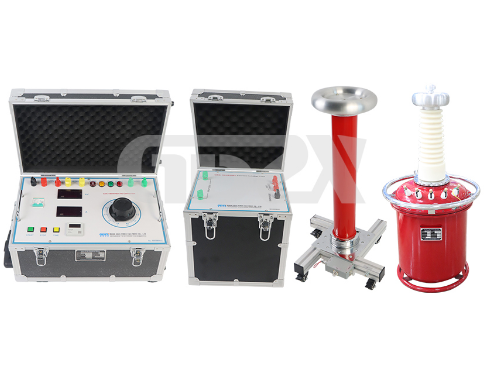

The YDQW series gas-filled non-partial discharge test transformer represents a significant advancement over traditional oil-immersed test transformers. Designed for modern high-voltage testing applications, it offers a lightweight, clean, and highly reliable solution—particularly suited for on-site testing and environments where equipment must be frequently relocated.
Key Features
1.Compact and Lightweight Design
Compared to conventional oil-immersed test transformers of the same rating, the YDQW series is 40%–65% lighter, greatly enhancing portability and ease of handling.
2.Oil-Free and Maintenance-Free Operation
The gas-filled insulation system eliminates oil leakage and contamination, reducing environmental risks and removing the need for regular oil maintenance.
3.Robust Performance in Harsh Conditions
The transformer is designed to operate reliably under varying climatic conditions, enabling stable on-site testing without the need for prolonged standing time.
4.Enhanced Insulation and Low Corona
With superior insulation strength and minimal partial discharge (corona), the YDQW series ensures accurate and interference-free high-voltage testing, improving measurement integrity and safety.
Technical Specifications
Below is a summary of key models and their electrical and physical parameters:
Model | kVA | LV Side (V) | LV Current (A) | HV Side (kV) | HV Current (mA) | Weight (kg) |
1.5/50 | 1.5 | 200 | 7.5 | 50 | 30 | 26 |
3/50 | 3 | 200 | 15 | 50 | 60 | 32 |
5/50 | 5 | 200 | 30 | 50 | 120 | 38 |
10/50 | 10 | 200 | 50 | 50 | 200 | 53 |
15/50 | 15 | 400 | 37.5 | 50 | 300 | 70 |
20/50 | 20 | 400 | 50 | 50 | 400 | 85 |
30/50 | 30 | 400 | 75 | 50 | 600 | 100 |
50/50 | 50 | 400 | 125 | 50 | 1000 | 120 |
10/100 | 10 | 200 | 50 | 100 | 100 | 65 |
15/100 | 15 | 400 | 37.5 | 100 | 150 | 85 |
20/100 | 20 | 400 | 50 | 100 | 200 | 100 |
30/100 | 30 | 400 | 75 | 100 | 300 | 110 |
50/100 | 50 | 400 | 125 | 100 | 500 | 125 |
10/150 | 10 | 200 | 50 | 150 | 66.7 | 90 |
15/150 | 15 | 400 | 37.5 | 150 | 100 | 100 |
20/150 | 20 | 400 | 50 | 150 | 133.3 | 110 |
30/150 | 30 | 400 | 75 | 150 | 200 | 125 |
50/150 | 50 | 400 | 125 | 150 | 333.3 | 140 |
30/200 | 30 | 400 | 75 | 200 | 150 | 160 |
50/200 | 50 | 400 | 125 | 200 | 250 | 180 |
50/250 | 50 | 400 | 125 | 250 | 200 | 230 |
Notes on Parameters
1.Measure °C: Reference temperature for performance validation (typically 500–2500V depending on model).
2.IV %: Impedance voltage percentage.
3.NC %: No-load current percentage.
4.All units are designed to operate with corona levels below 4 pC, ensuring minimal interference during sensitive measurements.
Conclusion
The YDQW gas-filled non-partial discharge test transformer series combines advanced manufacturing techniques with a rugged, eco-friendly design. Its high voltage capability (up to 300kV per unit), reduced weight, and maintenance-free operation make it an ideal choice for field testing, laboratory use, and applications requiring frequent transport and reliable performance under demanding conditions.
