Overview of the LBQ-III Leakage Protector Tester for Electrical Safety Testing

Introduction

Leakage protectors (also known as residual current devices, RCDs) are critical safety components in low-voltage electrical systems, designed to prevent electric shock and fire hazards by interrupting power when abnormal leakage currents are detected. To ensure their reliability and compliance with safety standards, regular performance testing is mandatory in both field and laboratory environments. The LBQ-III Leakage Protector Tester is a purpose-built instrument engineered to simplify and standardize these tests, offering high accuracy, portability, and user-friendly operation for electrical technicians and engineers.

Core Functions and Design Philosophy

The LBQ-III tester is optimized for online, in-service testing of leakage protectors, eliminating the need for device disassembly and enabling efficient safety checks in real-world conditions. It measures three key performance parameters of RCDs:

Leakage Operating Current: The minimum residual current that triggers the device to trip.

Leakage Non-Operating Current: The maximum residual current at which the device does not trip, ensuring it avoids nuisance tripping under normal operating conditions.

Leakage Operating Time: The time taken by the device to disconnect power after detecting a fault, a critical metric for limiting exposure to dangerous currents.

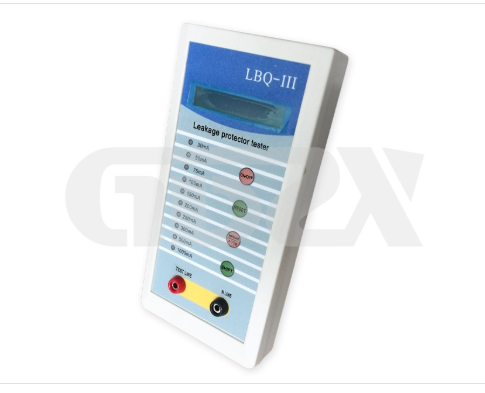

To enhance usability, the tester incorporates a 16-character blue LCD display, providing clear, intuitive readouts of test results. Its compact, lightweight form factor and handheld design make it easy to carry and operate in confined spaces or on-site locations, addressing a common pain point in field testing.

Key Features and Operational Advantages

The LBQ-III’s design prioritizes versatility, accuracy, and ease of use, making it suitable for a wide range of applications:

Multi-Phase Compatibility: It supports testing of both single-phase and three-phase leakage protectors, covering most common low-voltage system configurations.

Automated and Direct Testing: The instrument automates the measurement of leakage operating current and directly displays operating time, reducing manual errors and streamlining workflows.

Wide Measurement Ranges: The leakage current range spans 0–1000mA, with predefined test points (30, 50, 75, 100, 150, 200, 250, 300, 500, 1000mA) to match standard RCD ratings. The operating time range of 0–799ms captures the full spectrum of typical RCD response times.

High Accuracy: With a leakage current accuracy of Class 1 and an operating time display accuracy of 0.5% (±2d), the tester delivers reliable results that meet the precision requirements of safety compliance testing.

Technical Specifications

表格

Applications and Value

The LBQ-III Leakage Protector Tester is an ideal tool for:

Field Maintenance: On-site testing of RCDs in commercial, industrial, and residential electrical installations to verify compliance with safety codes.

Laboratory Testing: Performance validation of new or repaired leakage protectors in manufacturing or calibration facilities.

Safety Audits: Periodic verification of RCD functionality to mitigate risks of electric shock and fire caused by faulty devices.

By combining portability, accuracy, and multi-functional testing capabilities, the LBQ-III helps electrical professionals ensure the reliability of leakage protectors, contributing to safer electrical systems and compliance with global safety standards.

 GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
