Testing Technology of Lightning Arrester Discharge Counter with ZXJS-II Tester

Introduction

Lightning arresters are core overvoltage protection equipment widely deployed in transmission, distribution and substation power systems. A lightning arrester discharge counter is the matched auxiliary device that records lightning surge impact times suffered by arresters during long-term field operation. Accurate counting directly reflects the actual lightning strike load of arresters, serving as a critical basis for equipment condition assessment, regular maintenance and fault risk early warning of power grids. If the discharge counter fails to trigger or misrecords lightning strokes, operation staff cannot grasp the real service state of arresters, which will bring hidden dangers to the safe and stable operation of the whole power system.

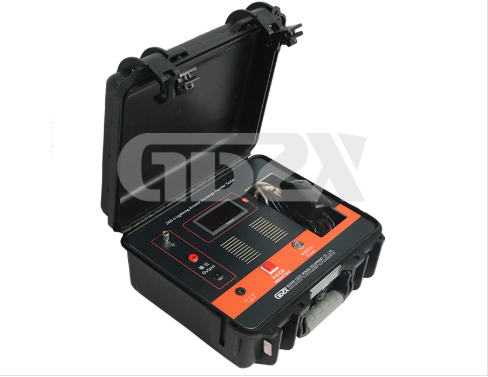

ZXJS-II Lightning Arrester Discharge Counter Tester is a dedicated portable calibration instrument developed to verify the functional reliability of all types of surge arrester counters. It can simulate standard lightning surge signals on-site to trigger counters, inspect whether the counting mechanism acts sensitively and records lightning times correctly, solving the pain point of offline reliability verification for arrester discharge counters.

Core Advantages of ZXJS-II Tester

For field power test engineers, portability, power supply adaptability and testing safety are three primary evaluation standards for testing instruments. The ZXJS-II tester is optimized for on-site power inspection scenarios with three prominent features:

Dual AC/DC power supply with built-in rechargeable battery

The equipment integrates a rechargeable battery module, supporting two power supply modes: DC 12V battery power for outdoor field tests without mains power, and AC 220V mains power for long-duration laboratory calibration. This dual-purpose design completely adapts diverse working conditions such as mountainous transmission towers, unattended substations and central test workshops.

Compact and lightweight structure

Its overall dimension is only 380×250×180 mm, with a net weight of merely 3 kg. Engineers can carry the tester to any arrester installation location alone without auxiliary transport tools, greatly improving the mobility of periodic arrester inspection work.

Safe, rapid and high-precision measurement workflow

The built-in circuit adopts isolation protection design to eliminate electric shock risks during testing. One complete calibration cycle can be finished within minutes, and the output surge parameters comply with industry standard specifications, ensuring consistent and accurate test results for counter performance judgment.

Key Technical Specifications and Working Principle Analysis

The standard lightning surge waveform defined by power industry standards is 8/20 μs impulse current, which simulates the waveform characteristics of actual lightning invading power equipment. The ZXJS-II tester’s core technical indicators fully match on-site calibration requirements for discharge counters:

Output DC voltage: 1600V with a tolerance of ±3%, providing stable energy storage for generating standard surge current;

Minimum test interval: ≥30 seconds, reserving sufficient time for internal circuit energy reset and counter number recording observation, avoiding misjudgment caused by continuous rapid discharge;

Rated power input: DC12V or AC220V±10% at 50Hz±2%, adapting to common power supply environments of power industry;

Simulated surge current amplitude: ≥100A (8/20μs), which meets the minimum trigger current threshold of mainstream electromagnetic and mechanical arrester discharge counters in the market.

During testing, the tester first charges its internal capacitor bank to the set 1600V DC voltage. After connecting the two output terminals to the discharge counter under test, the equipment releases stored energy instantaneously to form an 8/20μs surge current over 100A, which simulates real lightning surge flowing through the arrester and counter. Operators observe whether the counter completes one valid count increment after each discharge, so as to judge the mechanical and electrical actuation reliability of the counter.

Engineering Application Significance in Power System

In routine power grid equipment maintenance, technicians rely on discharge counter readings to judge the lightning withstand degree of arresters. Counters with malfunction will lead to missing lightning strike records: when an arrester bears multiple lightning impacts without recorded counts, aging and internal damage of arrester valve plates cannot be discovered timely, eventually triggering insulation breakdown and line tripping faults.

Regular calibration using the ZXJS-II tester can eliminate invalid discharge counters in advance, guarantee the authenticity of lightning stroke statistical data of power stations and transmission lines. The portable all-condition testing capability of the instrument reduces the workload of power inspection teams, realizes full-coverage reliability detection of arrester discharge counters, and provides solid technical support for the lightning protection system stability of the power grid.

Conclusion

As a special calibration device for lightning protection auxiliary equipment, the ZXJS-II Lightning Arrester Discharge Counter Tester fills the demand of on-site rapid verification of discharge counters. Its reasonable power supply design, lightweight body and standard-compliant surge output parameters make it an essential testing tool for substation maintenance departments, power inspection teams and lightning protection technology laboratories. Regular calibration of discharge counters with this instrument can standardize lightning protection equipment management, reduce lightning-induced power grid faults, and continuously improve the overall operation safety level of power systems.
