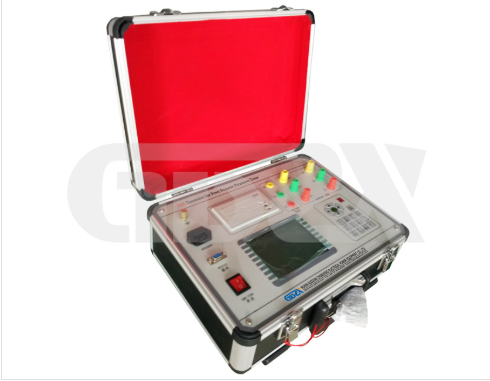

Technical Overview of ZXXL Transmission Line Power Frequency Parameters Tester

1. Introduction

Power frequency parameter measurement of transmission lines and transformer loss testing are essential procedures in power system commissioning, operation and maintenance. Accurate parameters including line impedance, admittance, and transformer no-load & load loss form the foundation for power flow calculation, relay protection configuration, grid loss analysis, and equipment condition evaluation.

Conventional testing approaches generally face challenges such as multi-channel signal synchronization deviation, low on-site efficiency, and complicated operation. The ZXXL Transmission Line Power Frequency Parameters Tester is a specialized instrument developed for these scenarios, with optimized design in sampling technology, human-machine interaction and portability to fulfill the demands of field power testing.

2. Core Technical Architecture

The core technical advantage of the ZXXL tester lies in its advanced multi-channel A/D synchronous sampling system and digital signal processing technology.

In power frequency parameter testing, the phase difference between voltage and current signals directly determines the calculation accuracy of active power, reactive power, impedance and loss parameters. Traditional time-sharing sampling schemes introduce inherent phase deviation, and further cause calculation errors in derived parameters. The multi-channel synchronous A/D architecture adopted by this instrument realizes strictly aligned sampling timing across all analog channels, fundamentally eliminating the synchronization error between voltage and current measurement loops. Combined with digital signal processing algorithms for filtering and signal conditioning, the tester maintains stable measurement performance even in on-site environments with power frequency interference and harmonic pollution.

This technical scheme successfully resolves the difficulty of multi-channel signal synchronous measurement and calculation, and also simplifies the on-site testing workflow. Technicians can complete synchronous acquisition and calculation of multiple parameters with one-time wiring, avoiding repeated wiring adjustment and manual phase calibration in traditional methods.

3. Functional Characteristics

3.1 Human-Machine Interaction & Data Management

The instrument is equipped with a large-screen liquid crystal display (LCD) with Chinese menu prompts. The menu-driven operation logic is straightforward to master, allowing field technicians to complete parameter setting, real-time data monitoring and result viewing efficiently.

Integrated with a high-speed thermal printer and built-in data storage function, the tester supports on-site test report printing and historical data archiving. Test results can be saved internally for subsequent data analysis and traceability, which avoids manual recording errors and improves the standardization of test work.

3.2 Field Adaptability

With compact dimensions of 380×270×190mm and a net weight of 7kg (excluding accessories), the tester features small volume and light weight. Its portable design is highly suitable for field work scenarios such as substation commissioning, line acceptance and routine maintenance. It effectively reduces the labor intensity of test personnel and improves overall working efficiency.

4. Key Technical Specifications

The main technical indicators of the ZXXL tester comply with the conventional requirements of power industry testing, as detailed below:

Voltage measurement range: AC 25V ~ 500V

Current measurement range: AC 0.025A ~ 50A

Measurement accuracy: 0.2 grade for voltage, current and impedance; 0.5 grade for power

Working temperature range: -10℃ ~ 50℃

Working humidity range: 0 ~ 80%

Power supply: AC220V±10%, 50Hz±1Hz

Dimension: 380×270×190mm

Weight: 7kg (accessories not included)

The wide measurement range covers most medium and low voltage transmission lines and distribution transformer testing scenarios. The accuracy grade meets the requirements of routine testing and equipment acceptance in power systems. The wide operating temperature and humidity range ensures reliable operation in various outdoor and substation environments.

5. Conclusion

As a specialized testing instrument for transformer loss parameters and line power frequency parameters, the ZXXL Transmission Line Power Frequency Parameters Tester integrates high-precision synchronous sampling technology, complete data processing functions and portable structural design. It provides a reliable and efficient solution for power testing work, and has practical application value in power grid construction, equipment commissioning, operation maintenance and technical transformation within the power equipment industry.
