ZXDN-3001:Technical Analysis of Handheld Three-Phase Energy Meter Calibrator

Abstract

On-site verification of electric energy meters is a critical link to guarantee metering accuracy and power transaction fairness within power distribution systems. Traditional verification instruments are often bulky and require breaking current loops for wiring, limiting field operation efficiency. This article takes the ZXDN-3001 handheld three-phase electricity meter calibrator as the research object, systematically elaborates its functional architecture, core technical characteristics and performance indicators, and discusses its application value in on-site meter testing, power quality analysis and wiring fault diagnosis, providing technical reference for power metering practitioners.

1. Introduction

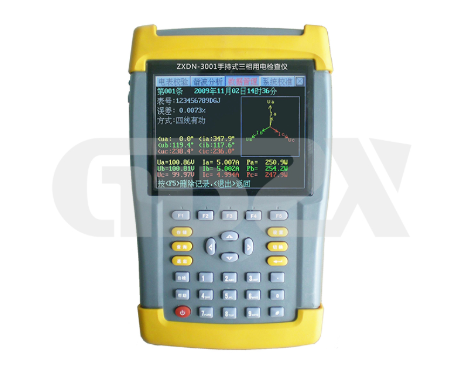

With the continuous expansion of modern power grids, the demand for live on-site inspection of metering equipment is growing rapidly. Power enterprises require testing instruments to realize high-precision measurement under uninterrupted power conditions, while satisfying portability and multi-function integration. The ZXDN-3001 handheld three-phase electricity meter calibrator is a portable high-precision testing device independently developed by GDZX. It integrates electrical parameter measurement, energy meter verification and wiring identification. Equipped with high-linearity voltage transformers and clamp current transformers, the calibrator supports non-intrusive testing without disconnecting current loops, effectively adapting to complex on-site working conditions of power grids.

2. Core Functional Features

The instrument integrates multiple testing functions to satisfy diversified field testing demands:

Integrated multi-scenario testing capability It supports energy meter verification, comprehensive electrical parameter measurement, and power quality monitoring. It can detect typical grid anomalies including waveform distortion, voltage fluctuation and three-phase unbalance. All tests can be carried out under live load without power cut, circuit modification or equipment disassembly, realizing online comprehensive error detection of metering devices.

Comprehensive electrical parameter measurement & wiring diagnosis The calibrator accurately measures voltage, current, active/reactive power, phase angle, power factor, frequency and other parameters to calculate the composite error of the metering loop. It displays voltage and current vector diagrams for wiring judgment. Under three-phase three-wire mode, it can automatically identify 48 connection modes. The built-in auxiliary power automatic calculation function simplifies troubleshooting for wiring failures.

Non-intrusive current measurement Matching clamp current transformers allow operators to complete current sampling without breaking current loops, improving operation safety and testing efficiency.

Wide-range verification compatibility It can calibrate voltmeters, ammeters, wattmeters, phase meters, as well as 1A/5A single-phase and three-phase active & reactive energy meters of three-phase three-wire / three-phase four-wire systems. Verification modes include photoelectric sampling, manual triggering and pulse acquisition.

Power quality & dynamic load monitoring The device realizes AC power quality analysis for public grid supply, covering frequency deviation, voltage deviation, voltage fluctuation, three-phase voltage unbalance and harmonic testing. It displays single-phase and three-phase voltage & current waveforms simultaneously. Functions such as load fluctuation monitoring and dynamic tracking of power equipment commissioning are available. It can quantitatively evaluate the performance of reactive power compensation and filtering equipment in power systems.

Data management and human-machine interaction Equipped with perpetual calendar and real-time clock, test data can be stored locally during on-site verification and uploaded to computers via serial ports for background software centralized management. The large imported color LCD adopts English graphical operation interface with friendly human-machine dialogue. Compact structure brings excellent portability for field testing and laboratory standard measurement.

3. Main Technical Specifications

The key technical indicators determine the reliability of field measurement, as listed below:

Input Voltage: AC 0 ~ 450 V

Current Measuring Range: 25 A, 500 A (clamp transformer)

Frequency Range: 45 Hz ~ 65 Hz, Accuracy: ±0.01 Hz

Phase Measurement: 0° ~ 360°, Accuracy: ±0.1°

Accuracy Class: Voltage, Current, Active Power & Active Energy: 0.2(0.5); Reactive Energy: 0.5(1.0)

Impedance: Voltage loop ≥600 kΩ; Current loop ≤0.01 Ω

Operating Temperature: -20 ℃ ~ +50 ℃

Power Supply: Built-in high-capacity rechargeable battery or external 220 V AC

Overall Power Consumption: ＜3 VA

Dimensions: 250 × 160 × 60 mm

Weight: 1.8 kg

The wide temperature range and low power consumption enable stable long-duration outdoor operation. The lightweight engineering plastic housing realizes the balance between measurement performance and portability.

4. Application Prospects in Power Industry

In power metering operations, this handheld calibrator solves the pain points of traditional bench calibrators: heavy weight, mandatory current loop disconnection and single function.

On-site live verification of energy meters: Complete error testing of operating meters without power interruption, minimizing the impact on power supply users.

Metering loop wiring fault troubleshooting: Judge incorrect wiring through vector diagrams and automatic connection mode identification, widely used in electricity anti-stealing inspection.

Power quality testing at distribution terminals: Capture harmonic, unbalance and load fluctuation data to support distribution network optimization.

Commissioning acceptance of reactive compensation equipment: Provide quantitative data to verify the filtering and compensation effect of power electronic devices.

Meanwhile, it can serve as standard measuring equipment in metering laboratories, realizing dual usage of laboratory calibration and field inspection.

5. Conclusion

Portable multi-function metering calibrators represent an important development direction of power testing equipment. The ZXDN-3001 handheld three-phase electricity meter calibrator combines high measurement precision, non-stop live testing and integrated power quality analysis. Its compact size and friendly operation interface meet the increasingly stringent requirements of modern power grid on-site metering work. For power metering technicians, proficient mastery of this type of handheld calibrator can significantly improve the efficiency of on-site verification, fault diagnosis and power quality investigation. With the continuous upgrading of smart grids, integrated portable testing instruments will gain broader application space in distribution network operation and maintenance.
