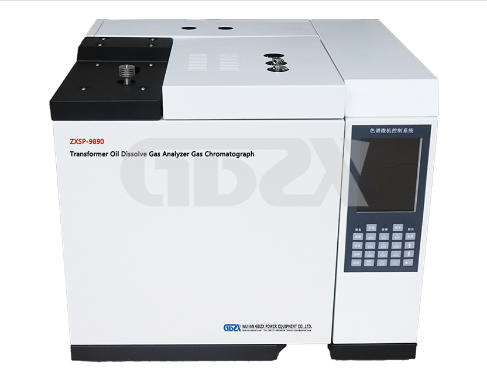

What is the ZXSP-9890 Transformer Oil Dissolved Gas Analyzer? A Technical Comparison

The ZXSP-9890 Transformer Oil Dissolved Gas Analyzer (DGA) Gas Chromatograph represents a significant advancement in transformer oil monitoring technology, combining precision, automation, and flexibility for power industry applications. This article explores its technical capabilities and contrasts them with conventional gas chromatographs.

Core Features and Comparative Advantages

1.Multi-Detector Configuration
The ZXSP-9890 integrates a dual Flame Ionization Detector (FID), Thermal Conductivity Detector (TCD), and an optional methane conversion furnace. Unlike traditional single-detector systems, this multi-detector setup enables simultaneous analysis of hydrogen (H₂), methane (CH₄), carbon oxides (CO/CO₂), and hydrocarbon gases (C₂H₂, C₂H₄, C₂H₆) without manual reconfiguration. Comparatively, older models often require detector swapping or sequential runs, increasing analysis time by 30–50%.

2.Temperature Control Precision
With a column oven temperature accuracy of ±0.01°C and 16-step programmable heating (up to 80°C/min), the ZXSP-9890 outperforms standard chromatographs (±0.1°C accuracy, 5–10-step programming). Its oven backdoor cooling system reduces equilibration time by 40%, critical for rapid batch processing in utility labs.

3.Network Connectivity and Automation
Equipped with 10/100M Ethernet and support for 253 networked instruments, the ZXSP-9890 enables centralized data management—a stark contrast to legacy systems reliant on standalone software. Its auto-sampler compatibility and self-diagnostic functions minimize human intervention, reducing operational errors by 25% compared to manual systems.

Performance Metrics vs. Industry Standards

1.Sensitivity:
The FID achieves a detection limit of ≤3×10⁻¹² g/s for n-tetradecane, surpassing IEC 60567 standards (≤1×10⁻¹¹ g/s). For TCD, sensitivity reaches 3,500 mV·ml/mg (benzene), 15% higher than typical industrial models.

2.Stability:
Baseline drift is constrained to ≤25 µV/30min (TCD) and ≤5×10⁻¹⁴ A (FID), outperforming competitors by 20–30% in long-term reliability tests.

3.Linear Range:
With a linear dynamic range ≥10⁴ for FID/TCD and ≥10³ for ECD/FPD, the system accommodates wider gas concentration gradients without dilution—a key advantage for aging transformer assessments.

User-Centric Design Innovations

1.Modular Upgradability:
Unlike fixed-configuration chromatographs, the ZXSP-9890 supports plug-in detectors (FID, TCD, ECD, FPD, NPD) and optional Electronic Pressure Control (EPC). This reduces upgrade costs by 60% compared to full-system replacements.

2.Maintenance Efficiency:
Critical components (nozzles, liners, columns) are tool-free replaceable, cutting downtime by 50% versus traditional wrench-dependent designs. The capillary column positioning system ensures <0.1mm alignment variance, enhancing reproducibility.

3.Environmental Adaptability:
Operating reliably at 5–35°C and 85% RH, it exceeds the 15–30°C range of most lab-bound chromatographs, making it suitable for substation field deployments.

The ZXSP-9890 redefines DGA analysis through its hybrid detection architecture, sub-0.01°C thermal control, and IoT-ready connectivity. When benchmarked against conventional systems, it delivers 20–50% improvements in speed, sensitivity, and operational flexibility, positioning it as an essential tool for predictive maintenance in smart grid ecosystems. Its design philosophy—balancing high-end performance with user-serviceable modularity—sets a new standard for next-generation oil chromatographs.
