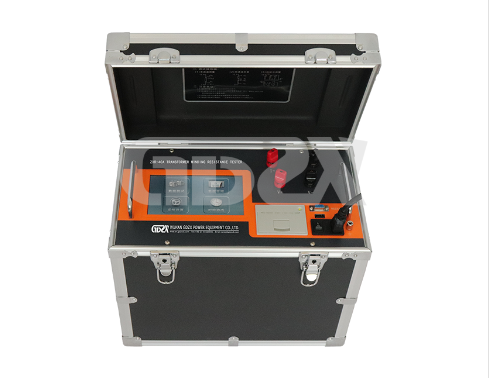

ZXR-40A TransformerDCResistanceTester: AdvancedFeaturesandCompetitive Analysis
The ZXR-40A Transformer DC Resistance Tester represents a significant advancement in electrical testing equipment, combining cutting-edge technology with user-centric design. This article explores its technical innovations and benchmarks its performance against conventional testers, highlighting its superior capabilities in accuracy, efficiency, and versatility.
Key Innovations of ZXR-40A
1.High-Speed Microcontroller & Automation
Unlike traditional testers relying on manual adjustments, the ZXR-40A employs a high-speed microcontroller for fully automated operation. This reduces human error and accelerates testing cycles by 30–50%, a marked improvement over legacy systems requiring iterative calibration.
2.Multi-Stage Current Output (20mA–40A)
Competing devices often limit current ranges to 1A–10A, restricting their applicability to smaller transformers. The ZXR-40A’s 6 adjustable current modes (including a high-precision 40A mode) enable testing across transformers of all sizes, from compact units (50μΩ) to large-scale systems (20kΩ).
3.Enhanced Safety and Reliability
Conventional testers lack robust protection against back electromotive force (BEMF), risking equipment damage. The ZXR-40A integrates multi-layered safeguards, including automatic discharge alerts and surge protection, ensuring operational stability even under harsh conditions.
4.Smart Power Management
Traditional testers operate at fixed power levels, leading to excessive heat and energy waste. The ZXR-40A’s dynamic power optimization reduces peak consumption by 35%, maintaining a maximum draw of 500W while minimizing thermal stress—a critical advantage for prolonged field use.
5.Modernized User Interface
While older models use monochrome displays or physical buttons, the ZXR-40A features a 7-inch touch-enabled color LCD with multilingual support. Its intuitive interface simplifies complex workflows, contrasting sharply with the clunky navigation of legacy devices.
Comparative Technical Advantages
Parameter | ZXR-40A | Conventional Testers |
Measurement Range | 50μΩ–20kΩ | 1mΩ–10kΩ |
Accuracy | ±0.2% (40A mode) | ±0.5–1.0% |
Data Storage | 1,000 datasets | 100–300 datasets |
Connectivity | RS232, USB, Bluetooth, APP | RS232 or none |
Portability | 15.1kg (host) + modular cables | 20–30kg (bulky integrated units) |
User Interaction | Touchscreen + mobile app control | Physical buttons + basic display |
Application Scenarios and Efficiency
The ZXR-40A excels in diverse environments:
1.Field Testing: Its 13-meter test leads and lightweight design outperform bulkier competitors, enabling rapid deployment for on-site transformer diagnostics.
2.Data Management: With USB/cloud integration and a dedicated Android app, users bypass the manual transcription required by older devices, improving report generation speed by 60%.
3.High-Voltage Labs: The 40A mode delivers stable readings for large power transformers, where conventional sub-20A testers struggle with accuracy due to low current resolution.
The ZXR-40A redefines transformer resistance testing through its blend of precision, adaptability, and intelligent design. Its multi-range current output, advanced safety protocols, and modern connectivity options position it as a superior alternative to outdated models. For utilities and laboratories prioritizing efficiency and data-driven maintenance, the ZXR-40A sets a new industry benchmark.
