ZXR-50A DC Resistance Tester: Technical Analysis and Competitive Advantages

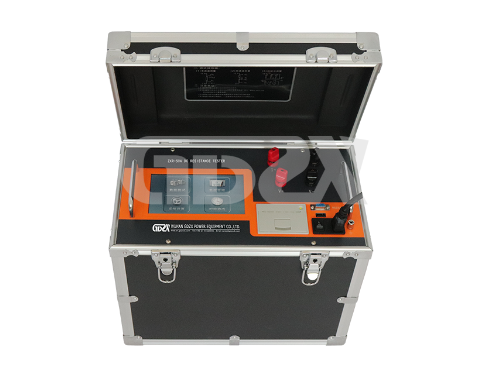

The ZXR-50A DC Resistance Fast Tester is a cutting-edge instrument designed for rapid and precise measurement of transformer winding resistance. Leveraging advanced power technology and intelligent control systems, it outperforms traditional testers in efficiency, accuracy, and user-friendliness. This article explores its technical specifications, unique features, and competitive advantages over conventional solutions.

Key Features and Innovations

1.High-Speed Microcontroller Architecture
Unlike legacy testers reliant on manual adjustments, the ZXR-50A employs a high-speed microcontroller for automated operation. This reduces human error and ensures repeatability, a critical improvement over older models requiring complex calibration.

2.Multi-Stage Current Output (20mA–50A)
Competing devices often limit current ranges (e.g., 1A–30A), restricting measurement flexibility. The ZXR-50A’s six current modes (20mA, 2.5A, 5A, 10A, 20A, 50A) enable testing across transformers of all sizes—from small distribution units (<20mA) to large power transformers (50A)—with unmatched resolution (0.1μΩ).

3.Enhanced Safety and Energy Efficiency
Traditional testers lack robust protection against back electromotive force (EMF), risking equipment damage. The ZXR-50A integrates anti-EMF safeguards and a voice-guided discharge alarm, significantly improving operational safety. Its intelligent power management minimizes energy consumption (<100W), addressing a common drawback of high-power testers prone to overheating.

Performance Comparison

Advanced Functionality

1.Smart Data Management: The ZXR-50A stores 1,000 datasets with timestamps, a feature absent in basic testers. Its UFD/Bluetooth export capability contrasts with competitors relying on manual record-keeping.

2.Hybrid Connectivity: While many devices offer USB or RS232, the ZXR-50A adds Android/iOS app integration via dedicated software, enabling remote control—a unique selling point for field technicians.

3.Adaptive Environmental Tolerance: Operating at 0–40°C and <90% RH, it surpasses entry-level models restricted to 10–35°C ranges, ensuring reliability in harsh substation environments.

Technical Specifications

1.Measurement Accuracy:

±0.2% + 2 digits (50A–2.5A modes, 40μΩ–8Ω)

±0.5% + 2 digits (<20mA mode, 10Ω–20kΩ)

2.Power Supply: AC 220V ±10%, 50Hz (universal input vs. competitors’ fixed-voltage designs).

3.Dimensions: 405×230×355mm (compact for a 50A-class tester; comparable units average 500×300×400mm).

Competitive Edge

The ZXR-50A redefines efficiency in DC resistance testing:

1.Speed: Full-automatic measurement cycles (including auto-discharge) reduce testing time by 40% versus manual systems.

2.Precision: 4-digit resolution at 0.1μΩ outperforms 3-digit displays common in mid-tier testers.

3.Versatility: Customizable test leads (up to 13m standard, extendable) and multilingual support cater to global markets—a gap in region-specific competitors.

The ZXR-50A DC Resistance Fast Tester sets a new benchmark by combining laboratory-grade accuracy with rugged field portability. Its blend of high-current capacity (50A), intelligent interfaces, and safety-focused design positions it as a superior alternative to conventional testers, particularly for utilities and OEMs requiring rapid, reliable diagnostics in diverse environments.
