ZX-BZL Transformer Tester: Comparative Analysis in Power Diagnostics

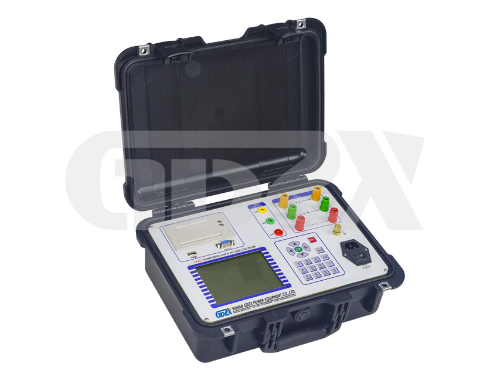

Modern power systems demand precise and efficient diagnostic tools for transformer evaluation. The ZX-BZL Transformer No-load and Load Characteristics Tester represents a significant advancement over traditional testing methods, aligning with international standards such as JB/T501-91 and GB1094-96. This article explores its technical capabilities, compares it with conventional approaches, and highlights its transformative role in transformer testing.
Key Features of ZX-BZL
1.Multi-Parameter Measurement
The ZX-BZL simultaneously captures AC voltage (effective/average values), current, active power, power factor, and frequency. Unlike legacy pointer-style instruments limited to single-parameter measurements, it streamlines testing workflows by eliminating the need for multiple devices.
2.Harmonic Analysis & Automation
With 31st-order harmonic analysis and auto-ranging capabilities, the ZX-BZL outperforms conventional testers that lack harmonic profiling. Its intelligent vector diagram display automatically verifies three-phase wiring accuracy—a critical improvement over manual phase-checking processes.
3.Adaptive Testing Capacity
The instrument supports transformers up to 3,150 kVA (at 1/3 rated current) through advanced current-scaling algorithms. Traditional methods require bulky external loads or complex setups for high-capacity units, while the ZX-BZL achieves this with compact portability.
4.Precision Calibration
Integrated waveform, temperature, and non-rated parameter corrections ensure ±0.5% power measurement accuracy (CosΦ >0.1). This contrasts sharply with analog devices prone to ±2-3% errors due to manual calibration and environmental sensitivity.
5.User-Centric Design
A 320x240 LCD with touch controls replaces error-prone dial interfaces. Preconfigured 40-group test profiles and 500-result storage (with time-stamping) address the data management limitations of paper-based logging systems.
Technical Comparison
Parameter | ZX-BZL | Conventional Testers |
Measurement Scope | 10-600V, 0.5-60A, 45-65Hz | Narrow ranges, external CT/PT needed |
Accuracy | 0.2% (V/I), ±0.5% (power) | 1-2% typical |
Harmonic Analysis | Up to 31st order | None |
Data Processing | Auto-corrections, vector diagrams | Manual calculations |
Output | Direct thermal printing, PC export | Handwritten records |
Insulation Strength | 2kV/1min (input-ground) | Often limited to 1kV |
Field Applications
The ZX-BZL excels in scenarios where traditional methods falter:
1.Rapid Load Tests: Completes 1,000 kVA transformer full-current evaluations in single-unit mode.
2.Grid Compliance: Validates harmonics for IEC/IEEE-standard transformers.
3.Harsh Environments: Operates at -5°C to 40°C with 95% humidity tolerance, unlike moisture-sensitive analog tools.
The ZX-BZL redefines transformer diagnostics through automation, precision, and adaptability. By integrating measurement, analysis, and reporting functions into one IP54-rated platform, it reduces testing time by 60-70% compared to conventional setups. For utilities and manufacturers transitioning to digital substations, this instrument bridges the gap between legacy practices and smart grid requirements, setting a new benchmark in power equipment evaluation.
