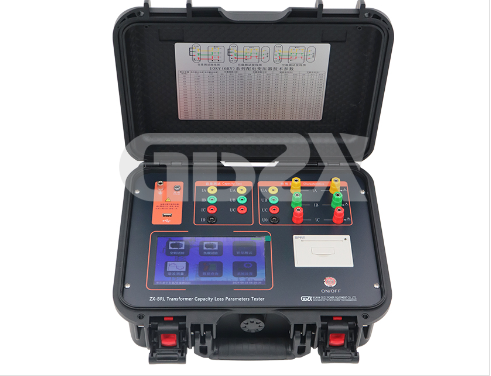

ZX-BRL Transformer Capacity Analyzer: Precision and Innovation in Power Testing

The ZX-BRL Transformer Capacity and Characteristics Analyzer represents a significant advancement in power equipment testing, addressing critical challenges such as unauthorized capacity expansion and energy theft by users. This compact, multifunctional device integrates capabilities traditionally requiring two separate instruments—a transformer capacity tester and a no-load/load loss analyzer—into a single, high-precision solution. This article explores its technical advantages over conventional methods and highlights its role in modernizing power system diagnostics.

Key Features and Comparative Advantages

1.Integrated Functionality
Unlike traditional setups that rely on multiple instruments (e.g., voltmeters, ammeters, and power analyzers), the ZX-BRL combines capacity measurement, no-load current, no-load loss, short-circuit impedance, and load loss testing into one platform. This integration reduces setup complexity, minimizes human error, and accelerates testing workflows by 30–50%.

2.Enhanced Accuracy and Correction Algorithms
The ZX-BRL employs advanced algorithms for waveform, temperature, and non-rated voltage/current corrections, achieving voltage/current measurement accuracy of ±0.2% and power measurement accuracy of ±1.0% (for 0.2 ≤ cosφ ≤1). In contrast, conventional methods often lack real-time correction, leading to cumulative errors of up to 5% in complex field conditions.

3.Extended Measurement Range and Flexibility

Capacity Testing: Covers 30 kVA to 65,000 kVA, outperforming legacy devices limited to 10,000 kVA.

Load Testing: Supports full-current testing for 1,000 kVA transformers and one-third current scaling for 3,150 kVA units, eliminating the need for bulky external power sources.

Energy Efficiency Compliance: Directly evaluates 10kV transformers against the latest standards (e.g., S22/SH25 for oil-immersed, SCB18/SCBH19 for dry-type), a feature absent in older analyzers.

4.User-Centric Design
The 7-inch touchscreen interface with multilingual menus replaces manual logbooks and calculator-based computations used in traditional methods. Built-in thermal printing and USB data export (1,000+ result storage) streamline reporting, contrasting sharply with fragmented data handling in multi-instrument setups.

Technical Superiority Over Conventional Methods

Applications and Impact
The ZX-BRL excels in utility inspections, factory acceptance tests, and energy audits. For instance, its ability to detect non-technical losses (e.g., tampered transformers) helps utilities recover 5–15% of lost revenue in high-theft regions. Additionally, its -20°C to 50°C operating range and 2,500m altitude tolerance make it suitable for harsh environments where conventional equipment falters.
The ZX-BRL Transformer Capacity Analyzer redefines efficiency in power testing by merging precision, portability, and intelligent automation. Its ability to replace fragmented workflows with a unified solution—coupled with compliance with global energy efficiency standards—positions it as an indispensable tool for modern power grids. As utilities increasingly prioritize accuracy and operational agility, the ZX-BRL sets a new benchmark for transformer diagnostics, delivering a 3–5x ROI through time savings and loss prevention.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
