Winding Deformation Analysis: ZX-BRY02 vs. Conventional Diagnostic Tools

Transformer winding deformation, caused by mechanical stress, short circuits, or transportation impacts, poses significant risks to power grid reliability. Traditional diagnostic methods, such as short-circuit impedance tests or visual inspections, often lack the precision to detect early-stage deformations. The ZX-BRY02 Transformer Winding Deformation Tester addresses these limitations by leveraging Frequency Response Analysis (FRA), a globally recognized advanced technique, to deliver unparalleled accuracy in assessing winding integrity. This article explores the technical superiority of the ZX-BRY02 compared to conventional tools, emphasizing its innovation, performance, and applicability in modern power systems.

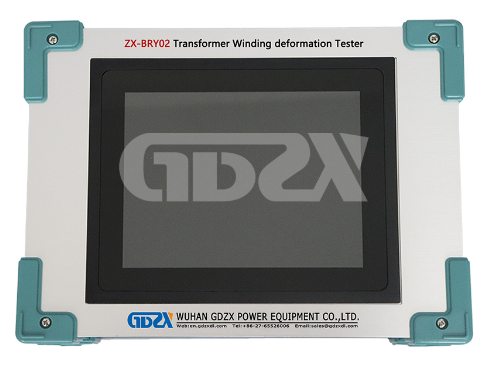

Technical Overview of ZX-BRY02
The ZX-BRY02 employs FRA methodology to evaluate changes in distributed parameters (capacitance and inductance) of transformer windings. By analyzing frequency response variations—including amplitude shifts and resonant frequency deviations—it identifies deformations such as twisting, bulging, displacement, and inter-turn faults. Key features include:

DDS-based digital sweep technology (10 Hz–10 MHz), enabling high-resolution scans (up to 40,000 points) for nuanced fault detection.

Dual measurement modes: Linear sweep (0.25–1 kHz resolution) and segmented sweep (0.5 kHz–1 MHz), compatible with diverse testing standards.

High-speed 16-bit A/D sampling and ±10V signal output, ensuring repeatability (>99.9%) and sensitivity (±0.1 dB amplitude accuracy).

Integrated industrial PC design, eliminating reliance on external laptops for field operations.

Comparative Advantages

Precision & Sensitivity

Conventional Tools: Offline impedance tests or low-frequency analog sweepers often miss subtle deformations, with resolution limited to 1–5 dB.

*ZX-BRY02*: Achieves 0.1 dB amplitude precision and 0.01% frequency accuracy, detecting minor parameter shifts indicative of early-stage winding issues.

Efficiency & Versatility

Conventional Tools: Manual data collection and analysis prolong diagnostics (hours to days). Limited to basic pass/fail judgments without detailed trend analysis.

*ZX-BRY02*: Automated FRA scans generate comparative reports in minutes. Its dual analysis system evaluates inter-phase consistency (A/B/C) and historical trends (A-A/B-B/C-C), classifying results into four severity levels (e.g., "mild" to "severe" deformation).

Field Adaptability

Conventional Tools: Bulky equipment and complex setups restrict on-site use, especially for high-voltage transformers (≥110 kV).

*ZX-BRY02*: Compact (355×145×270 mm, 17 kg) with a ruggedized design. USB connectivity and embedded software streamline field deployment across 63–500 kV transformers.

Data Intelligence

Conventional Tools: Raw data requires manual interpretation, increasing human error risks.

*ZX-BRY02*: AI-driven analysis auto-generates Word reports with graphical curves (linear/logarithmic scales), aligning with DL/T911-2004 standards.

Case Application
In a 2023 grid maintenance project, the ZX-BRY02 identified a 220 kV transformer’s Phase-B moderate deformation undetected by routine impedance tests. Historical FRA comparisons revealed a 15 dB drop at 200 kHz, traced to core displacement during transportation. Early intervention prevented a potential $500k outage.
The ZX-BRY02 redefines transformer diagnostics by merging FRA’s analytical rigor with rugged portability. Its superiority over conventional tools lies in its micron-level sensitivity, operational efficiency, and intelligent reporting—critical for modern grids prioritizing predictive maintenance. As utilities transition to data-driven asset management, the ZX-BRY02 emerges as an indispensable tool for ensuring transformer longevity and grid resilience.
