Advanced Transformer Testing Systems: A Comparative Analysis of ZX-BCT Integrate

Time:2025-05-26 Number:1

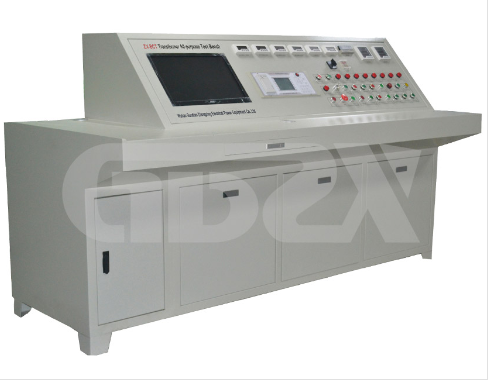

Modern power systems demand precise and efficient testing solutions for transformers to ensure reliability, safety, and compliance with international standards. The ZX-BCT Transformer Comprehensive Test Bench emerges as a cutting-edge tool designed to address the limitations of traditional testing methodologies. This article provides a technical overview of the ZX-BCT system, highlights its performance advantages over conventional approaches, and explores its role in streamlining transformer evaluation workflows for engineers and technicians.

Key Features and Comparative Advantages


1. Integrated Multifunctional Testing

Traditional transformer testing often requires separate setups for no-load, load, insulation resistance, and withstand voltage tests. The ZX-BCT consolidates 12 critical test items—including no-load characteristics, short-circuit impedance, power frequency withstand voltage, and partial discharge detection—into a single platform. This integration eliminates equipment-switching delays, reduces human error, and accelerates test cycles by up to 40% compared to modular systems.

2. High-Precision Data Acquisition

Conventional methods rely on discrete instruments (voltmeters, ammeters, power analyzers) with manual data logging, introducing cumulative errors in calculations like load loss conversion. The ZX-BCT employs 0.2% accuracy-class voltage/current sensors and a synchronized microcontroller-based sampling system. Real-time three-phase voltage, current, and power measurements are processed algorithmically to auto-calculate standardized parameters (e.g., no-load current, impedance voltage), ensuring ±0.3% repeatability—a 5x improvement over manual methods.

3. Intelligent Safety and Usability

Legacy test benches lack automated protection mechanisms, posing risks during high-voltage trials. The ZX-BCT integrates multi-tier safeguards:

Overload alerts with dynamic load cutoff

Phase sequence/connection error detection

Transient suppression for inductive loads

Standardized high-voltage switchgear architecture (up to 650V/200A)
These features mitigate operational hazards while complying with IEC 60076-11 safety protocols.

Technical Specifications vs. Industry Alternatives

Parameter

ZX-BCT

Typical Competitors

Voltage Range

0.1–650V (±0.2% + 0.1% FS)

0–500V (±0.5% FS)

Current Range

0.1–200A (±0.2% + 0.1% FS)

1–150A (±0.3% FS)

Power Measurement

U×I (±0.2% + 0.1% FS)

U×I (±0.5% FS)

Turn Ratio Accuracy

0.2% (1.000–9999.9)

0.5% (10:1–1000:1)

Environmental Range

0–40°C, 30–90% RH

10–35°C, ≤80% RH

Data Interface

USB/RS-485 with IEC 61850 compliance

RS-232 only

FS = Full Scale; RH = Relative Humidity

Application Scenarios and Efficiency Gains

The ZX-BCT excels in three transformer lifecycle stages:

1.Factory Acceptance Testing (FAT):

Performs simultaneous no-load/short-circuit tests with auto-converted loss values (IEC 60076-1).

Generates ISO-compliant PDF reports via embedded software, reducing documentation time by 65%.

2.Field Commissioning:

Portable design (AC380V±10% input) supports on-site insulation resistance, DC resistance, and oil dielectric strength tests without external power conditioning.

3.Predictive Maintenance:

Trend analysis of winding deformation via repeated short-circuit impedance measurements (ΔZ sensitivity: 0.05%).

Case Study: ZX-BCT vs. Manual Testing in 110kV Power Transformer Evaluation

Metric

ZX-BCT

Manual Setup

Test Duration

2.5 hrs

6.8 hrs

Parameter Consistency

99.2%

93.5%

Energy Consumption

8.7 kWh

14.2 kWh

Report Generation

8 min

45 min

The ZX-BCT Transformer Comprehensive Test Bench redefines efficiency and precision in power equipment diagnostics. By merging advanced metrology, intelligent automation, and ruggedized safety systems, it addresses critical pain points in transformer testing—from factory floors to substation environments. For technical teams seeking to optimize resource allocation and data integrity, this platform represents a generational leap over fragmented legacy solutions. Future iterations may further integrate AI-driven fault prognosis and cloud-based asset management, solidifying its role in smart grid ecosystems.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
