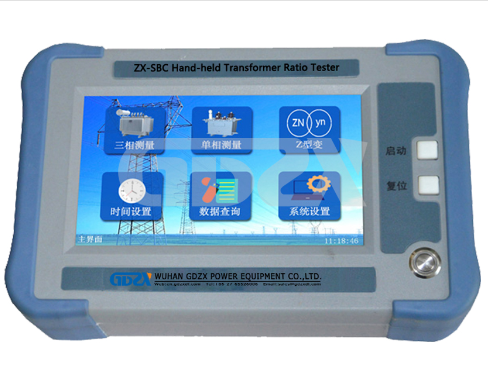

Revolutionizing Transformer Testing: The ZX-SBC Handheld Turns Ratio Tester

Time:2025-05-29 Number:1

Introduction: The Critical Role of Turns Ratio Testing
Verifying the turns ratio (or voltage ratio) is a fundamental diagnostic and commissioning procedure for power transformers. Essential during manufacturing, before initial energization, and as mandated by preventive testing regimes (e.g., IEEE standards), this test confirms:

1.Correct winding turns ratios.

2.Proper tap changer operation and position.

3.The absence of detrimental inter-turn shorts.

4.Compatibility for parallel operation.

Traditional methods, often relying on cumbersome ratio bridges, present significant limitations: indirect readings requiring manual calculation, susceptibility to supply harmonics, and slow, phase-by-phase testing. The ZX-SBC Handheld Transformer Turns Ratio Tester is engineered to overcome these challenges, delivering speed, accuracy, and unparalleled ease of use in the field or lab.


ZX-SBC: Performance Advantages Over Traditional Methods

Feature

Traditional Ratio Bridge

ZX-SBC Handheld Tester

Advantage of ZX-SBC

Test Voltage

Single-Phase (Often Unfiltered Mains)

Internal 3-Phase Precision Inverter

Eliminates harmonic distortion; Unaffected by generator power; Pure, stable source for higher accuracy.

Test Method

Single-Phase Sequential

True 3-Phase Simultaneous

Dramatically faster testing; Measures phase angles; Automatically identifies vector group (0-11).

Measurement

Ratio Only (Manual Calc. Often Req.)

Ratio, Error, & Tap Position

Direct readout; Automatic asymmetric tap position detection (up to 99 taps); Comprehensive results.

Usability

Complex, Requires Manuals

7" Color Touchscreen w/ Step Guides

Intuitive operation; On-screen prompts eliminate need for manuals; Clear visualization.

Portability

Often Benchtop, AC Mains Dependent

Battery Powered; Rugged IP-Rated Case

True handheld freedom; Operates anywhere; Protected against field hazards (shock, moisture, temp).

Protection

Limited

Comprehensive Safeguards

HV/LV Reversal, Short Circuit, Turn Fault, Tap Mismatch protection enhances instrument safety & longevity.

Versatility

Standard Power Transformers

Wide Range Compatibility

Superior performance on Zig-Zag, Rectifier, Grounding, Furnace, Phase-Shifting, and Balancing transformers.

Technical Specifications at a Glance

1.Ratio Range: 0.9 to 10,000

2.Accuracy:

0.9 - 500: ±(0.1% of Reading + 2 digits)

501 - 2000: ±(0.2% of Reading + 2 digits)

2001 - 10000: ±(0.3% of Reading + 2 digits)

3.Resolution: 0.0001

4..Output Voltage: Auto-adjusts based on load impedance

5..Power Source: Rechargeable Battery

6.Operating Environment: -10°C to 40°C, ≤85% RH (non-condensing)

7.Data Output: External Printer Port

Conclusion: The Modern Technician's Essential Tool
The ZX-SBC Handheld Transformer Turns Ratio Tester represents a significant technological leap. By replacing outdated bridge methods with sophisticated three-phase inverter technology, intuitive software, and robust field-ready design, it delivers:

1.Unmatched Speed & Efficiency: Three-phase testing and auto-features drastically reduce test time.

2.Superior Accuracy & Reliability: Precision power sources and advanced algorithms ensure trustworthy results, immune to dirty power.

3.Enhanced Diagnostic Capability: Automatic vector group identification and asymmetric tap position detection provide deeper insights.

4.Unparalleled Ease of Use: The guided touchscreen interface minimizes training needs and operator error.

5.True Field Portability: Battery operation and rugged construction empower testing anywhere.

For technicians responsible for transformer commissioning, maintenance, and diagnostics, the ZX-SBC is not just an improvement—it's a transformative tool that simplifies complex procedures, enhances data quality, and significantly boosts productivity in demanding electrical environments.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
