Simulating Breakers Smarter: The ZXMN-B Advantage for Protection Testing
Protection relay and panel testing is fundamental to grid reliability. Traditionally, "whole set" tests require repeatedly tripping and closing the actual high-voltage circuit breaker (CB) to verify the entire protection scheme's logic and timing. While necessary, this process has significant drawbacks: accelerated wear and tear on the expensive, critical CB, increased downtime, and potential safety implications.

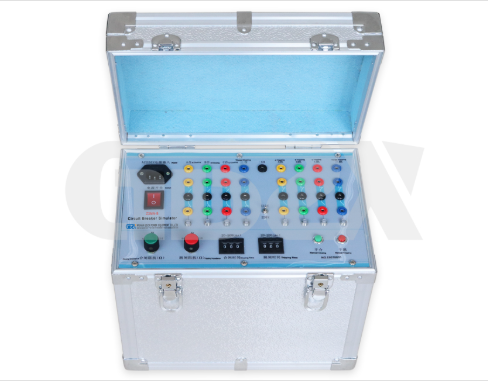

Enter the ZXMN-B Circuit Breaker Simulator. This specialized instrument revolutionizes whole-set testing by eliminating the need to physically operate the HV breaker during repeated test cycles. Instead, it provides a sophisticated, configurable simulation of the breaker's behavior, specifically focused on replicating trip and close times accurately.
Core Purpose & Advantage:
The ZXMN-B's primary function is to realistically simulate the CB's trip and close actions during protection device or panel testing. By doing so, it:
Protects Critical Assets: Eliminates unnecessary mechanical stress and electrical wear on HV circuit breakers caused by repeated tripping/closing during test iterations.
Increases Testing Efficiency: Dramatically reduces test setup time and downtime associated with operating the actual breaker. Tests can be run rapidly and repeatedly.
Enhances Safety: Reduces personnel exposure to HV equipment operations during testing phases.
Provides Precision: Offers controlled and repeatable simulation of breaker timing characteristics.
Key Features & Technical Capabilities:
The ZXMN-B achieves this through its robust design and flexible settings, as per its specifications:
All-Digital Control: Utilizes digital circuitry and digital dialing for precise, stable, and repeatable time settings, a significant step up from older analog or less sophisticated simulators.
Trip Time Simulation: User-selectable trip time within the range of 20-100ms, matching the critical protection operation window.
Close Time Simulation: Configurable closing time selection between 20-200ms.
Tripping Coil Simulation: Accurately simulates the electrical load presented to the protection relay's trip output by offering selectable tripping coil impedances (440Ω, 220Ω, 110Ω) and compatible operating voltages (DC 220V or DC 110V). This ensures the relay sees a realistic load.
Logic & Phasing Control: Can handle input signal logic and select between three-phase or phase-phase operation, mirroring real-world protection schemes.
Contact Simulation: Provides simulated Normally Open (NO) and Normally Closed (NC) auxiliary contacts rated at AC 220V / 5A, used for signaling trip/close status back to the protection scheme or SCADA.
Robust Power: Operates from a standard AC 200V ±10% supply.
Contrasting Traditional vs. Simulated Testing:
Feature | Traditional Whole-Set Testing | ZXMN-B Simulator Testing |
Breaker Wear | Significant wear per trip/close cycle | Zero wear on the HV circuit breaker |
Test Speed | Slower (requires breaker operation/recovery time) | Faster (instantaneous simulation, rapid cycling) |
Downtime | Higher (breaker unavailable during tests) | Minimal (breaker remains in service) |
Safety | Higher exposure during HV operations | Reduced exposure (simulated operation) |
Timing Precision | Subject to breaker condition/variability | Highly precise & repeatable (digital settings) |
Coil Load Test | Tests actual coil | Simulates specific coil impedances (440Ω, 220Ω, 110Ω) |
Cost | High (breaker maintenance, downtime cost) | Lower operational cost (protects asset) |
Application & Value for Technicians:
For technicians and protection engineers, the ZXMN-B is an indispensable tool for:
Commissioning: Thoroughly testing new protection schemes without damaging new breakers.
Routine Maintenance: Verifying relay and panel logic/timing annually or after modifications.
Troubleshooting: Safely isolating and testing protection logic without involving the HV switchyard.
Training: Providing a safe and controlled environment to demonstrate protection scheme operation.
The ZXMN-B Circuit Breaker Simulator represents a smarter approach to power system protection testing. By providing a highly configurable, precise, and reliable simulation of circuit breaker trip and close actions – including critical timing, coil loading, and auxiliary contacts – it effectively eliminates the major drawbacks of traditional whole-set testing methods. Its ability to protect valuable HV assets, enhance safety, and significantly improve testing efficiency makes it a vital instrument for any team responsible for maintaining reliable power system protection.
