ZXMN-A Simulator Circuit Breaker: Revolutionizing Relay Protection Testing
For power system protection engineers and testing technicians, efficiently and safely validating relay protection schemes is paramount. Traditional methods involving repeated physical operation of actual circuit breakers during comprehensive ("whole set") tests present significant drawbacks: accelerated wear and tear on critical and expensive breakers, extended testing times, safety concerns, and operational inconvenience. The ZXMN-A Simulator Circuit Breaker Device emerges as a sophisticated solution designed specifically to overcome these challenges and elevate relay protection testing practices.
Core Functionality: Precision Simulation, Real-World Benefits

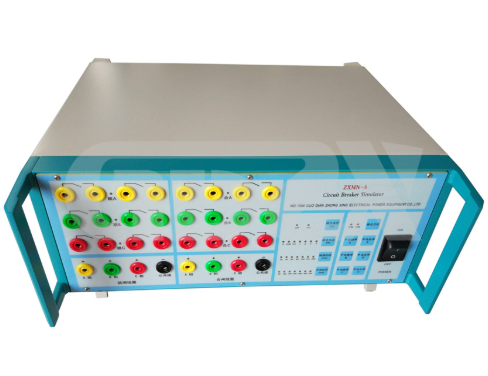

The ZXMN-A fundamentally replaces the physical circuit breaker during relay protection device testing sequences. It accurately simulates both tripping and closing operations triggered by the protection relay outputs or a connected relay protection tester. This simulation capability delivers tangible advantages:
Extended Breaker Lifespan: Dramatically reduces the number of mechanical switching cycles imposed on actual breakers during testing, minimizing wear and maintenance costs.
Enhanced Testing Efficiency: Significantly shortens overall test duration by eliminating the time lag and setup associated with physical breaker operations. Complex test sequences are executed faster.
Improved Operational Safety: Removes personnel from proximity to high-energy switching operations during repetitive tests, mitigating inherent risks.
Unparalleled Convenience: Eliminates the logistical burden and potential hazards of repeatedly engaging/disengaging the actual breaker, especially in live substation environments.
Live System Verification (Key Advantage): Crucially, the ZXMN-A enables non-stop power verification. When used with a compatible relay protection tester, protection logic and settings can be validated without de-energizing the primary system, significantly boosting power supply reliability.
Technical Prowess Under the Hood
The ZXMN-A combines robust engineering with user-centric design:
Intelligent Control: A dedicated microcontroller forms the core, ensuring precise timing control and logic execution.
Robust & Isolated Design: Input circuits feature strong isolation (withstanding 220kV AC/DC) from the microcontroller and operator interface. Integrated circuits, opto-couplers, and solid-state components create a reliable, stable weak-current control loop. The instrument remains electrically disconnected when powered off, enhancing long-term safety.
User-Friendly Interface: An embedded touch keyboard and clear indicator lights provide intuitive operation. Voice prompts offer immediate auditory feedback – a single beep confirms correct operation, while three beeps signal an error.
Comprehensive Simulation Capabilities:
Trip Methods: Simulates both Phase Segregated (Split Phase) and Three-Phase tripping.
Operating Voltages: Supports common DC control voltages: 110V DC and 220V DC.
Trip Current Simulation: Selectable burden currents: 0A, 0.25A, 0.5A, 1A, 2A, 4A, 5A.
Precise Timing Control:
Trip Time: Adjustable in steps: 20ms, 40ms, 60ms, 80ms, 100ms, 110ms, 200ms.
Close Time: Adjustable in steps: 50ms, 100ms, 150ms, 200ms, 300ms, 400ms, 500ms.
High Timing Accuracy: Single contact operation timing error ≤ ±1ms; Breaker operation time simulation error ≤ ±2ms.
Auxiliary Contact Simulation: Provides simulated Normally Open (NO) / Normally Closed (NC) auxiliary contacts rated 220V AC / 5A.
ZXMN-A Simulator vs. Traditional Physical Breaker Testing: A Clear Comparison
Feature | Traditional Physical Breaker Testing | ZXMN-A Simulator Circuit Breaker |
Breaker Wear & Tear | High (Direct mechanical operations) | Negligible (No physical operation) |
Test Duration | Long (Mechanical delay, setup time) | Short (Fast electronic simulation) |
Operator Safety | Risk during repeated HV switching | Enhanced (Removed from HV switching) |
Convenience | Low (Manual engagement, logistics) | High (Integrated, programmable) |
Live System Testing | Generally requires outage | Enabled (Non-stop power verification) |
Timing Precision | Subject to mechanical variance | High Precision (≤ ±1ms / ±2ms) |
Trip/Close Control | Limited by physical breaker | Fully Configurable (Times, Currents) |
Cost (Long Term) | Higher (Maintenance, potential damage) | Lower (Protects assets, efficient) |
Conclusion: The Smart Choice for Modern Protection Testing
The ZXMN-A Simulator Circuit Breaker Device is not merely a convenience tool; it represents a significant technological advancement in relay protection testing methodology. By replacing the physical breaker with a highly accurate, configurable, and safe electronic simulator, it directly addresses the core inefficiencies and risks of traditional approaches. Its ability to perform non-stop verification enhances grid reliability, while features like precise timing control, configurable burdens, and a user-friendly interface make it an indispensable asset for protection engineers and testing crews. For utilities and service companies aiming to optimize testing procedures, extend critical asset life, improve personnel safety, and maximize system uptime, the ZXMN-A offers a compelling and technically superior solution.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
