Advanced Circuit Breaker Simulation for Enhanced Protection Testing Efficiency

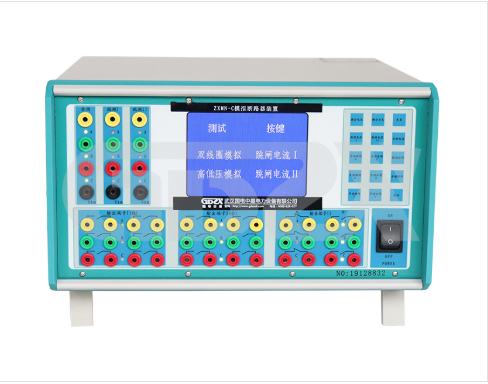

Testing relay protection schemes traditionally requires the repeated operation of actual circuit breakers. This process is time-consuming, accelerates wear on expensive primary equipment, introduces safety risks, and necessitates potentially disruptive outages. The ZXMN-C Circuit Breaker Simulator emerges as a sophisticated solution, designed specifically to overcome these limitations during comprehensive relay protection testing and commissioning.
Core Functionality:
The ZXMN-C replicates the electrical behavior of a high-voltage circuit breaker within a protection scheme. During relay test sequences (e.g., end-to-end tests, breaker failure tests, logic verification), it intercepts the trip and close commands issued by the protection relay(s). Instead of energizing the actual breaker's coils, the ZXMN-C simulates the breaker's response:
Coil Simulation: It provides configurable, realistic load (DC 110V or 220V, currents selectable from 0A to 5A) to the relay's trip and close output contacts.
Timing Simulation: It introduces programmable time delays (Trip: 20-200ms; Close: 50-500ms; ±3ms accuracy) to mimic the breaker's inherent operating time.
Contact Simulation: Its internal contacts change state (simulating breaker main contacts) after the configured delay, providing feedback signals back into the protection scheme or test equipment (AC 220V / 5A rating).
Advanced Functions: Supports independent simulation of dual trip coils and critical functions like Breaker Failure Initiation and Reset.
Contrasting Traditional vs. Simulated Testing:
Feature | Traditional Testing (Actual Breaker) | Testing with ZXMN-C Simulator |
Breaker Wear & Tear | High (Physical operations cause wear) | None (Breaker remains static) |
Testing Time | Longer (Waiting for physical operations) | Shorter (Instantaneous simulation) |
Operational Risk | Higher (Moving parts, high energy) | Lower (Confined to test signals) |
Outage Requirement | Often Required (For primary equipment tests) | Minimized / Eliminated (Live system possible) |
Test Flexibility | Limited by breaker constraints | High (Easy repeatability, varied params) |
Cost of Testing | Higher (Maintenance, outage cost, time) | Lower (Reduced wear, faster tests) |
Parameter Control | Fixed (Breaker's inherent characteristics) | Fully Configurable (Times, currents) |
Key Technical Advantages of the ZXMN-C:
Robust & Isolated Design: Utilizes a microcontroller core with opto-coupling and solid-state components for control. Critical input circuits feature 1.5kV isolation. The unit is completely disconnected from inputs when powered off, preventing accidental damage during idle periods – a significant safety and reliability enhancement.
Precision Timing: Microcontroller control ensures highly accurate simulation of breaker operating times (±3ms), crucial for testing modern, high-speed protection schemes and coordination.
User-Friendly Interface: Features an embedded touch keypad and high-resolution LCD for intuitive parameter selection and status monitoring.
Operational Feedback: Audible cues ("dip" for normal operation, "dip-dip-dip" for errors) provide immediate feedback during testing.
Wide Compatibility: Designed to work seamlessly with dedicated relay test sets, enabling comprehensive "live" system testing without de-energizing the protected circuit.
Comprehensive Simulation: Supports both single-phase (A, B, C) and three-phase trip/close operations, mirroring real-world protection scenarios.
Technical Specifications Summary:
Supply Voltage: AC 220V ±10%, 50Hz, < 0.5A
Trip/Close Voltage: DC 110V or DC 220V
Trip/Close Current: Selectable: 0A, 0.25A, 0.5A, 1A, 2A, 4A, 5A
Trip Time Delay: 20ms, 40ms, 60ms, 80ms, 100ms, 110ms, 200ms (±3ms)
Close Time Delay: 50ms, 100ms, 150ms, 200ms, 300ms, 400ms, 500ms (±3ms)
Aux. Contact Rating: AC 220V, 5A (NO/NC)
Dimensions (Instrument): 400 x 380 x 205 mm (W x D x H)
Weight: 11 kg
Implementation and Benefits:
The ZXMN-C integrates directly into the protection scheme's trip/close circuit during testing. By simulating the breaker's electrical response with high fidelity and configurable parameters, it delivers substantial benefits:
1.Extended Breaker Lifespan: Dramatically reduces mechanical operations during testing and commissioning.
2.Increased Testing Efficiency: Eliminates wait times for breaker operations, speeding up test sequences significantly.
3.Enhanced Safety: Minimizes personnel exposure to high-voltage switchgear during repetitive testing phases.
4.Improved System Availability: Facilitates "live" testing (in conjunction with a test set) without taking circuits out of service, boosting overall network reliability.
5.Superior Test Coverage: Enables easy repetition of tests with varied parameters (times, currents, phases) for thorough validation.
6.Reduced Operational Costs: Lowers maintenance costs associated with breaker wear and minimizes outage-related costs.
The ZXMN-C Circuit Breaker Simulator represents a vital tool for modern protection engineering teams. Moving beyond the limitations and costs associated with physically operating breakers during testing, it provides a safe, efficient, highly accurate, and configurable simulation environment. By significantly reducing wear on primary assets, accelerating test procedures, enhancing safety, and improving system reliability, the ZXMN-C delivers a compelling return on investment and is essential for rigorous and comprehensive protection scheme validation.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
