Streamlining Thermal Protection: The ZXRC-III Electronic Thermal Relay Calibrato

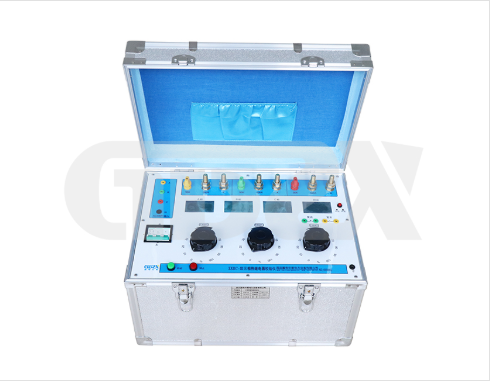

Electrical systems rely heavily on thermal relays and motor protection devices (MPDs) to prevent costly damage from overloads and phase failures. Accurate calibration of these critical components is non-negotiable for safety and operational continuity. While traditional methods exist, the ZXRC-III Electronic Thermal Relay Calibrator represents a significant technological leap, offering efficiency, power, and precision tailored for demanding industrial environments like power generation, railways, petrochemical plants, and mining.
Beyond the Basics: Core Capabilities
The ZXRC-III distinguishes itself through a robust feature set designed for real-world testing scenarios:
1.High-Power Three-Phase Simulation: Simultaneously outputs 0-500A AC per phase (often customizable higher), crucial for accurately testing protection devices under realistic load conditions that single-phase testers cannot replicate.
2.Synchronized Timing Measurement: Directly measures the action time of thermal relays, thermocouples, andMPDs with its integrated high-precision digital timer (0-999.999s, 0.2% accuracy), essential for verifying time-current characteristics.
3.Comprehensive Contact Verification: Built-in detection for both Normally Open (NO) and Normally Closed (NC) contacts, ensuring the relay's signaling function activates correctly upon trip.
4.Enhanced Productivity: Unique capability to connect multiple calibrators in series, dramatically increasing testing throughput for large-scale maintenance operations.
Precision Instrumentation: Key Technical Specifications
AC Current Output: 0 - 500A (Standard, customizable ranges available)
Digital AC Ammeter: 4½ digit display, 0.5 Class Accuracy – Ensures reliable measurement of the applied test current.
Digital Timer Range: 0 ~ 999.999 seconds
Digital Timer Accuracy: Class 0.2 – Exceptional precision for critical timing verification.
Portability: Compact footprint (44 × 30 × 34 cm) and manageable weight (7 kg) facilitate movement between test sites.
The ZXRC-III Advantage: A Clear Comparison
Let's contrast the ZXRC-III with older or less capable methods:
Feature | Traditional Methods (e.g., Variable Transformers + Separate Meters/Timers) | Basic Single-Phase Testers | ZXRC-III Electronic Calibrator |
Phase Output | Often Single-Phase or cumbersome 3-phase setup | Single-Phase Only | Simultaneous Three-Phase 0-500A |
Output Power | Variable, often limited, unstable | Typically Lower (<100A) | High, Stable, Adjustable |
Timing | Requires separate, potentially less accurate timer | May lack integrated timing | Integrated High-Precision (0.2%) Timer |
Contact Test | Manual verification with multimeters | Basic (often only NO or NC) | Automatic NO/NC Detection |
Efficiency | Slow setup, single-device testing | Single-device testing | Parallel Testing Possible (Multiple Units) |
Portability | Bulky, multiple components | Usually Portable | Portable & Integrated (7kg) |
Accuracy | Dependent on separate meter/timer quality | Variable | High (0.5% Ammeter, 0.2% Timer) |
Why Technicians Choose the ZXRC-III
1.Speed & Efficiency: Simultaneous three-phase output, integrated timing/contact test, and parallel operation capability drastically reduce calibration time per device, especially during plant shutdowns or large-scale maintenance.
2.Accuracy & Reliability: High-precision meters (0.5 Class) and timers (0.2% accuracy) ensure calibrations meet stringent standards, reducing the risk of nuisance trips or failure to operate.
3.Realistic Testing: The ability to generate high, stable three-phase currents is essential for verifying protection devices under conditions mimicking actual motor loads and faults.
4.Rugged Portability: Designed for field use in harsh industrial environments (power stations, substations, factory floors), its integrated design and manageable weight are significant advantages over bulky alternatives.
5.Simplified Operation: Consolidates multiple test functions (current source, ammeter, timer, contact tester) into one intuitive unit, minimizing setup complexity and potential error.
For technicians responsible for the reliability and safety of electrical systems, the ZXRC-III Electronic Thermal Relay Calibrator is far more than just a current source. It's a comprehensive, high-precision, and efficient solution specifically engineered for the demanding task of calibrating thermal overload relays and motor protection devices. By offering powerful, stable three-phase output, integrated high-accuracy timing and contact verification, and unique productivity features like parallel operation, the ZXRC-III sets a new standard, replacing cumbersome traditional setups and outperforming basic testers. It is an indispensable tool for ensuring protective devices function correctly, safeguarding critical motors and electrical infrastructure across diverse industrial sectors.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
