Precision in the Field: The ZXHL-100A Contact Resistance Tester for Modern Power Systems
Introduction: The Critical Role of Contact Resistance Measurement
In the high-stakes world of electrical power transmission and distribution, the integrity of switching control equipment (circuit breakers, disconnect switches, etc.) is paramount. A key indicator of this integrity is the contact resistance within the main current path. Excessive resistance leads to localized heating, energy loss, accelerated contact degradation, and ultimately, catastrophic failure. Accurate measurement of loop (contact) resistance is therefore not just a test, but a vital preventive maintenance procedure mandated by standards like DL/T845.4-2004. This is where dedicated, high-performance testers like the ZXHL-100A prove indispensable.
The ZXHL-100A: Engineered for Accuracy and Reliability

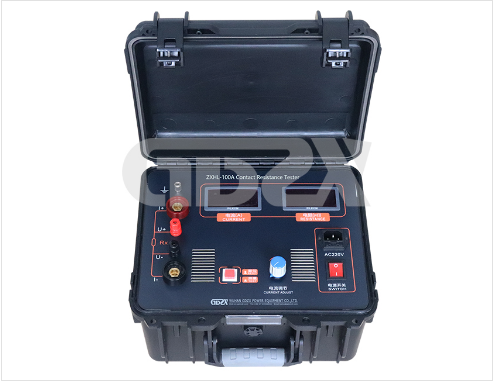

The ZXHL-100A Contact Resistance Tester is designed specifically to meet the rigorous demands of modern power system maintenance and quality control. Unlike generic multimeters or older generation testers, it delivers the precision, stability, and robustness required for reliable field and factory assessments.
Key Advantages & Technical Differentiation:
True High-Current DC Measurement (100A Continuous):
The Problem with Pulses: Older testers often relied on pulsed power supplies to generate high test currents. While easier on the instrument's power supply, pulsed currents can be insufficient to effectively break down the thin, resistive oxide films (micro-arcing) that naturally form on contact surfaces, leading to falsely low resistance readings.
The ZXHL-100A Solution: Utilizing advanced high-frequency switching power supply technology, the ZXHL-100A delivers a continuous, stable DC 100A test current, precisely as recommended by national standards (DL/T845.4-2004). This sustained current effectively "punches through" surface oxides, ensuring the measurement reflects the true, bulk metallic contact resistance. This is crucial for identifying contacts that might pass a pulsed test but fail under actual load conditions.
Benefit: Significantly improved measurement accuracy and reliability, directly correlating to the contact's performance under operational loads.
Exceptional Anti-Interference Capability:
The Challenge: Substations and switchyards are electrically noisy environments filled with electromagnetic interference (EMI) from transformers, switchgear operations, and power lines. This noise can swamp sensitive measurement circuits, causing unstable or erroneous readings.
The ZXHL-100A Solution: Sophisticated digital circuit technology provides outstanding noise immunity. Even in high-interference scenarios, the last digit of the displayed resistance value exhibits minimal fluctuation, typically stabilizing within ±1 count (±1μΩ). This ensures confidence in the reading, regardless of the challenging electrical environment.
Benefit: Reliable measurements are possible directly at the equipment, eliminating the need to move components to shielded environments and speeding up testing.
Enhanced Stability & Longevity:
The Weakness: Temperature fluctuations and physical vibration (common during transport and field use) can destabilize measurements and damage internal components in less robust instruments.
The ZXHL-100A Solution: Precision resistors with low temperature coefficients minimize drift due to ambient temperature changes. Crucially, the use of military-grade connectors provides superior vibration resistance and long-term connection reliability. The robust construction ensures consistent performance over years of demanding use.
Benefit: Reduced measurement drift, longer instrument service life, and lower cost of ownership.
Practicality for Field Use:
Comparison to Bulk: High-current testers historically tended to be large and heavy, making them cumbersome for field technicians.
The ZXHL-100A Advantage: Engineered for portability with dimensions of just 300x270x200 mm and a weight of 5kg (excluding accessories), it offers high-current capability in a package easily transported to any site.
Technical Specifications at a Glance:
Parameter | Specification |
Measurement Range | 1 μΩ to 1999 μΩ |
Resolution | 1 μΩ |
Test Current | DC 100A (Continuous) |
Measurement Accuracy | ±(0.5% of Reading + 1 Digit) |
Display | 3.5 Digit LCD (Resistance) |
Power Supply | AC 220V ±10%, 50Hz |
Operating Temp. | 10°C to 40°C |
Operating Humidity | ≤ 80% RH |
Dimensions (HxWxD) | 300 x 270 x 200 mm |
Weight | 5 kg (excluding accessories) |
Conclusion: The Essential Tool for Switchgear Health
The ZXHL-100A Contact Resistance Tester represents a significant advancement over older methodologies. By delivering a true, continuous 100A DC current, it overcomes the limitations of pulsed testers, ensuring accurate assessment of contact integrity by effectively breaking down surface oxides. Combined with its exceptional anti-interference performance, stability, ruggedness (military connectors), and field-portable design, it directly addresses the core challenges faced by technicians and engineers maintaining and verifying high-voltage switching equipment. For organizations committed to power system reliability, safety, and adherence to standards like DL/T845.4-2004, the ZXHL-100A is not just a tester; it's an essential investment in preventative maintenance and quality assurance. Its ability to provide precise, stable readings under real-world conditions makes it the instrument of choice for confident assessment of critical switchgear contacts.
