The Continuous Current Advantage: ZXHL-200P for Reliable Contact Resistance Meas

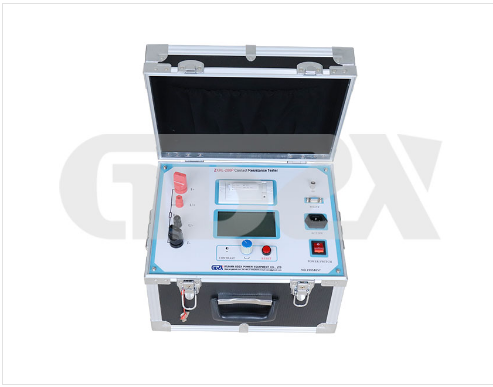

Accurate measurement of contact resistance in high-voltage switching equipment (circuit breakers, disconnectors) is critical. Excessive resistance indicates problems like contact erosion, contamination, or poor pressure, leading to overheating, energy loss, and catastrophic failure. While various testers exist, the ZXHL-200P Contact Resistance Tester distinguishes itself through its application of high-frequency switching power supply technology and robust digital processing, specifically addressing key limitations of traditional methods.
The Challenge: Oxidation and Pulsed Power Limitations
Many contact resistance testers, particularly older or budget models, rely on pulsed current outputs. While sufficient for clean, new contacts, this approach has a significant weakness: oxidation layers. A brief pulse often lacks the energy and duration to effectively break down the thin, high-resistance oxide films that naturally form on contact surfaces over time. This results in falsely low current application and consequently, inaccurately low resistance readings, masking potential problems. Technicians might get a "pass" reading on a contact that is actually degraded.
ZXHL-200P: Engineered for Accuracy and Stability
The ZXHL-200P tackles this core challenge head-on:
Continuous High-Current Output (DC 50A/100A/150A/200A): This is its defining feature. Unlike pulsed testers, it delivers a sustained, stable DC current. This provides the necessary energy and duration to effectively break down or puncture surface oxidation layers, ensuring the current flows through the actual metal contact material. The result is a true representation of the contact's inherent resistance.
Precision Measurement System: Leveraging double-channel high-speed 16-bit Σ-Δ AD sampling and advanced digital signal processing (DSP), the ZXHL-200P achieves exceptional resolution (down to 0.01μΩ) and accuracy (±(0.5% rd + 2 digits)). This high resolution is crucial for detecting subtle changes in resistance that signal early degradation.
Unwavering Stability: Operating in electrically noisy substation environments is a reality. The ZXHL-200P is engineered for stability, with its LCD display fluctuating by less than ±1 digit (±1 count) even under strong electromagnetic interference. This ensures consistent, reproducible readings technicians can trust.
Intelligent Operation & Robustness:
Auto-Ranging: The high-performance CPU automatically selects the optimal measurement range based on the signal, maximizing accuracy across its wide range (0-2999.9μΩ).
Temperature Management: Integrated temperature compensation minimizes drift caused by ambient temperature changes. Crucially, an over-temperature protection circuit automatically halts current output if internal limits are exceeded, safeguarding the instrument.
Built for the Field: Key components utilize high-quality imports, contributing to overall reliability. Its manageable size (380x300x260 mm) and weight (10kg) enhance portability compared to bulkier alternatives.
Key Comparisons & Why They Matter:
| Feature | Traditional Pulsed Current Testers | ZXHL-200P Contact Resistance Tester | Advantage for ZXHL-200P |
|---|---|---|---|
| Current Output | Short-duration Pulse | Continuous DC (50A, 100A, 150A, 200A) | Effectively breaks down oxidation layers for true resistance measurement. |
| Accuracy on Oxidized Contacts | Often Inaccurate (Falsely Low) | Highly Accurate | Prevents missed failures, ensures reliable assessment. |
| Stability (EMI) | Prone to fluctuation | < ±1 Digit fluctuation | Trustworthy readings in noisy electrical environments. |
| Resolution | Typically lower (e.g., 0.1μΩ) | Up to 0.01μΩ | Detects finer resistance changes, enabling predictive maintenance. |
| Output Duration | Fixed, very short pulse | Adjustable (5s - 599s) | Allows sufficient time for stabilization and breakdown; necessary for larger contacts/oxidized surfaces. |
| Thermal Safety | Often basic or absent | Intelligent Over-Temperature Protection | Prevents instrument damage during prolonged high-current tests. |
Practical Benefits for Technicians:
Confident Diagnostics: Obtain true contact resistance values, even on older or exposed contacts, leading to accurate pass/fail decisions and targeted maintenance.
Efficiency: Auto-ranging and the intuitive rotary mouse interface streamline the testing process. Save up to 200 results directly on the device.
Data Management: USB and RS232 interfaces allow easy transfer of results to a PC for further analysis, reporting, and trend tracking.
Durability: Designed with quality components and temperature compensation for reliable performance in typical substation conditions (-10°C to 40°C, ≤80% RH).
Safety: Built-in protection mechanisms enhance operational safety.
Conclusion:
The ZXHL-200P Contact Resistance Tester represents a significant advancement for power system technicians responsible for maintaining high-voltage switchgear. By replacing inadequate pulsed current with stable, continuous high DC current, it overcomes the fundamental limitation of accurately measuring oxidized contacts. Coupled with high precision, excellent stability, intelligent features, and robust construction, the ZXHL-200P provides the reliable data necessary to ensure the safety, efficiency, and longevity of critical power infrastructure. For testing demanding high-current applications or diagnosing problematic contacts, its continuous current capability offers a clear technical advantage over traditional pulsed methods.
