Advanced High-Voltage Circuit Breaker Analyzer: ZXKC-HB Technical Evaluation

The reliable operation of high-voltage circuit breakers (HVCBs) is paramount for power system security. These critical devices perform both control and protection functions, and their mechanical characteristics are key indicators of overall performance and readiness. Traditional testing methods often involve multiple instruments and complex setups. The ZXKC-HB High-Voltage Switch Comprehensive Test Analyzer represents a significant technological leap, offering a comprehensive, integrated solution for testing the mechanical parameters of virtually all HV switchgear types (SF6, Vacuum, Oil, GIS) against stringent standards like GB1984-2003 and DL/T846.3-2017.

Core Performance & Features: Beyond Conventional Testers
The ZXKC-HB distinguishes itself through its integration, processing power, and versatility:

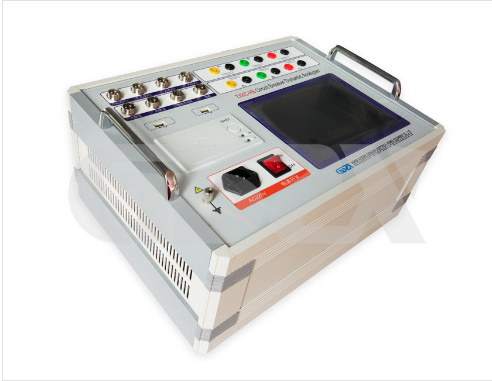

Robust Embedded Platform: Unlike simpler microcontroller-based testers, the ZXKC-HB utilizes an industrial-grade embedded system (Cortex-A8 @ 1GHz, 1GB RAM) running a full Windows OS. This provides rapid boot-up (<16s), a large, intuitive 9" color touchscreen interface supporting multilingual input, and substantial data handling capabilities – a significant usability and processing advantage over basic units.

Integrated Power Source: Eliminating the need for cumbersome external DC sources common in traditional setups, the ZXKC-HB incorporates a powerful, adjustable DC source (6-270V, 20A). This allows direct low-voltage operation testing and coil voltage characterization on-site, streamlining the testing process considerably.

Comprehensive Sensor Suite & Universal Compatibility: The instrument supports a wide array of sensors (Linear, Rotational, Universal, Laser - optional) with dedicated fixtures, enabling straightforward installation on virtually any CB type globally. This flexibility surpasses testers limited to specific sensor types or breaker models.

Simultaneous Multi-Parameter Acquisition: A single breaker operation yields a complete dataset and graphical traces – a stark contrast to sequential testing often required by older equipment. Key simultaneous measurements include:

12x Time Channels: Measures main/auxiliary contact timing, opening/closing times, phase/internal synchronism (resolution down to 0.01ms), contact bounce (time & count). Timing range extends up to 200s with high accuracy (0.05%±1 digit within 1000ms).

3/6x Pre-Insertion Resistors: Measures resistor value (30Ω-10kΩ, ±1% accuracy), insertion timing, and associated synchronism.

1-3x Motion Parameters: Measures travel, overtravel, rebound, and calculates critical speeds (instantaneous parting/speed, average speed over defined intervals). Supports various sensors (Linear: 0-50mm/0.1mm, Rotational: 0-1000mm equiv./0.08°, Laser: 0-15.00m/s).

Coil Current & Resistance: Monitors coil current (20A max, 0.01A res.) and measures resistance (0-2000Ω, 0.01Ω res.).

Advanced Data Analysis & Management: Features like automated envelope curve generation for deviation analysis and switch vibration frequency analysis provide deeper diagnostic insights than basic travel/time plots. Storage for 30,000 test records (expandable), integrated high-speed thermal printer, USB ports (for U2B storage/mouse), and optional RS232/WiFi offer superior data handling compared to instruments with limited storage or connectivity.

Key Technical Specifications & Capabilities:

Timing: 12 channels, Internal Trigger: 0.10ms-200s, External Trigger: 0.01ms-200s. Synchronism: 0.10ms-99ms (0.01ms res.).

Resistance: 3/6 Channels, 30Ω-10kΩ, ±1% accuracy, 0.1Ω resolution.

Speed: Range/Resolution dependent on sensor (e.g., 0.001-25.00 m/s).

Travel: Sensor-dependent (Linear: 0-50mm/0.1mm; Rotational: 0-1000mm equiv./0.08°; Acceleration: 0-300mm/0.1mm). Critical note: Rotational sensor has ~15° dead zone; optimal install shows 160-200°.

Coils: DC Source: 6-270V adjustable, 20A (short-term). Coil Res: 0-2000Ω (0.01Ω res.). Coil Current: 20A max (0.01A res.).

Isolator/GIS Testing: Measures timing, synchronism, bounce. Voltage output 6-270V DC, test duration up to 200s.

Robustness: Operates reliably within 500kV substations (advanced internal EMI suppression). Environmental: -20°C to +50°C, ≤90% RH.

Physical: 400x263x175mm, Powered: AC 220V ±10%, 50Hz ±10%.

Comparison Context: Why ZXKC-HB Stands Out

Versus Basic Timing Testers: The ZXKC-HB offers a comprehensive suite (Time, Travel, Speed, Resistance, Coil, Vibration) in one instrument with superior processing, analysis (envelopes), and data management, far exceeding the capabilities of devices focused only on contact timing.

Versus Test Sets Requiring External Power: The integrated high-current adjustable DC source is a major operational advantage, removing dependency on separate, often bulky, battery packs or rectifiers.

Versus Units with Limited Sensor Support: Support for Linear, Rotational, Universal, and Laser sensors ensures compatibility with nearly any breaker mechanism design, a flexibility not always found.

Versus Low-Capacity Units: The ability to store 30,000 tests, use U2B drives, and print directly provides significant logistical benefits over instruments with minimal storage or no printing.

Versus Non-Analytical Units: Features like automatic envelope generation and vibration analysis transform raw data into actionable diagnostic information, aiding predictive maintenance more effectively than simple waveform capture.

Conclusion
      The ZXKC-HB High-Voltage Switch Comprehensive Test Analyzer represents a state-of-the-art, integrated platform for evaluating the critical mechanical characteristics of high-voltage circuit breakers. Its combination of processing power (embedded Windows), integrated high-power DC source, universal sensor compatibility, simultaneous multi-parameter acquisition (12 time, 6 resistance, 3 motion channels), advanced analysis tools (envelopes, vibration), and robust data management sets a new benchmark for efficiency, depth of insight, and user convenience in the field. For technicians and engineers responsible for ensuring the reliability of critical power system protection devices, the ZXKC-HB delivers a significant performance and diagnostic advantage over conventional testing approaches and less capable instruments.
