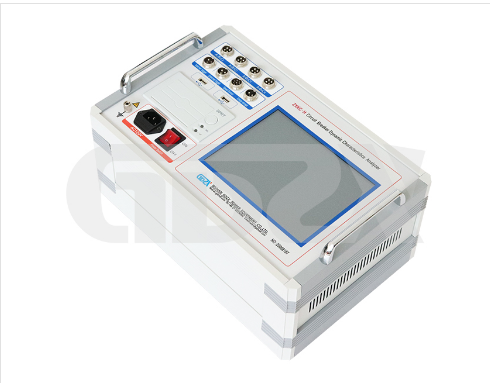

ZXKC-H: A Comprehensive Analysis Solution for High-Voltage Circuit Breaker Performance
Modernizing Grid Reliability through Advanced Mechanical Characteristic Testing
Introduction
High-voltage circuit breakers (HVCBs) are critical guardians of electrical grid stability, performing vital control and protection functions. Their mechanical characteristics – timing, speed, travel, and synchronization – are definitive indicators of health and reliability. Traditional testing methods often involve fragmented tools, complex setups, and limited data capture. The ZXKC-H High-Voltage Switch Comprehensive Characteristic Tester represents a significant technological leap, integrating precision measurement, user-centric design, and robust analysis capabilities into a single, portable platform compliant with GB1984-2003 and DL/T846.3-2004 standards.
Technical Superiority & Key Differentiators
The ZXKC-H stands apart through its integrated approach and advanced features, addressing limitations common in conventional test sets:
Feature | Traditional Methods/Competitors | ZXKC-H Advantage |
Measurement Scope | Often limited channels/single parameters | 12-channels (6 main + 6 auxiliary contacts). Captures all key parameters (time, speed, travel, bounce, coil current) in one operation. |
Power Supply | Requires external sources | Integrated adjustable DC power (30-260V, 20A), enabling low-voltage tests & eliminating external sources. |
Sensor Flexibility | Dedicated sensors per type | Universal compatibility: Linear (50mm), Rotary (360°), Acceleration sensors. Simple mounting. |
Data Management | Limited storage, manual transfer | 6,000 test internal storage, U Export, real-time clock. Cloud-ready data. |
Analysis | Basic numerical results | Advanced analytics: Envelope curve generation, vibration frequency analysis, phase/contact synchronization assessment. |
Usability | Complex interfaces, limited displays | 8.4" Touchscreen (Windows OS), intuitive interface. Built-in thermal printer. |
Applicability | Often specific to switch type | Universal: SF6, GIS, Vacuum, Oil circuit breakers, disconnectors. |
Core Performance Specifications:
1.Precision Timing: Measures 12-channel break/make times, contact bounce (time/count), phase/internal synchronization. Accuracy: 0.05% ±1 digit (<1000ms), Resolution: 0.01ms (internal trigger).
2.Dynamic Motion Analysis:
Speed: Instantaneous (at break/make point), customizable interval averages. Range: Up to 25.00 m/s (resolution 0.01m/s).
Travel: Contact stroke, opening distance, overtravel, rebound. Resolution: 0.1mm (linear), 0.25° (rotary).
3.Robust Power & Control:
Output: DC 30-260V (20A short-term), programmable for coil test voltages.
Input: AC/DC 10-300V external trigger (≤120A).
Main Supply: AC/DC 220V ±10%, 50Hz ±2%.
4.Environmental Resilience: Operates reliably from -20°C to +50°C at ≤90% RH, featuring 500kV substation-grade EMI immunity.
5.Compact & Connected: Dimensions: 360x260x170mm. Features USB and potential cloud connectivity.
Why ZXKC-H Enhances Grid Reliability:
1.Comprehensive Diagnosis: Single-test capture of all critical mechanical parameters provides a holistic health assessment, far exceeding fragmented traditional tests.
2.Predictive Capability: Envelope curve comparison and vibration analysis enable trend monitoring and early fault detection before catastrophic failure.
3.Unmatched Efficiency: Integrated power, universal sensors, touchscreen UI, and on-site printing drastically reduce setup time, test duration, and operator burden.
4.Future-Proof Data: Extensive storage and seamless data export facilitate long-term performance tracking, reporting, and compliance auditing per GB/DL standards.
5.Universal Application: Covers the full spectrum of modern HV switching devices found in transmission and distribution networks globally.
Conclusion：
The ZXKC-H High-Voltage Switch Comprehensive Characteristic Tester transcends the limitations of legacy equipment, offering power utilities and service providers an indispensable tool for ensuring breaker reliability. Its integrated design, advanced measurement capabilities, sophisticated analysis features, and field-proven ruggedness deliver unparalleled efficiency and diagnostic depth. By enabling precise assessment of mechanical characteristics against stringent international standards, the ZXKC-H is pivotal for proactive maintenance, minimizing downtime, and safeguarding the security of modern power systems.
GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
