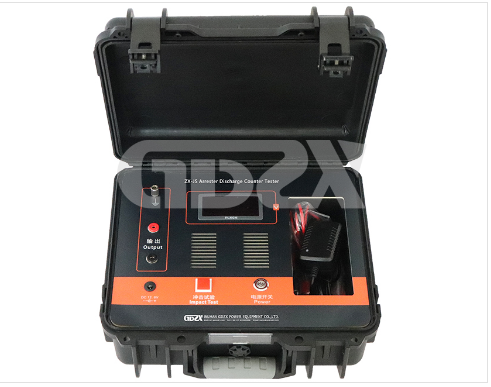

Arrester Counter Testers: Ensuring Reliability with the ZX-JS Validator

Accurate arrester discharge counter operation is a critical, yet often overlooked, component of power system health. These counters provide vital statistics on lightning strikes impacting surge arresters, forming the foundation for targeted maintenance decisions. An unreliable counter obscures the true stress history of the arrester, potentially leading to undetected degradation and increased failure risk. Traditional counter testing methods often involve cumbersome high-voltage test sets and complex setups. The ZX-JS Arrester Discharge Counter Validator addresses these challenges, offering a purpose-built solution focused on efficiency and safety.

The ZX-JS validator excels through its optimized design and performance:

Unmatched Portability: Weighing only 6 kg and measuring a compact 300×220×180 (mm), it is significantly smaller and lighter than conventional high-voltage test equipment used for similar purposes. This portability allows technicians to easily carry it to substations or pole-top locations.

Rapid, Secure Testing: Engineered for safety, it generates the necessary test pulse (> 2 kV) internally. The entire validation process is contained and straightforward. A key advantage is its ultra-fast charge time of under 1 minute, enabling quick consecutive tests – a major efficiency gain over older methods requiring lengthy capacitor charging.

Proven Accuracy: Designed specifically for counter validation, it delivers precise pulses ensuring counters increment reliably when subjected to simulated discharge events. This reliability is crucial for trusting the recorded strike data.

Key Technical Specifications (ZX-JS Validator):

Contrasting Validation Approaches:

Traditional Methods: Often repurpose general-purpose HV test sets or impulse generators. These are typically large, heavy (>20-50kg common), require complex external connections, involve significant safety clearances, and have slow charge cycles (several minutes). Setting up takes considerable time and effort.

ZX-JS Validator: A dedicated, integrated instrument. Its defining characteristics are its compact size (6kg) and ability to perform a complete test cycle within approximately 1 minute after power-on. Safety is inherent in its design, requiring minimal external setup. Technicians can validate multiple counters rapidly at different locations.

Conclusion: Efficiency and Reliability for Critical Data

The ZX-JS Arrester Discharge Counter Validator represents a significant advancement for field technicians responsible for surge arrester maintenance. By replacing cumbersome traditional test methods with a device specifically engineered for the task, it delivers unparalleled portability, speed (charge time <1 min), inherent safety, and reliable results. Accurate counter validation ensures the lightning strike data recorded is trustworthy. This data is fundamental for assessing arrester condition, planning proactive maintenance, scheduling replacements before failure, and ultimately, enhancing the overall reliability and resilience of the electrical power system. For technicians prioritizing efficient and dependable field validation, the ZX-JS is an indispensable tool.
