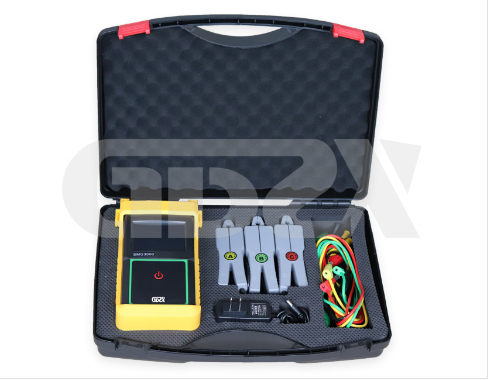

Advancing Three-Phase Analysis: The SMG3000 Phase Volt-Ampere Meter
For electrical technicians and engineers tasked with commissioning, maintaining, or troubleshooting three-phase systems, comprehensive and accurate measurement tools are paramount. While traditional single-phase meters or basic clamp meters have their place, they often fall short when analyzing complex polyphase power flow, phase relationships, and power quality. The SMG3000 Three-Phase Phase Volt-Ampere Meter addresses these limitations head-on, offering a significant leap in capability and efficiency.
Beyond Basic Measurements: Core Capabilities
The SMG3000 distinguishes itself by providing simultaneous, high-precision measurements across all three phases and the neutral conductor:
1.Comprehensive Parameter Capture: Measures all three phase voltages (V1, V2, V3) and four currents (I1, I2, I3, In) concurrently.
2.Phase Angle Analysis: Precisely determines phase angles between voltages and currents (ΦU, ΦI), enabling direct calculation of power factor and identification of phase imbalances.
3.Power Quantification: Calculates active power (W), reactive power (Var), apparent power (VA), and power factor (PF) for each phase and total system power.
4.System Characterization: Measures grid frequency, automatically determines phase sequence (ABC/CBA), and intelligently identifies transformer winding configurations and load characteristics (inductive, capacitive).
5.Visual Diagnostics: Features a crucial six-vector diagram (hexagon display) with color-coded phase sequence analysis, providing an intuitive graphical representation of system health and phase relationships – a stark advantage over numerical-only displays.
Contrasting Capabilities: SMG3000 vs. Traditional Tools
Feature | Traditional Single-Phase Meter / Basic Clamp Meter | SMG3000 Three-Phase Phase Volt-Ampere Meter |
Simultaneous Meas. | Typically single voltage & current channel | 3 Voltage + 4 Current Channels concurrently |
Phase Relationships | Limited or inferred; requires sequential measurement & calc. | Direct measurement of phase angles (U, I, Φ) |
Vector Diagram | Absent | Built-in Six-Vector Display for visual diagnostics |
Power Analysis | Single-phase only; total power requires calculation | Per-phase & Total W, Var, VA, PF directly calculated |
Load Identification | Manual interpretation needed | Automatic Inductive/Capacitive Load & Transformer ID |
Phase Sequence | Often requires separate sequence tester | Automatic Detection & Display |
Neutral Current | Rarely measured directly | Direct In Measurement included |
Display/Interface | Often basic LCD, limited navigation | 3.2" Color TFT Touchscreen for intuitive operation & visualization |
Data Handling | Minimal or none | Data Save, View, & Static Storage capabilities |
Engineered for Precision and Usability
At the heart of the SMG3000 lies a robust processing architecture combining a high-speed ARM Cortex-M3 processor with a 24-bit high-resolution ADC. This ensures both rapid measurement cycles and the high accuracy demanded in professional settings:
1.Voltage: 1-600V ±(0.5% of Range + 0.01V)
2.Current: 0.001-20A ±(0.5% of Range + 0.0001A) *(Note: ±3° phase error at 1mA-5mA)*
3.Power (W/Var/VA): 0.01W/Var/VA - 12,000 ±0.5% of Range
4.Frequency: 45-65Hz ±0.1% of Range
5.Phase Angle: 0-360° ±2° (typically, see note above for low current)
The vibrant 320x240 resolution color touchscreen transforms interaction, allowing technicians to navigate complex datasets, access the vector diagram, and configure measurements intuitively – significantly faster than navigating through nested menus on traditional devices. Extended field use is supported by a rechargeable lithium battery providing over 20 hours of continuous operation.
Practical Value for Technicians
The SMG3000 isn't just a meter; it's a diagnostic system. Its capabilities translate directly into real-world efficiency and problem-solving power:
1.Rapid Commissioning: Verify correct phase rotation, voltage levels, load balance, and power factor during installation.
2.Efficient Troubleshooting: Identify phase imbalances, neutral current issues, incorrect transformer connections (Dy11, Yy0, etc.), or poor power factor visually via the hexagon display and precise measurements.
3.Power Quality Assessment: Quantify active, reactive, and apparent power flows accurately to assess system efficiency and loading.
4.Safety & Verification: Confirm de-energized circuits (using high-sensitivity current measurement down to 1mA) and verify correct wiring before energizing complex systems.
5.Documentation: Utilize data saving functions to record measurements for reports or future comparison.
Conclusion
For technicians working on modern three-phase electrical systems, the SMG3000 Phase Volt-Ampere Meter represents a substantial upgrade over legacy tools. Its ability to capture a comprehensive set of electrical parameters simultaneously, visualize phase relationships instantly, and automatically characterize loads provides unparalleled diagnostic insight. The combination of high accuracy, robust processing, an intuitive color touch interface, and long battery life makes the SMG3000 an indispensable tool for efficient commissioning, precise maintenance, and effective troubleshooting of complex AC power systems. It consolidates the functionality of multiple instruments into a single, portable, and highly capable unit, significantly enhancing field analysis capabilities.
