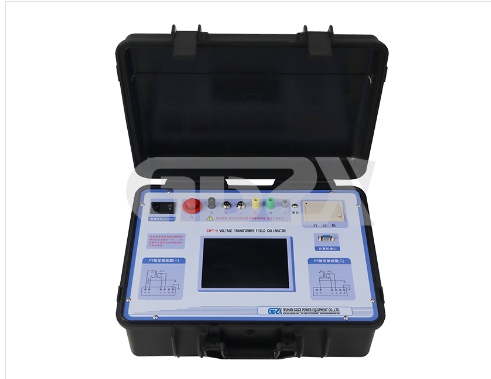

The Importance of ZXPT-H Voltage Transformer Field Calibrator
Introduction
Voltage transformers (VTs) play a critical role in power systems for measurement and protection applications, ensuring accurate voltage transformation and electrical isolation. Regular field calibration is essential to maintain their accuracy and reliability. The ZXPT-H Voltage Transformer Field Calibrator, developed by Wuhan Guodian Zhongxing Power Equipment Co., Ltd., represents a significant advancement in this field. This instrument integrates traditional differential measurement methods with modern extrapolation techniques to provide efficient and accurate on-site calibration of electromagnetic voltage transformers ranging from 6kV to 220kV/√3, with an impressive accuracy level of 0.05.
This technical article examines the ZXPT-H's features, operational capabilities, and comparative advantages over traditional calibration methods, providing valuable insights for power system technicians and engineers.
Technical Features and Specifications
The ZXPT-H incorporates several innovative features that enhance its field applicability:
Integrated Design: Unlike traditional methods requiring multiple separate components, the ZXPT-H eliminates the need for external boosters, voltage standards, load boxes, or voltage regulators. This integration significantly simplifies field operations.
Advanced Measurement Techniques: The instrument employs the voltage transformer load error curve extrapolation method referenced in JJG1021-2007 "Power Transformer" Verification Regulations, combined with low-voltage extrapolation technology and advanced measurement circuits.
Portability: Weighing only 12 kg, the device is designed for easy transportation and handling in field conditions.
High Efficiency: The calibration process for a single voltage transformer takes less than one minute, dramatically reducing downtime.
Data Management: With storage capacity for 1000 datasets, RS-232 interface for PC communication, and dedicated data management software that can integrate with power system MIS software, the ZXPT-H offers comprehensive data handling capabilities.
User-Friendly Interface: The 10.4-inch large LCD screen provides clear visualization of measurements and includes wiring diagrams and operation guides for operator convenience.
High Power Output: Despite its compact size, the instrument delivers sufficient output power to meet the capacity requirements for 220kV voltage transformer boosting.
Technical Specifications
Accuracy Class Range: 0.2, 0.5, 1
Transformer Type Compatibility: Electromagnetic voltage transformers
Internal Standard VT Ratios:
6kV/100, 6kV/√3/100/√3
10kV/100V, 10kV/√3/100/√3
35kV/100V, 35kV/√3/100/√3
110kV/100V, 110kV/√3/100/√3
220kV/100V, 220kV/√3/100/√3
Accuracy Class: 0.03%
Dimensions: 460 × 360 × 210 mm
Comparative Analysis: ZXPT-H vs. Traditional Calibration Methods
To appreciate the advancements offered by the ZXPT-H, it's instructive to compare it with conventional calibration approaches:
*Table 1: Comparison between ZXPT-H and Traditional Calibration Methods*
Equipment Requirements | Multiple components: booster, voltage standard, load box, voltage regulator | Single integrated unit |
Setup Time | Extensive time required for equipment setup and connections | Minimal setup time |
Measurement Time | Typically several minutes per transformer | <1 minute per transformer |
Portability | Bulky equipment; challenging transportation | Compact and lightweight (12 kg); easy transport |
Accuracy | Varies with equipment and setup; generally lower | High accuracy (0.05 level) |
Data Management | Manual recording; prone to errors | Automated storage (1000 sets) and PC interface |
Operator Expertise | Requires significant technical expertise | Simplified operation with guided interface |
Cost Efficiency | High equipment and operational costs | Lower overall costs due to reduced time and labor |
The comparative analysis clearly demonstrates the technical superiority of the ZXPT-H system, particularly in terms of efficiency, portability, and operational simplicity. These advantages translate into significant time savings and reduced labor requirements for field calibration tasks.
Practical Applications and Case Studies
The ZXPT-H is particularly suitable for substation field testing where space constraints and time limitations are critical factors. Its application is documented in various voltage classes, from medium-voltage (6-35kV) to high-voltage (110-220kV) systems.
Research on 750 kV capacitive voltage transformers (CVT) highlights the importance of developing cost-effective and easily transportable field calibration methods. While the ZXPT-H is specifically designed for electromagnetic voltage transformers, the principles underlying its development—emphasis on portability, reduced equipment requirements, and on-site efficiency—align with the broader industry trend toward simplified field verification procedures for high-voltage equipment.
International comparison studies, such as those between the National Center for High Voltage Measurement (NCHVM) in China and the National Measurement Institute (NMI) in Australia, have confirmed that modern calibration methods can achieve excellent agreement in voltage ratio measurements (within 16 μV/V for 110kV/√3 transformers) and phase displacement (within 13 μrad). These findings support the technical validity of advanced calibration approaches incorporated in instruments like the ZXPT-H.
Operational Considerations and Best Practices
For technicians using the ZXPT-H, several best practices can ensure optimal performance:
Pre-calibration Verification: Always verify that the instrument has undergone recent certification checks to maintain traceability to national standards.
Environmental Conditions: Be aware that extreme temperatures or humidity may affect measurement accuracy, though the instrument is designed for field use.
Connection Integrity: Ensure secure connections to prevent measurement errors caused by loose terminals or contaminated surfaces.
Regular Updates: Keep the instrument's firmware and software updated to benefit from performance improvements and new features.
Data Backup: Regularly transfer stored data to PC-based systems to prevent data loss and maintain comprehensive calibration records.
Conclusion
The ZXPT-H Voltage Transformer Field Calibrator represents a significant technological advancement in the field of electrical power system maintenance. By integrating multiple calibration functions into a single, portable unit and incorporating advanced extrapolation techniques, it addresses many limitations associated with traditional calibration methods.
For technical professionals involved in the maintenance and verification of voltage transformers, the ZXPT-H offers a compelling solution that enhances efficiency, re operational costs, and maintains high accuracy standards. As power systems continue to evolve with increasing reliability requirements, such advanced diagnostic tools will become increasingly essential for ensuring measurement accuracy and system protection.
The development of instruments like the ZXPT-H reflects a broader trend in electrical power engineering toward integrated field solutions that maintain laboratory-grade accuracy while addressing the practical challenges of field service work. This alignment of precision and practicality makes the ZXPT-H an valuable tool for modern power system technicians and engineers.
