Advanced Insulation Testing: ZX2677 Digital High-Voltage Insulation Tester
Introduction
For electrical technicians and engineers, accurate insulation resistance measurement is critical for ensuring the safety, reliability, and longevity of electrical systems. The ZX2677 Digital High-Voltage Insulation Tester represents a significant advancement in this field. This article provides a technical overview of the ZX2677, comparing its capabilities with traditional tools and highlighting its features for professional use.
Key Features and Technical Capabilities

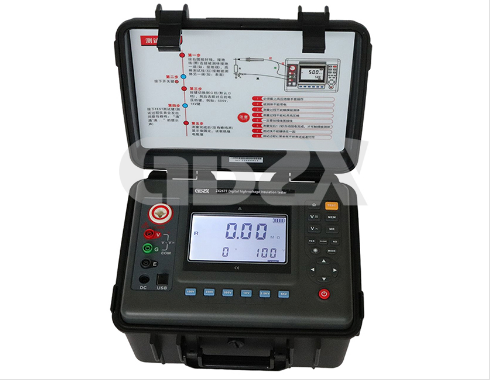

The ZX2677 is a comprehensive tool designed for demanding environments. Its core function is insulation resistance testing, with a wide range from 0.01 MΩ to an impressive 2000 GΩ. It offers six selectable test voltages from 100V to 5000V, making it versatile for testing everything from low-voltage control circuits to high-voltage cables and switchgear.
Beyond basic insulation testing, it measures AC/DC voltage and calculates diagnostic parameters like the Dielectric Absorption Ratio (DAR) and Polarization Index (PI). These are essential for assessing the condition of insulation in motors, transformers, and generators. A key technical advantage is its high short-circuit current of ≥5mA (at 5kV), which helps neutralize capacitive charging effects in large equipment, leading to faster stabilization and more accurate readings.
Comparison with Traditional and Basic Testers
To understand the ZX2677's position, it's useful to compare it with other common tools:
vs. Analog Megohmmeters:
Readability: Analog meters with a needle gauge are prone to parallax errors. The ZX2677’s large, backlit LCD with 0.01 MΩ resolution provides unambiguous digital readings.
Functionality: Analog testers typically only measure insulation resistance. The ZX2677 integrates voltage measurement, DAR/PI calculation, and data storage.
Stabilization: The high output current of the ZX2677 allows test voltages to stabilize much faster on capacitive loads compared to many lower-power analog devices.
vs. Basic Digital Insulation Testers:
Voltage Range: Many entry-level digital testers may only offer up to 1000V. The ZX2677’s 5000V capability is necessary for testing and commissioning high-voltage apparatus as per standard maintenance schedules.
Diagnostic Power: Basic models lack automated DAR/PI testing, requiring manual calculation and timing. The ZX2677 automates this process, reducing human error and saving time.
Data Management: With storage for 500 sets of data and a USB interface for PC transfer, the ZX2677 supports a data-driven maintenance strategy, unlike basic testers that only offer live readings.
Technical Highlights for the Technician
Robust Design: Rated at IP54, it is dust and water-splash resistant, suitable for harsh industrial sites. Its compliance with safety standards (IEC61010-1, CAT III 300V) ensures user protection.
Operational Efficiency: Features like programmable alarms, an automatic 15-minute shutdown, and a controllable backlight enhance field usability and battery management. The rechargeable 12.6V battery powers the unit for extended periods.
Advanced Diagnostics: The ability to automatically perform and track absorption and polarization tests is invaluable for predictive maintenance, helping identify moisture ingress, contamination, and aging insulation before catastrophic failure occurs.
Conclusion
The ZX2677 Digital High-Voltage Insulation Tester is a sophisticated, professional-grade instrument that surpasses the capabilities of traditional analog and basic digital testers. Its wide measurement range, high test voltages, robust construction, and integrated diagnostic functions make it an indispensable tool for technicians working in power utilities, industrial maintenance, and telecommunications. By providing accurate, reliable data and advanced features like DAR/PI, it empowers professionals to make informed decisions about the health of critical electrical assets.
