Advanced Insulation Testing: ZX2677E vs. Traditional Meggers

For electrical technicians and engineers, ensuring insulation integrity is a fundamental safety and reliability task. The tools for this job have evolved significantly, moving from traditional analog megohmmeters to sophisticated digital instruments. The ZX2677E Digital High-Voltage Insulation Tester represents this modern evolution, offering capabilities far beyond its predecessors.

This article provides a technical overview of the ZX2677E, contrasting its features with conventional analog Meggers to highlight its advantages in the field.

1. Testing Capabilities and Voltage Range

Traditional Megger: Typically offers a limited selection of test voltages (e.g., 500V, 1000V, 2500V). Performing tests like Dielectric Absorption Ratio (DAR) or Polarization Index (PI) requires manual calculation and timing.

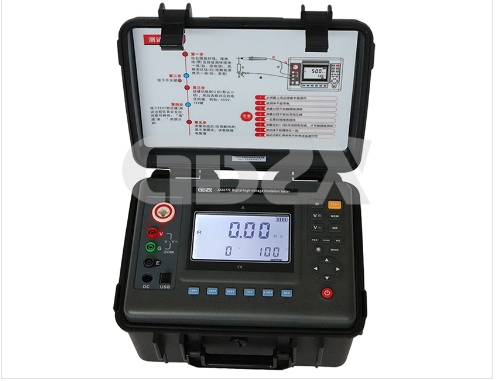

ZX2677E Insulation Tester: This instrument provides a wide range of six predefined test voltages from 250V up to 10kV, making it suitable for testing everything from low-voltage equipment to high-voltage cables and switchgear. Crucially, it has built-in functions to automatically calculate and display the DAR and PI. This eliminates manual errors, saves significant time, and provides more reliable diagnostic data on insulation health.

2. Measurement Range and Accuracy

Traditional Megger: Analog scales can be difficult to read precisely, especially at very high or low resistance values. Resolution is limited, and accuracy can be affected by parallax errors.

ZX2677E Insulation Tester: It features a massive measurement range from 0.01 MΩ to 2000 GΩ with a digital resolution of 0.01 MΩ. The large, backlit LCD display presents readings clearly and unambiguously, even in poorly lit substations or industrial environments. This high resolution and digital accuracy are essential for trending insulation resistance over time and identifying early signs of degradation.

3. Output Power and Safety

Traditional Megger: The output short-circuit current is often low, which can lead to unstable readings on capacitive test objects or in the presence of surface leakage currents.

ZX2677E Insulation Tester: With a robust output short-circuit current of ≥5mA (at 10kV), it provides superior stability when testing large capacitive loads like long cables or rotating machinery. This strong output helps "burn off" surface contamination, ensuring the reading reflects the true bulk insulation resistance.

4. Data Management and Usability

Traditional Megger: Data recording is manual. Technicians must write down readings, a process prone to errors and inefficiency, especially for time-based tests like PI.

ZX2677E Insulation Tester:

Data Storage: It can store up to 500 test groups, allowing technicians to log data directly on the instrument.

Computer Connectivity: The integrated USB interface enables data transfer to a computer for analysis, reporting, and long-term trending.

Additional Measurements: It doubles as a multimeter, capable of measuring AC voltage up to 750V and DC voltage up to 1000V.

User Alerts: Features like programable alarm thresholds, a "battery low" indicator, and automatic shutdown enhance field usability and prevent incomplete tests.

5. Build and Compliance

The ZX2677E is built for the field. Its IP54 rating provides protection against dust and water splashes. It complies with key international safety standards (IEC61010-1, CAT III 300V), ensuring it is designed for safe operation in industrial electrical environments.

Technical Comparison at a Glance

Conclusion

For technicians, upgrading from a traditional Megger to an instrument like the ZX2677E is a significant step forward in capability, efficiency, and data integrity. It transforms insulation resistance testing from a simple pass/fail check into a powerful diagnostic procedure. The automation of complex tests, combined with robust data management and a wide measurement range, makes the ZX2677E an indispensable tool for predictive maintenance and ensuring the safety and reliability of modern electrical assets.
