BY2677 Insulation Tester: Technical Review & Comparison

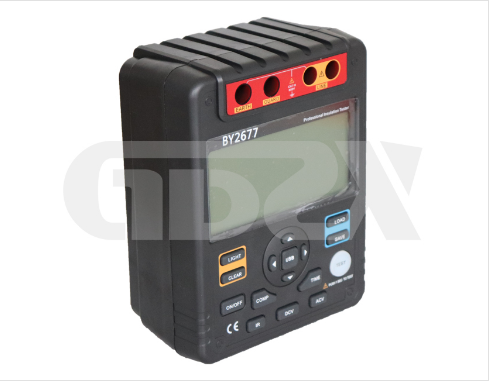

The BY2677 Digital Insulation Resistance Tester is an advanced, microprocessor-based instrument designed for reliable insulation testing in electrical systems. It combines accuracy, safety, and user-friendly features suitable for field and industrial applications.

Key Features Overview

The BY2677 complies with IEC61010 safety standards and is rated for CAT III 600V and pollution level II, ensuring safe operation in harsh environments. Key functionalities include an auto voltage release, a clear backlit display, and a bar graph for intuitive reading. Safety is enhanced with high-voltage warnings and a red indicator. The device supports automated testing with 15-minute auto power-off, 18 data storage slots, and a TIME function for scheduled measurements. Special modes like COMP (comparison measurement) and PI (polarization index) add diagnostic value, enabling ratio analysis between any two time points.

Performance and Specifications

The tester offers four test voltages: 500V, 1000V, 2500V, and 5000V, with respective measurement ranges up to 20GΩ, 40GΩ, 100GΩ, and 1000GΩ. Open-circuit voltage tolerance is within 0% to +20%. Accuracy varies with range: ±(3%+5) from 0.0MΩ to 99.9MΩ, ±(5%+5) up to 9.99GΩ, and ±(10%+5) or ±(20%+5) at higher resistances. It also measures DC and AC voltage (30–600V) with ±(2%+5) accuracy.

Comparison with Conventional Testers

Unlike basic insulation testers, the BY2677 integrates PI and COMP functions typically found in higher-end models. Its wide resistance range (up to 1000GΩ) surpasses many mid-range testers, which often cap at 200GΩ. The inclusion of a bar graph and timed testing offers visual and operational advantages over simpler devices that only provide numeric readouts. Safety features such as auto voltage release and CAT III 600V certification make it more robust than many entry-level testers, which may only meet CAT II standards.

Conclusion

The BY2677 Digital Insulation Resistance Tester stands out for its safety, functionality, and precision. Its ability to perform advanced diagnostic tests and operate under strict safety standards makes it an excellent choice for technicians requiring reliable insulation resistance measurements in demanding electrical environments.
