Advanced Insulation Testing: The BY2677E in Focus

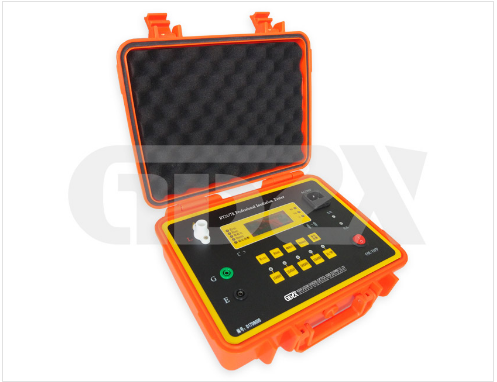

Insulation resistance testing is a critical maintenance and commissioning activity for high-voltage electrical assets such as transformers, generators, and long-distance power cables. The BY2677E Professional Insulation Tester is engineered specifically for these demanding applications, particularly in environments above 110kV where interference and large capacitive loads are common. This article provides a technical overview of the BY2677E, comparing its capabilities with general-purpose insulation testers to highlight its suitability for professional, high-capacity scenarios.

Key Features and Technical Superiority

The BY2677E distinguishes itself through a combination of high voltage, extensive measurement range, and robust features designed for precision and reliability in challenging conditions.

1.High Voltage and Extended Range: Offering test voltages of 1kV, 2.5kV, 5kV, and 10kV, the BY2677E covers a wide spectrum of testing requirements. It can measure insulation resistance up to 2 TΩ, a capability far exceeding that of standard testers typically limited to lower voltages and ranges like 1kV/200GΩ or 5kV/1TΩ. This makes it indispensable for assessing the insulation integrity of large apparatus.

2.Enhanced Capacitive Load Charging: A significant differentiator is its output short-circuit current of ≥3mA at 5kV and 10kV. Compared to standard testers with outputs often below 2mA, this higher current enables rapid charging of large capacitive loads, such as long cables and generator windings, leading to faster stabilization of readings and reduced testing time.

3.Automated Data Analysis and Timing: The instrument automatically calculates and stores key diagnostic parameters like R15s, R60s, R10min, Dielectric Absorption Ratio (DAR), and Polarization Index (PI). This automation eliminates manual calculation errors and streamlines the diagnostic process. The self-clocking function with an audible prompt every 15 seconds further aids in performing timed ratio tests accurately.

4.Superior Anti-Interference Capability: Designed for use in high-voltage substations and power plants, the BY2677E incorporates robust filtering and signal processing to maintain stable and reliable readings even under strong electromagnetic interference, a common challenge where lower-end models may fail.

Technical Specifications at a Glance

A comparison of key specifications underscores the BY2677E's position as a professional-grade tool:

Other notable specifications include a clear 3% digital LCD, automatic range shifting, and operation from a rechargeable Li-ion battery, ensuring portability for field use.

Conclusion：

For technicians working on high-voltage, high-capacity electrical systems, the choice of insulation tester is paramount. While general-purpose testers are adequate for routine low-voltage tasks, the BY2677E Professional Insulation Tester provides the necessary high voltage, extensive range, high output current, and advanced features—especially its strong anti-interference capability—required for accurate and efficient testing in complex electrical environments. Its automated functions not only enhance data accuracy but also improve on-site productivity, making it a superior tool for ensuring the reliability and safety of critical power infrastructure.
