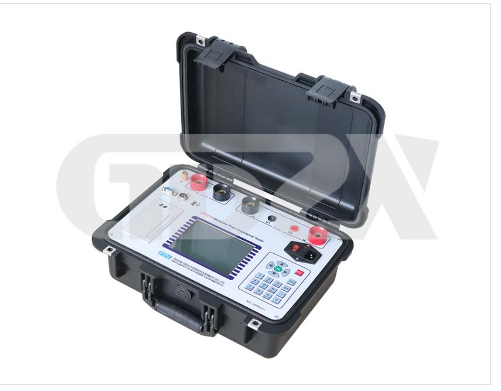

Advancements in Generator Rotor Testing: The ZXFZ-H Impedance Tester

In the field of electrical power system maintenance, accurately assessing the condition of a generator's rotor is critical for ensuring operational reliability and preventing unforeseen failures. Traditional methods for measuring rotor impedance often involved multiple instruments, manual data recording, and complex setups, which were time-consuming and prone to human error. The introduction of the ZXFZ-H Generator Rotor Impedance Tester represents a significant technological leap, offering a comprehensive, automated, and highly accurate solution that contrasts sharply with older techniques.

Comparative Analysis: Traditional Methods vs. The ZXFZ-H Tester

Historically, testing a generator rotor required separate devices for measuring AC voltage, current, impedance, and power. Technicians had to manually coordinate these instruments, record readings at various points, and later plot characteristic curves. This process was not only labor-intensive but also limited in precision and data consistency.

In contrast, the ZXFZ-H integrates all these functions into a single, compact unit. Its high-speed microprocessor automatically acquires, measures, displays, and stores all critical parameters—voltage (0-600V), current (0-120A), impedance (0-6kΩ), power (0-72kW), and frequency (45-75Hz)—all with a high accuracy class of 0.2. This eliminates the need for multiple devices and manual data consolidation, drastically reducing testing time and potential for error. Furthermore, while traditional setups often lacked robust on-the-spot data analysis, the ZXFZ-H features a large graphic LCD that automatically resizes and displays the impedance characteristic curve in real-time, a capability absent in conventional approaches.

Key Technical Features and Benefits for Technicians

1.Automation and Versatility: The tester offers both automatic and manual measuring modes. In automatic mode, it streamlines the entire testing process, allowing technicians to initiate a test and obtain a complete set of results and curves without constant intervention. This is a marked improvement over fully manual traditional methods.

2.Data Management and Reporting: A critical advantage over older equipment is the ZXFZ-H's built-in large-capacity memory and RS232 interface. Technicians can save test data directly on the device and upload it to a PC for further analysis and report generation using the provided software. The integrated micro-printer allows for immediate hardcopy reports and curves on-site, enhancing decision-making efficiency.

3.Enhanced Safety and Protection: The unit incorporates a perfect over-voltage and over-current protection function. It intelligently auto-adjusts the protection threshold based on the set test parameters, safeguarding both the tester and the equipment under test. This built-in, adaptive protection is often more sophisticated than what was available with disparate traditional instrument setups.

4.Multi-Functionality: Beyond rotor impedance testing, the ZXFZ-H can perform no-load and short-circuit tests on single-phase transformers, as well as volt-ampere characteristic tests on CTs, PTs, and arc suppressing coils. This consolidates the functionality of several specialized test sets into one device, making it a more versatile and cost-effective tool for the maintenance team.

5.Rugged and Portable Design: Weighing only 5 kg and with compact dimensions (415x225x200 mm), the tester is designed for field use. Its robust construction and wide operating power supply range (160V-280VAC) make it suitable for harsh substation or plant environments, a practical improvement over bulky, lab-grade equipment sometimes used in the past.

Technical Specifications at a Glance

1.Measurement Accuracy: Class 0.2 for all key electrical parameters.

2.Frequency Range: 45-75Hz, covering typical power system variations.

3.Environmental Tolerance: Operates from -5°C to 40°C and at altitudes up to 2500m.

4.Dielectric Strength: Input terminals withstand 2kV RMS to case for 1 minute, ensuring high insulation integrity.

Conclusion

The ZXFZ-H Generator Rotor Impedance Tester is a definitive upgrade in the realm of generator diagnostics. By combining high precision, automation, comprehensive data handling, and multi-functionality in a portable package, it effectively addresses the limitations of traditional testing methodologies. For technicians, this translates to faster, safer, and more reliable assessments of rotor health, ultimately contributing to improved maintenance strategies and enhanced power system stability. Its leading-edge features set a new benchmark for what field technicians should expect from a modern impedance tester.

GDZX is a manufacturer of power detection equipment, offering a diverse range of products with comprehensive models and providing professional technical support. Contact us at +86-27-6552607 or +86-17396104357.Website: http://en.gdzxdl.com/
