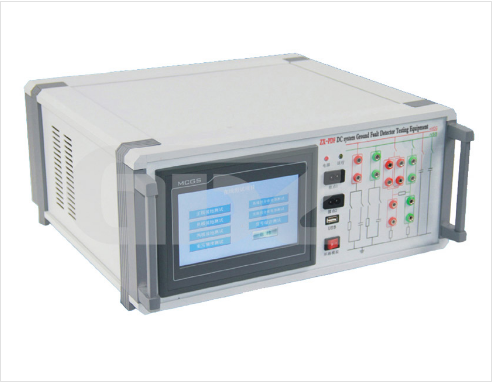

ZX-PDF: Advanced DC Ground Fault Detector Testing

In the realm of power system maintenance, ensuring the reliability of DC control circuits and battery systems is critical. The ground fault detector is a key protective device in these systems, and its accurate operation is paramount. Traditional testing methods often involve cumbersome setups with separate resistors, capacitors, and power supplies, making the process inefficient and potentially inaccurate. The ZX-PDF DC System Ground Fault Detector Testing Equipment represents a significant technological leap, offering a comprehensive, integrated, and highly precise solution.

Comprehensive Testing Capabilities

Unlike basic testers that might only simulate a simple positive or negative ground fault, the ZX-PDF provides a full suite of test functions. It can perform online or offline testing for various grounding supervision devices and locators. Its features include:

1.Multi-Point Ground Simulation: It can simulate not just basic positive and negative ground faults but also more complex two-pole grounding conditions, which are often challenging for simpler testers to replicate.

2.System Calibration & Verification: Functions for testing voltage accuracy and voltage limit alarms ensure the detector's measurement and alarm thresholds are correctly calibrated—a feature often missing in rudimentary equipment.

3.Real-World Condition Simulation: A key advantage over basic testers is its ability to simulate AC grounding and, most importantly, system and branch distributed capacitance. This is crucial because distributed capacitance significantly impacts the behavior of ground faults in real systems, and many detectors are designed to compensate for it. The ZX-PDF can accurately test a detector's performance under these realistic conditions.

4.Advanced Analysis: The inclusion of a signal analysis function and a loop simulation function (testing the device under load current) pushes the ZX-PDF beyond a simple fault simulator into a true performance analyzer, allowing technicians to validate detector operation under dynamic conditions that mimic actual field scenarios.

Technical Precision and Control

The technical specifications of the ZX-PDF highlight its superiority when compared to standard test sets.

1.High-Fidelity DC Source: Its controllable DC source (0-260V, 0.2% regulation fineness) is more than adequate to simulate system voltages found in substations and power plants. This provides a stable and accurate baseline for all tests, unlike using an unregulated external supply.

2.Precision Measurement: With DC voltage measurement accuracy of 0.1% for both system and grounding voltages, it serves as a trusted reference standard. This level of accuracy is essential for verifying the performance of the detector under test.

3.Fine-Grained Simulation: The equipment allows for precise control over insulation resistance (0-256 kΩ in 1 kΩ steps) and distributed capacitance for both system (0-125uF) and branches (0-16uF). This fine resolution enables technicians to methodically test the detector's sensitivity and response curve, identifying the exact fault resistance or capacitance level at which it triggers.

Operational Efficiency

For technicians, the ZX-PDF streamlines the testing workflow. The ability to pre-set 1 to 5 test groups with adjustable intervals and durations allows for automated, repeatable test sequences. This is a major efficiency gain compared to manual, step-by-step testing. The 5.6-inch high-resolution color touchscreen provides an intuitive interface for configuring complex tests and visualizing results clearly.

Conclusion:

The ZX-PDF DC System Ground Fault Detector Testing Equipment is a sophisticated and versatile tool that addresses the limitations of traditional testing methods. By integrating a precision power source, programmable fault simulation (resistive and capacitive), and advanced analysis functions into a single unit, it provides a comprehensive solution for commissioning, maintaining, and troubleshooting ground fault detection systems. For technical personnel, it offers unmatched accuracy, efficiency, and the ability to validate device performance under realistic, complex system conditions, thereby enhancing the overall reliability and safety of DC power systems.
