Advanced Ground Resistance Testing: A Look at the ZXET3007

For technicians in power systems, substation maintenance, and lightning protection, accurately measuring grounding resistance is a critical safety and operational task. The landscape of test equipment has evolved significantly, moving from basic manual methods to sophisticated, automated instruments. The ZXET3007 Double Clamp Grounding Resistance Tester represents a modern solution, incorporating advanced digital processing to enhance accuracy and ease of use in challenging field conditions.

Core Capabilities and Technical Differentiation

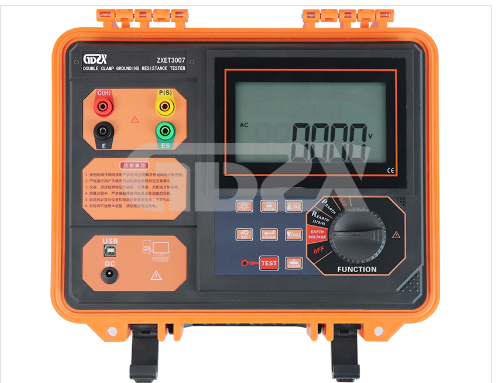

The ZXET3007 is a multi-functional instrument designed for measuring grounding resistance, soil resistivity, ground voltage, and AC voltage. Its defining feature is the use of a precise 4-wire, 3-wire, or simple 2-wire method for resistance measurement, driven by a test current of up to 20mA.

What truly sets it apart from simpler, older testers is its integrated FFT (Fast Fourier Transform) and AFC (Automatic Frequency Control) technology. Many legacy testers operate on a fixed frequency, making them highly susceptible to stray currents and noise present in industrial environments, which can lead to inaccurate readings. The ZXET3007 automatically identifies this interference and selects an optimal test frequency (128Hz, 111Hz, 105Hz, or 94Hz) to minimize its impact. This results in a more reliable and accurate ground resistance value, a significant advantage over devices without such filtering capabilities.

Key Features for the Field Technician

1.Robust Construction: The host is built from injection-molded polypropylene composite, forming a toolbox that can withstand up to 200kg of pressure. This durability is essential for equipment transported and used in rough field environments.

2.Enhanced Measurement Precision: Compared to basic two-pole testers, the ZXET3007's support for the 4-wire (Kelvin) method eliminates the influence of test lead resistance, providing high-precision measurements from as low as 0.000Ω. Its wide automatic ranging capability, from 0.000Ω to 300,000Ω, makes it versatile for both low-resistance applications (like substation grids) and high-resistance soils.

3.Operational Efficiency: The large LCD with a backlight and a progress bar provides clear visual feedback. The ability to store 2000 data sets and upload them via the RS232 interface streamlines data management and reporting, a feature lacking in many older models that require manual logging.

4.Comprehensive Safety and Alerts: The instrument is built to high safety standards (IEC61010-1, CAT III 300V) and includes crucial alert functions. It warns of high interference ("NOISE"), low battery, and can be set to audibly alarm if a measurement exceeds a preset threshold.

Comparison with Common Alternatives

1.vs. Simple Clamp-On Meters: While clamp-on testers offer speed for measuring grounded grid resistance without stakes, they are ineffective for isolated rods or for measuring soil resistivity. The ZXET3007, with its full set of stakes and wires, provides a more fundamental and versatile measurement.

2.vs. Traditional 3-Pole Fall-of-Potential Testers: Older manual testers require the technician to adjust the potential stake multiple times and plot a curve to find the true resistance. The ZXET3007 automates this entire process, providing a direct, digitally-processed reading in approximately 7 seconds, drastically reducing measurement time and potential for operator error.

Conclusion：

For technical personnel, the choice of test equipment directly impacts the reliability of data and the safety of electrical systems. The ZXET3007 Grounding Resistance Tester positions itself as a superior modern tool compared to its predecessors. Its combination of advanced noise rejection through FFT/AFC, robust construction, high precision across a wide range, and comprehensive data handling features makes it a highly capable and efficient instrument for ensuring the integrity of grounding systems in diverse and electrically noisy environments.
