Advancing Ground Resistance Testing: ZXET3005 Technical Analysis

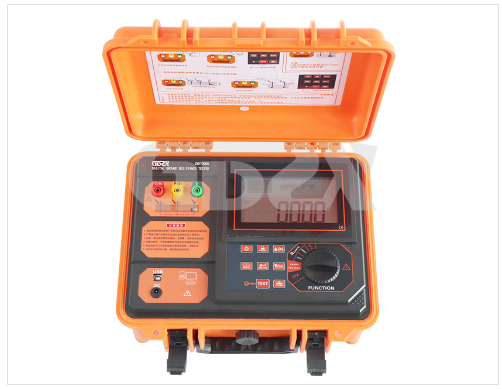

For technicians in power, telecommunications, and lightning protection, accurate ground resistance measurement is critical for system safety and compliance. The ZXET3005 Digital Ground Resistance Tester represents a significant evolution from traditional testers, integrating modern technologies to address common field challenges.

Key Innovations and Technical Comparison

Traditional ground testers often struggle with environmental noise and soil variability, leading to inconsistent readings. The ZXET3005 distinguishes itself through several key features:

1.Enhanced Anti-Interference Capability:

Technology: It employs FFT (Fast Fourier Transform) and AFC (Automatic Frequency Control). This allows the instrument to automatically select an optimal test frequency (128Hz/111Hz/105Hz/94Hz) that avoids dominant powerline noise (50/60Hz).

Comparison: Unlike simpler meters that provide unstable readings in electrically noisy environments (e.g., near substations), the ZXET3005 ensures measurement consistency. The "NOISE" indicator proactively alerts the user to interference levels above 5V.

2.Improved Test Signal & Safety:

Specification: It features a test current of up to 20mA and an open-circuit voltage of 40V AC.

Comparison: While some high-power testers use higher currents for very low-resistance measurements, the ZXET3005's 20mA current is sufficient for most applications while enhancing safety and compliance with modern standards like those for meteorological lightning protection systems.

3.Measurement Versatility and Precision:

Functions: It measures ground resistance, ground voltage, and low-value loop resistance.

Methods: It supports both the precision 3-wire method (using 5m, 10m, and 15m test leads) for accurate soil resistance measurement and a simple 2-wire method for quick checks.

Performance: With a wide range of 0.000Ω to 3000Ω and a high resolution of 0.001Ω in the lower ranges, it offers precision comparable to more expensive benchtop instruments. Its accuracy of ±2% rdg ± 0.05Ω (0-30Ω) is robust for critical low-resistance applications.

Technical Highlights for the Field Technician

1.Robust Design: The toolbox design, rated to withstand 200kg, is a practical feature for demanding site conditions, offering superior protection compared to standard carrying cases.

2.Efficiency: The instrument provides rapid measurements (ground voltage: ~2/sec; resistance: ~7 sec) and can perform over 5000 tests on a single charge, increasing fieldwork productivity.

3.Data Management: The inclusion of a RS232 interface and storage for 2000 data sets facilitates detailed record-keeping and reporting, a step up from basic testers with no data logging.

4.Safety Compliance: With overload protection (AC-280V/3s), high withstanding voltage (AC 3700V), and compliance with IEC61010-1 (CAT III 300V), it is built for safe operation in industrial electrical environments.

Conclusion:

The ZXET3005 is not merely an incremental update but a thoughtfully engineered tool that addresses the core challenges of ground resistance testing. By prioritizing anti-interference, measurement accuracy, and field durability, it offers a technically superior and more reliable alternative to previous generation testers. For technicians requiring dependable data for safety audits, fault diagnosis, and compliance verification, the ZXET3005 establishes a new benchmark in its class.
