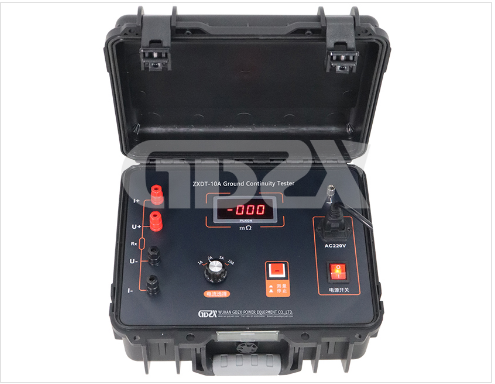

ZXDT-10A: Reliable Ground Continuity Testing
In electrical systems, the integrity of the ground connection is non-negotiable for safety. The ground down lead, which connects equipment to the earth mat, is a critical point of failure. Over time, corrosion or damage can increase its resistance, compromising the entire grounding system. The ZXDT-10A Ground Continuity Tester is engineered specifically to verify the electrical integrity of these connections accurately and efficiently.
The Critical Need for Accurate Testing
Traditional methods for checking ground continuity often involve low-current testers or simple multimeters. While these can indicate a connection, they fail to replicate the real-world conditions a ground path might experience during a fault. A low-current test might show continuity through a corroded, high-resistance joint that would overheat and fail under a high fault current. The ZXDT-10A addresses this flaw by applying a significant 10A current, providing a true assessment of the connection's health under a realistic load.
Key Features of the ZXDT-10A
The ZXDT-10A distinguishes itself through a set of features designed for precision and ease of use in the field:
1.10A Constant Current Output: This is its core advantage. By outputting a high, stable 10A current, it ensures strong signal penetration, minimizing the impact of ambient electrical noise and providing a reliable measurement of resistance at the connection point.
2.High-Speed Operation: Unlike testers that require lengthy charge-discharge cycles, the ZXDT-10A performs a measurement in approximately 2 seconds. This speed enables rapid testing of multiple points in a system.
3.Simplicity and Reliability: With a one-button operation, technicians can obtain results with minimal steps. Its robust, unified chassis construction makes it highly shock-resistant, suitable for demanding site conditions.
4.DC Resistance Measurement: It provides a direct and accurate DC resistance reading from 1 to 2000 mΩ, which is the critical parameter for evaluating the quality of the ground connection.
Technical Comparison at a Glance
Feature | Traditional Low-Current Tester/Multimeter | ZXDT-10A Tester |
Test Current | Low (typically <1A) | High (10A Constant) |
Real-World Simulation | Poor | Excellent |
Anti-Interference | Weak, prone to false readings | Strong |
Measurement Speed | Slow (may require stabilization) | Fast (~2 seconds) |
Operation | May require manual ranging/calibration | Fully Automatic, One-Button |
Primary Use Case | Basic continuity check | Accurate resistance measurement of connections |
Technical Specifications Summary
Measurement Range: 1 – 2000 mΩ
Output Current: 10A DC
Accuracy: ±(0.5% + 2 digits)
Measurement Radius: 50 meters
Power Supply: AC 220V
Display: Nixie tube display for clear readability
Conclusion：
For technicians tasked with ensuring electrical safety, the ZXDT-10A Ground Continuity Tester is a superior tool compared to traditional methods. Its ability to force a high 10A current through a ground connection provides a truthful assessment of its condition, identifying high-resistance faults that low-current testers would miss. Combined with its speed, robustness, and simple operation, the ZXDT-10A is an essential instrument for the reliable verification of grounding system integrity, ensuring compliance with power regulations and, most importantly, personnel safety.
