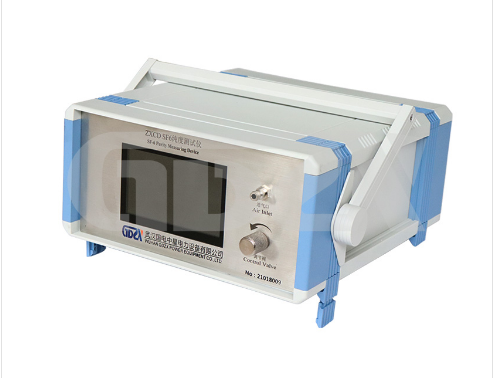

ZXCD SF6 Purity Analyzer: Technical Overview

The ZXCD SF6 Purity Analyzer is a portable, high-precision instrument designed for the rapid assessment of SF6 gas purity in electrical insulation applications. Engineered for efficiency and reliability in field and lab environments, it combines swift operation with user-centric features tailored for technical personnel.

Immediate Operation and Portability
Upon powering the device, the analyzer requires no warm-up period, delivering immediate purity readings. Weighing only 5 kg with compact dimensions (280 × 150 × 300 mm), it is highly portable and suitable for on-site testing.

Key Technical Features

1.Self-Calibration: The integrated sensor automatically calibrates zero points, eliminating errors caused by drift and ensuring consistent measurement accuracy.

2.Rapid Measurement: Each purity test is completed within approximately 2 minutes, conserving gas and improving workflow efficiency.

3.Secure Sampling: Equipped with an imported self-locking joint, the analyzer prevents gas leakage and ensures safe, reliable operation.

4.Data Management: Capable of storing up to 1000 test records, the device supports data integrity and traceability. A built-in USB interface allows data export to PCs for further analysis via dedicated software.

5.Intuitive Display: A 5-inch touch LCD presents real-time data including purity value, gas flow, ambient temperature, humidity, time, and date.

6.Extended Battery Life: Powered by a high-capacity rechargeable lithium-ion battery, the analyzer operates for over 10 hours on a single charge, with an 8-hour charging time.

Technical Specifications

1.Purity Measurement:
Range: 0–100%
Accuracy: ±0.5%
Response Time: <2 minutes

2.Intake Pressure: 0–1.0 MPa

3.Flow Rate: 0.01–0.5 L/min

4.Environmental Tolerance:
Temperature: –40 °C to +60 °C (operating: –30 °C to +70 °C)
Humidity: 0–100% RH

5.Power Supply: AC 100–240V, 50/60 Hz, with built-in battery support

6.Weight: 5 kg

Conclusion
The ZXCD SF6 Purity Analyzer offers a reliable, efficient, and user-friendly solution for SF6 gas monitoring. Its combination of fast response, automatic calibration, robust data storage, and portability makes it an essential tool for technicians involved in maintenance and diagnostics of gas-insulated electrical systems.
