ntelligent Battery Health Tester (Model ZXXDF-D4030A)

Introduction

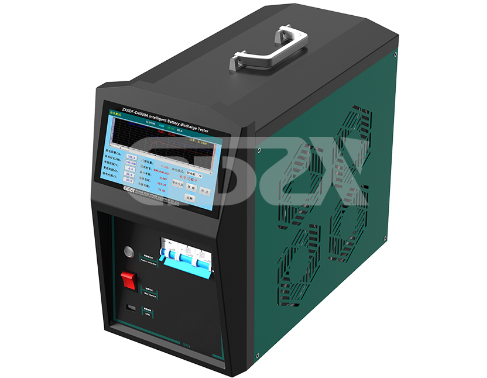

      In the realm of battery maintenance and validation, precision discharge testing is paramount for assessing capacity, health, and reliability. The ZXXDF-D4030A Intelligent Battery Discharge Tester emerges as a sophisticated tool designed for technicians and engineers working with critical DC backup systems, such as those in telecommunications, UPS, and industrial power applications. This article provides a technical overview of its capabilities, operational features, and key specifications.

Core Functionality and Design Philosophy
The D4030A is engineered for safety, accuracy, and user-centric operation. Its fundamental purpose is to perform controlled discharge tests on battery strings, measuring actual capacity and identifying weak cells—a crucial process for predictive maintenance and system reliability.

Key Technical Features and Advantages

1.Enhanced Safety & Durability: Utilizing a PTC (Positive Temperature Coefficient) ceramic resistance as the load, the tester eliminates the "hot-red" phenomenon common in traditional resistive loads. This design ensures safer operation, reduces thermal stress, and significantly extends the instrument's service life.

2.Intelligent Control System: At its core is an ARM-based single-chip microcontroller. This provides robust, reliable control for all discharge parameters and data logging functions. The system allows for flexible configuration of stop conditions, including:

Final discharge current

Total discharge time

Overall battery string protection voltage

Individual cell protection voltage (monitoring the weakest unit)

3.Comprehensive Data Acquisition & Display: A large LCD touchscreen facilitates intuitive menu navigation and real-time monitoring. The unit continuously samples and records the entire discharge profile at a 10-second interval, capturing:

Total String Capacity (Ah)

Overall Voltage

Discharge Current

Voltage of the Weakest Single Cell(s)
Data is automatically saved upon test completion.

4.Post-Test Data Analysis: A standout feature is the integrated data export. Test records can be transferred via the built-in USB or RS232 interface to a U-disk. Using the accompanying PC software, technicians can generate detailed charts and reports for in-depth analysis, trend observation, and compliance documentation.

5.Multi-System Compatibility: The tester is versatile, supporting standard battery string voltages: DC 48V, 110V, and 220V. This makes it a single solution for many common industrial and telecom battery banks.

Technical Specifications Summary

Application Scenarios for Technical Personnel

1.Preventive Maintenance: Regularly verify the actual capacity of UPS or backup battery strings against their rated specifications.

2.Fault Diagnosis: Identify underperforming or failing individual cells within a string by analyzing voltage deviations during discharge.

3.Commissioning Tests: Validate performance of new battery installations.

4.Performance Logging: Create historical data records for battery lifecycle management and replacement forecasting.

Conclusion
The ZXXDF-D4030A Intelligent Battery Discharge Tester integrates advanced safety components, precise digital control, and comprehensive data handling into a robust platform. For technical professionals, its value lies in its accuracy, the actionable data it provides, and its role in transitioning from time-based to condition-based battery maintenance. By enabling detailed performance analysis, it serves as a critical instrument for ensuring the reliability of essential DC power systems.
