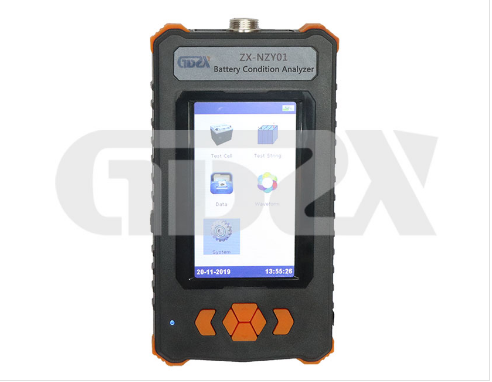

ZX-NZY01 Battery Condition Analyzer: Technical Overview and Operational Insights

Introduction

The ZX-NZY01 Battery Condition Analyzer represents a significant tool for maintenance technicians and engineers responsible for the reliability of battery banks in critical applications. This device provides a rapid, accurate, and safe method for assessing the health of individual lead-acid or nickel-cadmium cells or strings by measuring two key parameters: internal resistance and conductance. Its design emphasizes field practicality, data management, and operational efficiency.

Core Technology and Measurement Principle

At the heart of the ZX-NZY01's functionality is its advanced AC signal discharge measurement method. Unlike simple voltage checks, this technique injects a low-level AC signal into the battery to measure its internal resistance (in mΩ) or its inverse, conductance (in Siemens). These values are direct indicators of a battery's plate condition and ability to deliver current. A rising internal resistance or decreasing conductance often signifies degradation, sulfation, or connection problems, allowing for proactive maintenance before a failure occurs.

The device intelligently combines both measurement modes in one unit, with automatic switching, providing a comprehensive view of battery health from a single test.

Key Technical Specifications and Features

1.Broad Compatibility & Range: Capable of testing single cells from 1.2V to 12V (and custom types up to 16V), with a capacity range extending up to 6000Ah, making it suitable for a vast array of applications, from telecommunications to UPS systems and industrial power backups.

2.High Precision: Offers measurement accuracy of 1% for resistance/conductance and 0.15% for voltage, with a voltmeter resolution of 1mV. This ensures reliable, repeatable data for trend analysis.

3.Efficient Operation: Features a 4.3-inch TFT touchscreen with alternative keypad control. Its "set once, test multiple" function allows for rapid sequential testing of batteries in a string, saving considerable time.

4.Robust Data Handling: With internal storage for 100,000 test records and data export via a standard micro-USB port to dedicated PC management software, the analyzer supports detailed historical tracking, reporting, and condition-based maintenance planning.

5.Field-Ready Design: Powered by a long-lasting 4000mAh Li-ion battery (8-12 hours of operation), it is housed in acid-resistant ABS plastic with a santoprene overmold for durability. It includes essential protections like auto-reset over-voltage disconnect and reverse polarity protection.

6.Programmable Alerts: Technicians can set custom alarm thresholds for low voltage and high internal resistance, enabling immediate on-site identification of faulty cells.

Application for Technical Personnel

For technicians, the ZX-NZY01 streamlines the battery maintenance workflow:

1.Preventive Maintenance: Regularly profile all cells in a bank to establish baseline resistance/conductance values and monitor trends over time.

2.Rapid Diagnostics: Quickly identify the weakest cell(s) in a string during routine checks or troubleshooting, often in seconds per battery.

3.Acceptance Testing: Verify the health and specification compliance of new batteries post-installation.

4.Data-Driven Decisions: Use exported data and software reports to justify battery replacements and demonstrate system health, moving from calendar-based to condition-based maintenance.

Conclusion

The ZX-NZY01 Battery Condition Analyzer is a powerful, precise, and user-engineered instrument that translates complex battery electrochemistry into actionable field data. By focusing on the critical parameters of internal resistance and conductance, it empowers technicians to move beyond voltage-only assessments, enabling more reliable, efficient, and predictive maintenance of critical battery assets. Its robust construction, extensive memory, and flexible connectivity make it a valuable tool for any professional tasked with ensuring battery system reliability.
