ZXQ Discharge Protective Ball Gap: A Technical Overview for High Voltage Testing

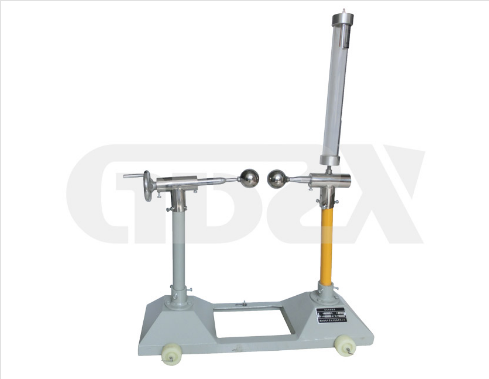

The ZXQ Discharge Protective Ball Gap, often referred to as the Q Series tester, is a fundamental and precision instrument used for overvoltage protection and measurement in high-voltage AC testing applications. It operates as a simple yet highly effective set of spherical electrodes, forming a calibrated spark gap. When integrated into a complete test system—comprising a high-voltage test transformer, control console, voltage regulator, and appropriate current-limiting resistors—it serves as a reliable benchmark for voltage measurement and a protective device for other equipment.

Operating Principle
The core function of the ball gap is based on the principle of atmospheric breakdown between two identical spherical electrodes at a predefined spacing. For a given air density, electrode diameter, and gap distance, the disruptive discharge voltage (sparkover voltage) is highly predictable and consistent. In practice, the gap is set to spark over at a voltage slightly above the desired test voltage for the device under test. This provides a safeguard: if an unintended overvoltage occurs, the gap discharges, shunting the excessive energy and protecting the test object and transformer.

Key Features & Advantages

1.Dual Functionality: It acts primarily as an overvoltage protection device for high-voltage test circuits and can also be used as a secondary standard for measuring peak values of power frequency and lightning impulse voltages, thanks to its high-precision calibration.

2.Robust and Simple Design: The design philosophy emphasizes reliability. Its straightforward mechanical structure, devoid of complex electronics, ensures durability and minimal maintenance in high-field environments.

3.Portability: Characterized by its small size and light weight, the unit is easy to transport and set up in various laboratory or field testing locations.

4.Flexible Installation: It supports both vertical and horizontal mounting configurations, allowing for adaptability to different laboratory layouts and test arrangements as per standard guidelines.

Technical Specifications
The series is categorized by the diameter of its spherical electrodes, which directly correlates with its voltage handling capability and measurement accuracy range.

Application Notes for Technicians

1.Calibration & Standards: Accurate use requires reference to standard gap-spacing-to-voltage tables (e.g., IEC 60052, IEEE Std 4), which account for atmospheric conditions (pressure, temperature, humidity). Corrections must be applied for deviations from standard ambient conditions.

2.System Integration: The ball gap must be used in series with protective resistors to damp the discharge current, preventing damage to the test transformer and limiting electromagnetic interference.

3.Installation: Ensure clearances to surrounding earthed or live objects are significantly larger than the gap spacing to prevent unwanted flashovers. The mounting orientation (vertical/horizontal) must be consistent with the calibration data used.

4.Safety: As with all high-voltage equipment, strict safety protocols must be followed. The ball gap should be housed within an interlocked safety cage, and all operations must comply with local electrical safety regulations.

In summary, the ZXQ Q Series Discharge Protective Ball Gap remains an indispensable, reliable, and accurate component in the high-voltage test engineer's toolkit. Its simplicity is its greatest strength, providing a direct, unambiguous method for overvoltage protection and voltage verification in power frequency testing setups.
