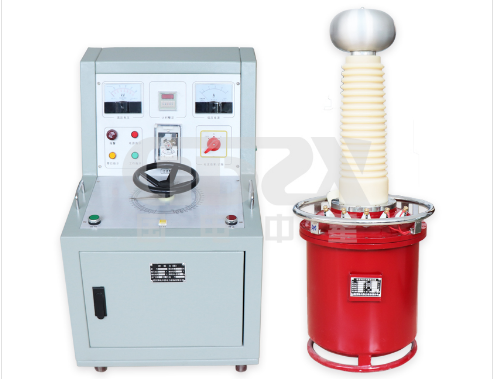

YDQ (J.Z) Gas Testing Transformer: Technical Overview and Field Application

The YDQ (J.Z) Gas Testing Transformer represents a significant advancement in high-voltage insulation testing, utilizing modern SF6 gas insulation technology. Designed for evaluating the dielectric strength of various electrical equipment, it is particularly well-suited for field applications due to its portability, reliability, and maintenance-free operation.

Key Features

1.Portability & Compact Design – The unit is significantly lighter (40–65%) compared to conventional oil-filled transformers of equivalent capacity, making it ideal for on-site testing and transportation.

2.Clean & Maintenance-Free – Unlike oil-type transformers, the SF6 gas insulation eliminates oil leakage risks, reduces environmental contamination, and requires minimal maintenance.

3.All-Weather Operation – Performance remains stable across varying climatic conditions, allowing for continuous testing without interruptions.

4.Superior Dielectric Performance – SF6 gas provides higher dielectric strength compared to oil, with minimal corona effect, ensuring accurate and reliable test results.

Technical Specifications Overview

The YDQ series offers a wide range of models with capacities from 1.5 kVA to 50 kVA and output voltages of 50 kV, 100 kV, 150 kV, and 200 kV. Key parameters across models include:

1.Low Voltage Input: 200 V or 400 V

2.High Voltage Output: Up to 200 kV

3.Impedance Voltage: Typically ≤ 10%

4.No-Load Current: < 4%

5.Temperature Rise: Within limits over 6-minute operation

6.Weight & Dimensions: Optimized for field mobility, with weights ranging from 30 kg to 140 kg depending on model.

Example models include:

1.YDQ-10/50: 10 kVA, 50 kV output, 60 kg

2.YDQ-30/100: 30 kVA, 100 kV output, 110 kg

3.YDQ-50/150: 50 kVA, 150 kV output, 140 kg

Field Application Advantages

The YDQ transformer’s design emphasizes ease of use in outdoor and industrial environments. Its gas-insulated construction ensures safety and durability, while the compact form factor allows for testing in confined or remote locations. The availability of manuals, video guides, and certification documents further supports technicians in deployment and compliance.

Conclusion

With its robust SF6 gas insulation, lightweight design, and adaptable voltage ranges, the YDQ (J.Z) Gas Testing Transformer is an efficient and eco-friendly solution for field dielectric testing. It meets modern demands for reliability, safety, and operational flexibility, making it a preferred choice for electrical testing professionals.
