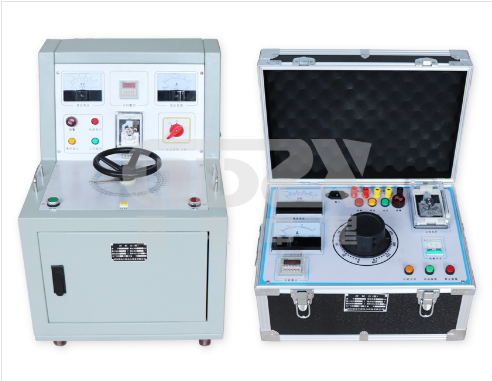

XC/TC Pointer Type Voltage Controller for HV Test
The XC/TC series Pointer Type Voltage Controllers are specialized control units designed to operate in conjunction with AC/DC high-voltage testing transformers. These devices provide precise voltage regulation and system protection during high-voltage (HV) testing applications, ensuring safety, accuracy, and reliability in demanding electrical testing environments.
Key Features & Technical Advantages
1.Comprehensive Monitoring – The controller monitors both the high-voltage side output and the low-voltage side current. It includes indicators for zero position, operational status, and timing functions, providing clear real-time feedback to the operator.
2.Integrated Protection Mechanisms – Equipped with over-current protection and zero-starting protection, the system prevents operational hazards and enhances equipment safety by interrupting power under fault conditions.
3.Advanced Timing Relay – Incorporates a new type of timing relay with a wider time range, allowing flexible and accurate test duration settings suitable for various standardized testing procedures.
4.High-Precision Current Relay – Utilizes the latest current relay technology for improved accuracy, reliability, and safety in current sensing and interruption.
5.Compact and Robust Design – Engineered with a rational structure, the controller is both compact and lightweight, facilitating ease of installation, portability, and efficient use of space in test labs or field applications.
Product Specifications Overview
Below is a summary of available models with key electrical and mechanical parameters:
Model | Capacity (kVA) | Power Supply | Output Voltage (V) | Rated Current (A) | Operating Mode | Estimated Weight (kg) |
XC-2/220 | 2 | 1 Phase, 220V, 50Hz | 0–220 | 10 | Manual | 14 |
XC-3/220 | 3 | 1 Phase, 220V, 50Hz | 0–220 | 15 | Manual | 16 |
XC-5/220 | 5 | 1 Phase, 220V, 50Hz | 0–220 | 25 | Manual | 18 |
TC-10/220 | 10 | 1 Phase, 220V, 50Hz | 0–220 | 50 | Manual | 80 |
TC-15/400 | 15 | 2 Phase, 380V, 50Hz | 0–430 | 37.5 | Manual | 90 |
TC-20/400 | 20 | 2 Phase, 380V, 50Hz | 0–430 | 50 | Manual | 100 |
TC-25/400 | 25 | 2 Phase, 380V, 50Hz | 0–430 | 62.5 | Manual | 120 |
TC-30/400 | 30 | 2 Phase, 380V, 50Hz | 0–430 | 75 | Manual | 140 |
TC-50/400 | 50 | 2 Phase, 380V, 50Hz | 0–430 | 125 | Manual/Auto | 160 |
TC-100/400 | 100 | 2 Phase, 380V, 50Hz | 0–430 | 250 | Manual/Auto | 50 |
TC-150/3000 | 150 | 2 Phase, 380V, 50Hz | 0–430 | 50 | Manual/Auto | 50 |
TC-200/3000 | 200 | 2 Phase, 380V, 50Hz | 0–430 | 65 | Auto | 50 |
TC-250/3000 | 250 | 2 Phase, 380V, 50Hz | 0–430 | 84 | Auto | 50 |
TC-300/3000 | 300 | 2 Phase, 380V, 50Hz | 0–430 | 100 | Auto | 50 |
Note: Customized configurations can be developed based on specific customer requirements.
Application Notes for Technical Personnel
When integrating the XC/TC controller into a high-voltage test setup, ensure proper grounding, verify voltage and phase compatibility with the connected transformer, and adhere to all operational guidelines to maintain system integrity and operator safety. The manual/auto mode selection allows adaptability to both routine verification tests and automated sequence testing.
